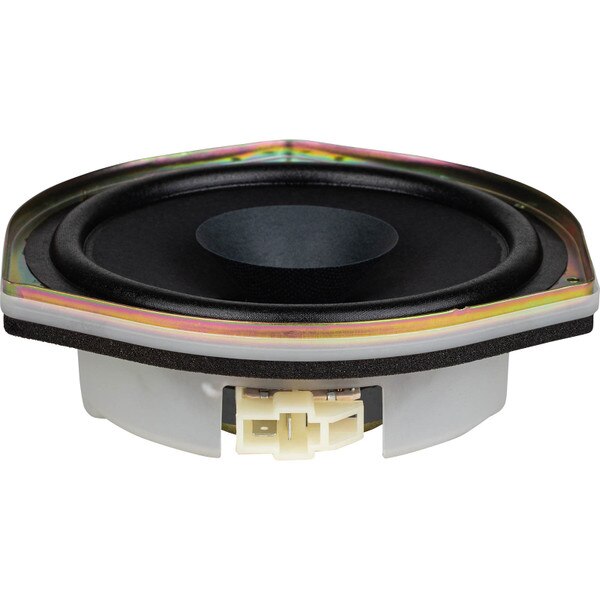

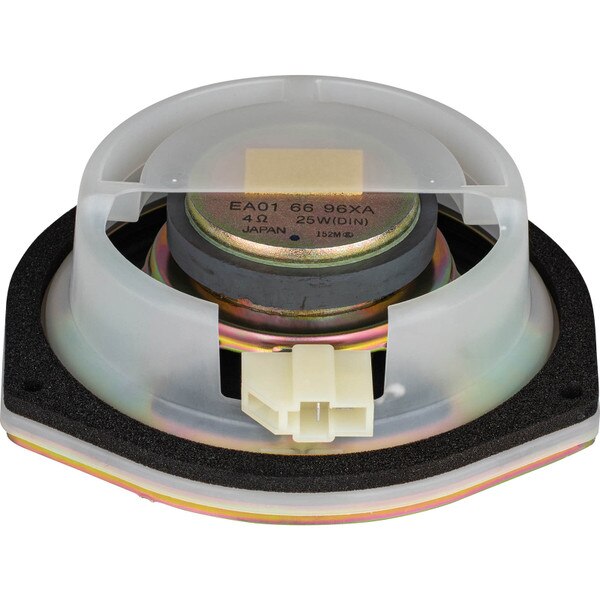

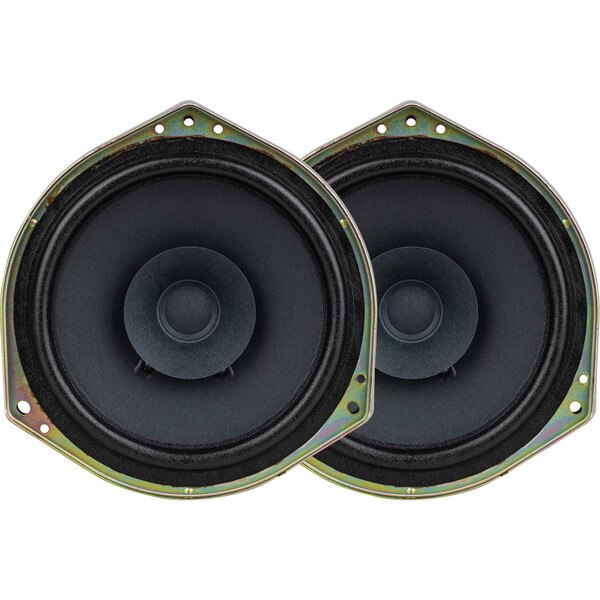

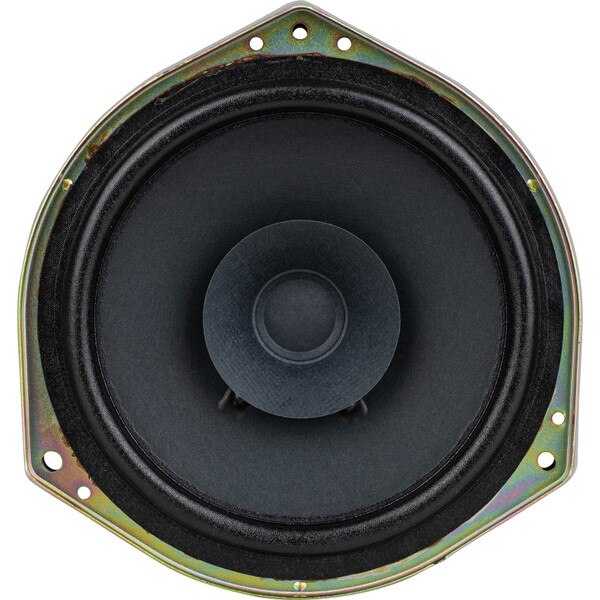

CLEARANCE EKX16E101A 6" Extended Range Speaker - Pair 4 Ohm

Factory BuyoutsPart # 299-4354
Model: EKX16E101A

The EKX16E101A 6" Extended Range Speaker Pair utilizes paper cones, cloth surrounds and whizzer cones, making these a great choice for the hobbyist or tinkerer.

Key Features

  • Paper cone for natural tone
  • Cloth surround for extended life
  • Whizzer cone negates the need for a tweeter of complicated crossovers
Get Notified When Available

We'll send you an email when EKX16E101A 6" Extended Range Speaker - Pair 4 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

EKX16E101A 6" Extended Range Speaker - Pair 4 Ohm

The EKX16E101A 6" Extended Range Speaker Pair utilizes paper cones, cloth surrounds and whizzer cones, making these a great choice for the hobbyist or tinkerer.

Product Details

BrandFactory Buyouts
ModelEKX16E101A
Part Number299-4354
UPC848864074191
Unit of MeasureEach
Weight2.7

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter6.125
Power Handling (RMS)25 Watts
Power Handling (MAX)50 Watts
Impedance4Ω
Frequency Response100 to 9,000Hz
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)93.84Hz
DC Resistance (Re)3.692Ω
Voice Coil Inductance (Le)0.1278mH
Mechanical Q (Qms)6.643
Electromagnetic Q (Qes)2.559
Total Q (Qts)1.847
Compliance Equivalent Volume (Vas)0.2178ft³
Diaphragm Mass Inc. Airload (Mms)9.25g
Maximum Linear Excursion (Xmax)1.5mm
Surface Area of Cone (Sd)118.8cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.5"
Baffle Cutout Diameter5.25"
Depth2"
# Mounting Holes3
