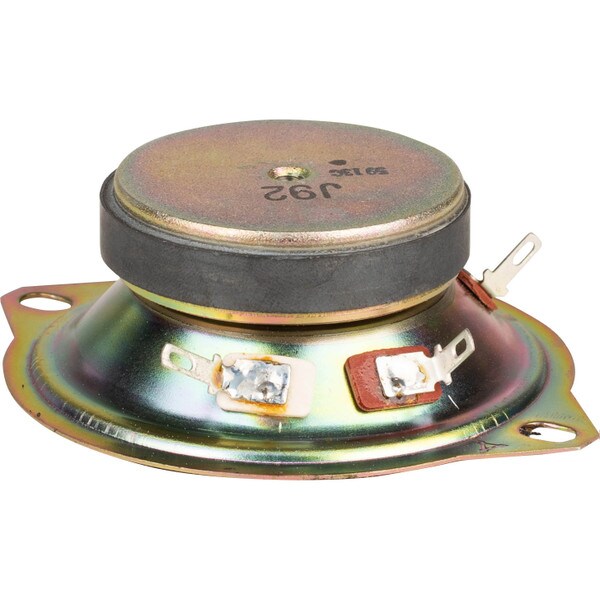

The EAS65PHJ92 2-3/4" Paper Cone Tweeter is a great choice as a replacement in older vintage systems, or as a budget tweeter in a new DIY build.

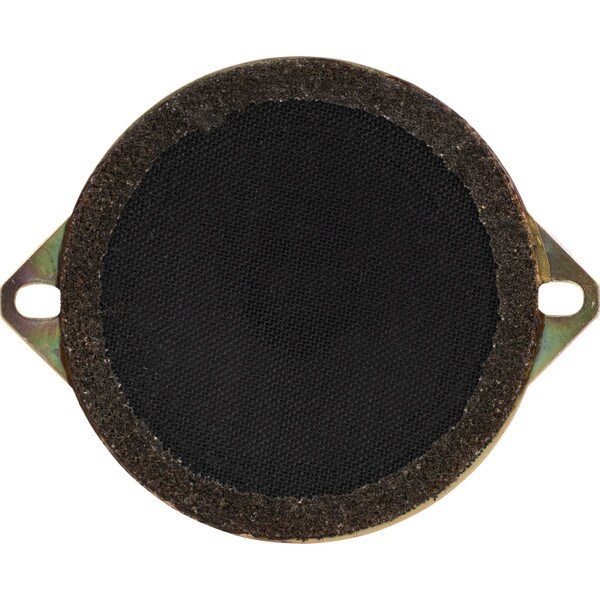

The EAS65PHJ92 2-3/4" Paper Cone Tweeter is a great choice as a replacement in older vintage systems, or as a budget tweeter in a new DIY build. The protective mesh cover keeps away prying hands and helps keep dust off of the cone.
Product Details | |
|---|---|
| Brand | Factory Buyouts |
| Model | EAS65PHJ92 |
| Part Number | 299-4268 |
| UPC | 848864073798 |
| Unit of Measure | Each |
| Weight | 0.25 |
Product Specifications | |
|---|---|
| Bolt Circle Diameter | 2.875 |
| Power Handling (RMS) | 10 Watts |
| Power Handling (MAX) | 20 Watts |
| Impedance | 4Ω |
| Frequency Response | 1,500 to 20,000Hz |
| Sensitivity | 90dB 2.83V/1m |
| Voice Coil Diameter | 0.5" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 1000Hz |
| DC Resistance (Re) | 3.739Ω |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Voice Coil Wire Material | CCA |
| Voice Coil Former | Paper |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 2.75" |
| Baffle Cutout Diameter | 2.5" |
| # Mounting Holes | 2 |
