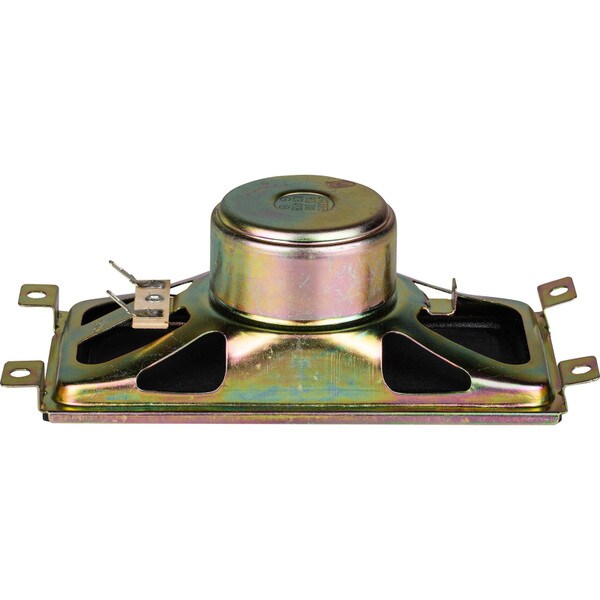

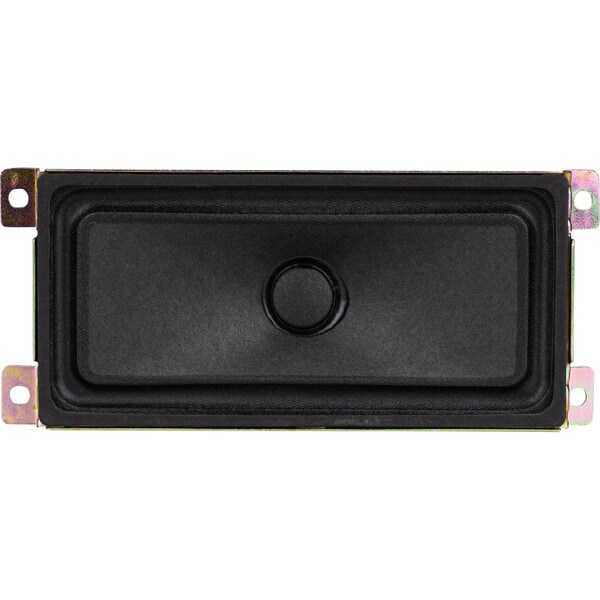

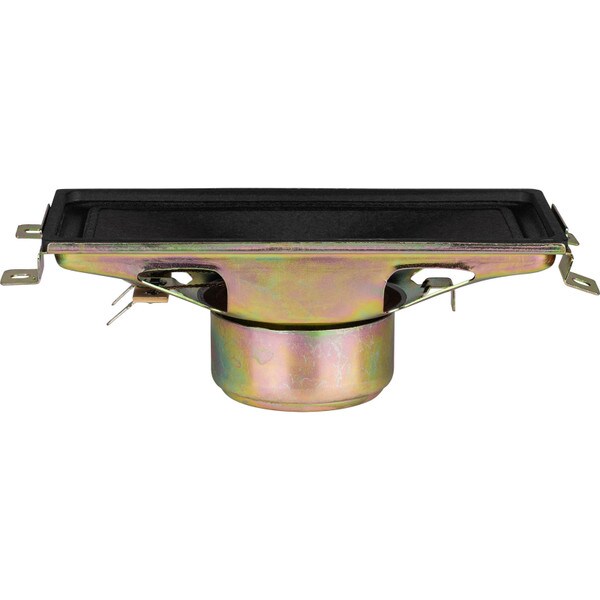

The EAS15SO359 2-1/2" X 5-1/4" Rectangular Full-Range Speaker has an eye opening appearance with it's sharp corners and rectangular design.
The EAS15SO359 2-1/2" X 5-1/4" Rectangular Full-Range Speaker has an eye opening appearance with it's sharp corners and rectangular design. A paper cone and cloth surround give this speaker a smooth response along with is unique shape that make it a great choice for custom installs in tight spaces.
Product Details | |
|---|---|
| Brand | Factory Buyouts |
| Model | EAS15SO359 |
| Part Number | 299-4352 |
| UPC | 848864074184 |
| Unit of Measure | Each |
| Weight | 0.4 |
Product Specifications | |
|---|---|
| Power Handling (RMS) | 10 Watts |
| Power Handling (MAX) | 20 Watts |
| Impedance | 8Ω |
| Frequency Response | 175 to 15,000Hz |
| Sensitivity | 84.26dB 2.83V/1m |
| Voice Coil Diameter | 0.5" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 175.7Hz |
| DC Resistance (Re) | 7.342Ω |
| Voice Coil Inductance (Le) | 0.2361mH |
| Mechanical Q (Qms) | 4.42 |
| Electromagnetic Q (Qes) | 5.297 |
| Total Q (Qts) | 2.409 |
| Compliance Equivalent Volume (Vas) | 0.059ft³ |
| Diaphragm Mass Inc. Airload (Mms) | 2.102g |
| Maximum Linear Excursion (Xmax) | 1mm |
| Surface Area of Cone (Sd) | 55.42cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Cloth |
| Voice Coil Wire Material | CCA |
| Voice Coil Former | Paper |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Depth | 2" |
| # Mounting Holes | 4 |
