  • EAS15S03F9 2-1/2" X 5-1/4" Full Range Speaker 8 Ohm

BUYOUT EAS15S03F9 2-1/2" X 5-1/4" Full Range Speaker 8 Ohm

Factory BuyoutsPart # 299-4208
Model: EAS15S03F9
The EAS15S03F9 2-1/2" X 5-1/4" Full Range Speaker uses a paper cone and foam surround to produce natural full-range response from 170 to 15,000 Hz. Thanks to the powerful shielded motor this driver has excellent efficiency for its size.
BUYOUT $1.44
MSRP: $2.88
Save $1.44 (50%)
Bulk Pricing
13534 In Stock
Get Notified When Available

We'll send you an email when EAS15S03F9 2-1/2" X 5-1/4" Full Range Speaker 8 Ohm is back in stock or available for preorder.

Order in the next 11 hr 50 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

EAS15S03F9 2-1/2" X 5-1/4" Full Range Speaker 8 Ohm

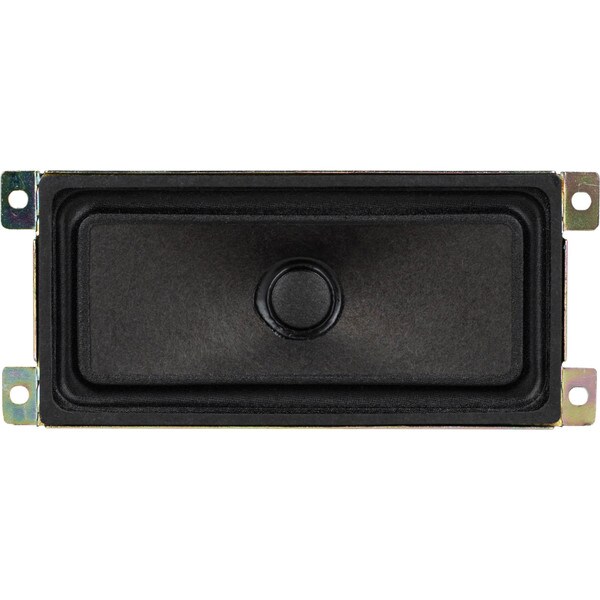

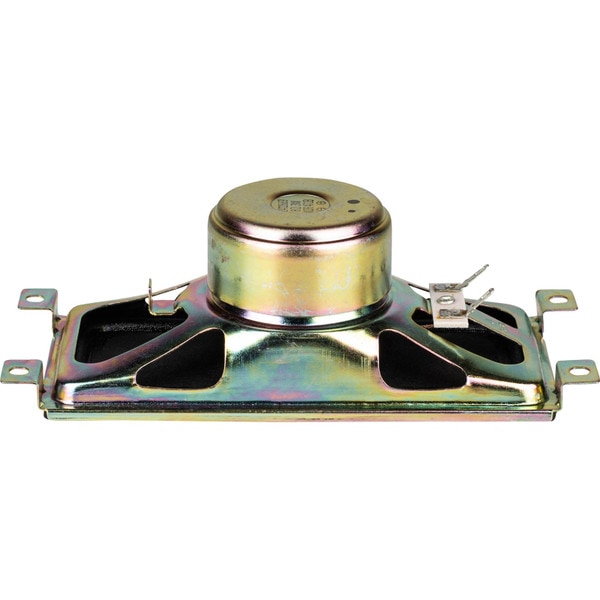

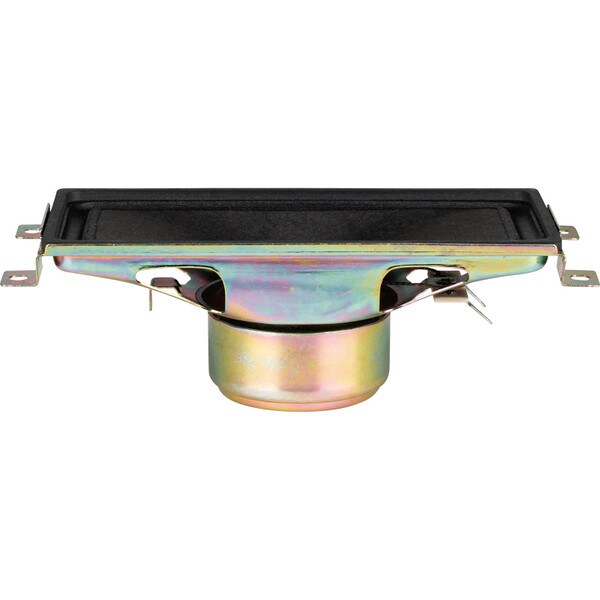

The EAS15S03F9 2-1/2" X 5-1/4" Full Range Speaker has a 5-1/4"" x 2-1/2" mounting flange allowing it to easily fit in slim speaker designs. This driver uses a fully shielded motor for use near devices that are sensitive to stray magnetic fields. With nearly 84 dB efficiency, this driver can produce an impressive amount of output for its size making it perfect for designs such as speaker bars, TV speakers, and portable Bluetooth enabled projects.

Product Details

BrandCoast Buyouts
ModelEAS15S03F9
Part Number299-4208
UPC848864073514
Unit of MeasureEach
Weight0.57

Product Specifications

Power Handling (RMS)3 Watts
Power Handling (MAX)6 Watts
Impedance8Ω
Frequency Response170 to 15,000Hz
Sensitivity83.78dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)171.5Hz
DC Resistance (Re)7.417Ω
Voice Coil Inductance (Le)0.2326mH
Mechanical Q (Qms)3.655
Electromagnetic Q (Qes)5.216
Total Q (Qts)2.149
Compliance Equivalent Volume (Vas)0.056ft³
Diaphragm Mass Inc. Airload (Mms)2.113g
Maximum Linear Excursion (Xmax)0.55mm
Surface Area of Cone (Sd)60cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Depth1.875"
# Mounting Holes4
