Model: EAS12D128E

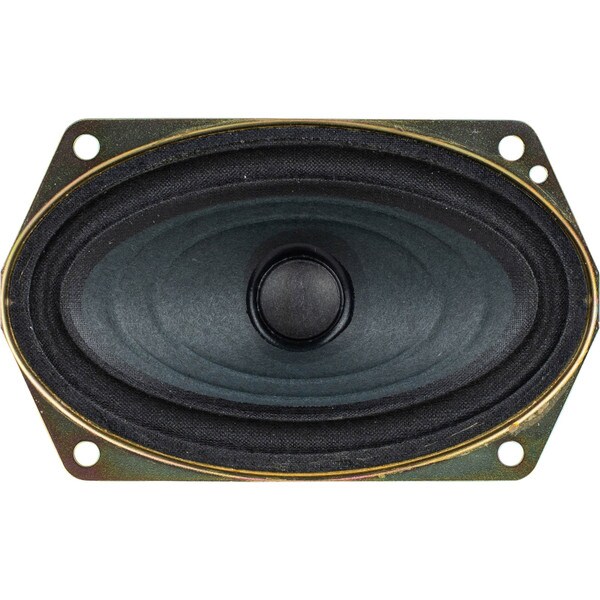

The EAS12D128E Full Range 3" x 5" Speaker uses a paper cone and cloth surround to produce natural full-range response from 150 to 15,000 Hz. Thanks to the powerful shielded motor this driver has excellent efficiency for its size.
Key Features
  • Shielded magnet assembly is suitable for use near sensitive electronics
  • High efficiency to deliver high output with little input power
  • Flat mounting flange for simple front or rear mount installation
  • Perfect for use in slim designs such as sound bars and portable speakers
  • Copper cap to reduce inductance and lower distortion
BUYOUT $3.88
Bulk Pricing
Quantity:Qty: 1-9 $3.88/ea
Quantity:Qty: 10-19 $3.48/ea
Quantity:Qty: 20+$2.88/ea
Order in the next 0 hr 54 min to ship today. Details

5379In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

EAS12D128E 3" X 5" Full Range Paper Cone Shielded Speaker 8 Ohm

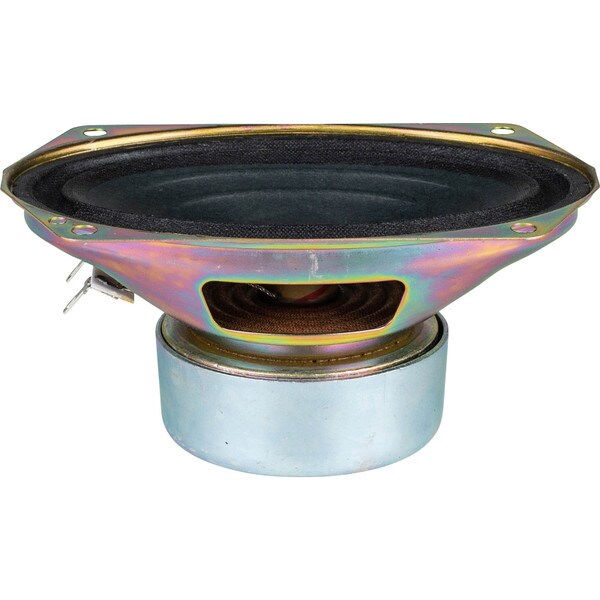

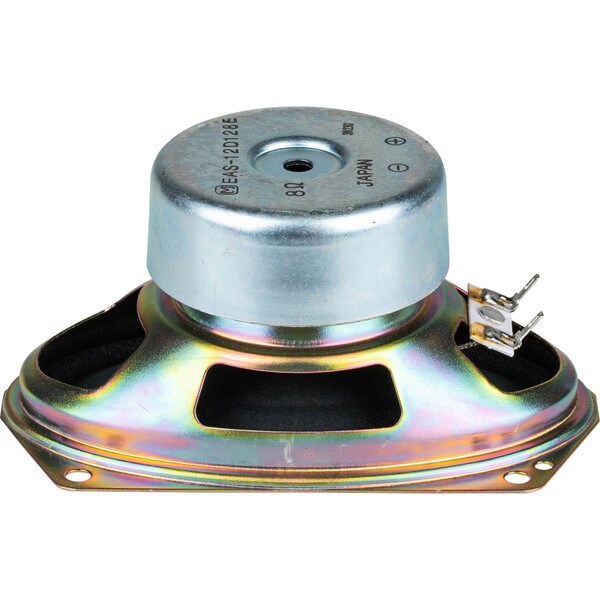

The EAS12D128E Full Range 3" x 5" Speaker has a 5" x 3" mounting flange allowing it to easily fit in slim speaker designs. This driver uses a fully shielded motor for use near devices that are sensitive to stray magnetic fields and includes a copper cap to help reduce inductance. With over 86 dB efficiency and 2.5mm Xmax, this driver can produce an impressive amount of output for its size making it perfect for designs such as speaker bars, TV speakers, and portable Bluetooth enabled projects.

Product Details

BrandFactory Buyouts
ModelEAS12D128E
Part Number299-4188
UPC848864073415
Unit of MeasureEach
Weight0.89

Product Specifications

Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance8Ω
Frequency Response150 to 15,000Hz
Sensitivity86.73dB 2.83V/1m
Voice Coil Diameter0.625"

Thiele-Small Parameters

Resonant Frequency (Fs)169.2Hz
DC Resistance (Re)7.327Ω
Mechanical Q (Qms)5.257
Electromagnetic Q (Qes)2.285
Total Q (Qts)1.593
Compliance Equivalent Volume (Vas)0.0507ft³
Diaphragm Mass Inc. Airload (Mms)1.974g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)52.81cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Depth2.25"
# Mounting Holes4
