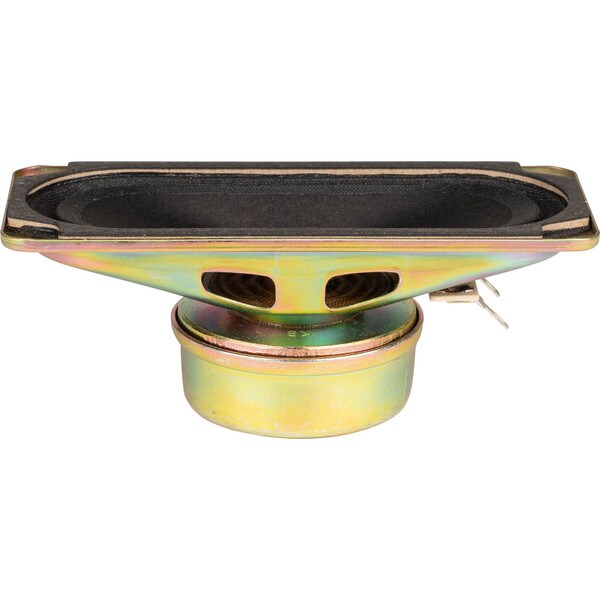

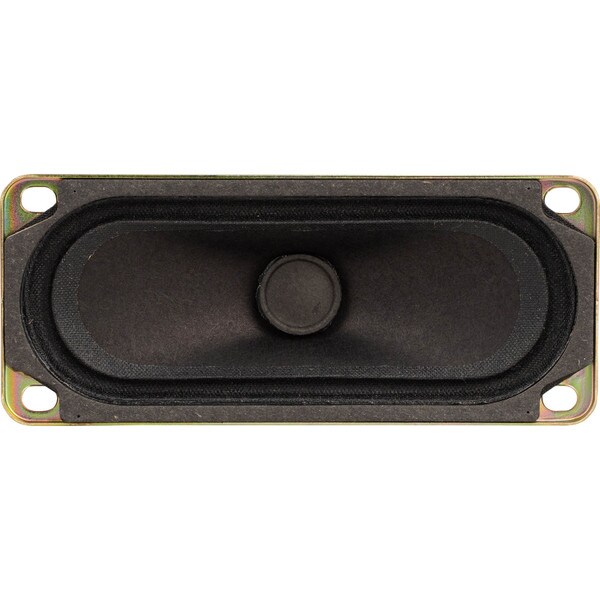

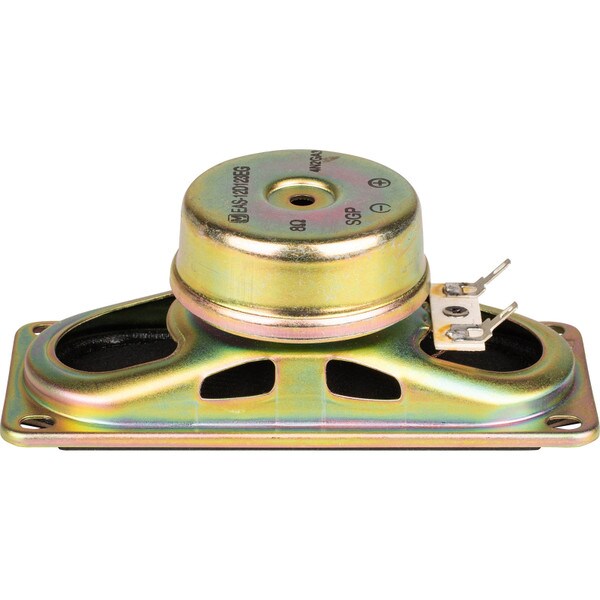

The EAS12D123BG 2" X 4-2/4" Full-Range Shielded Speaker utilizes a low-profile race-trace shape making it a perfect choice for small areas.
The EAS12D123BG 2" X 4-2/4" Full-Range Shielded Speaker utilizes a low-profile race-trace shape making it a perfect choice for small areas. A paper cone, inverted cloth surround and shielded magnet combine for smooth, efficient full-range response from 200 to 15,000 Hz.
Product Details | |
|---|---|
| Brand | Factory Buyouts |
| Model | EAS12D123BG |
| Part Number | 299-4260 |
| UPC | 848864073750 |
| Unit of Measure | Each |
| Weight | 0.45 |
Product Specifications | |
|---|---|
| Power Handling (RMS) | 10 Watts |
| Power Handling (MAX) | 20 Watts |
| Impedance | 8Ω |
| Frequency Response | 200 to 15,000Hz |
| Sensitivity | 86.14dB 2.83V/1m |
| Voice Coil Diameter | 0.5" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 237.8Hz |
| DC Resistance (Re) | 7.519Ω |
| Voice Coil Inductance (Le) | 0.1853mH |
| Mechanical Q (Qms) | 5.095 |
| Electromagnetic Q (Qes) | 3.388 |
| Total Q (Qts) | 2.035 |
| Compliance Equivalent Volume (Vas) | 0.02364ft³ |
| Diaphragm Mass Inc. Airload (Mms) | 1.42g |
| Maximum Linear Excursion (Xmax) | 0.5mm |
| Surface Area of Cone (Sd) | 40.15cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Cloth |
| Voice Coil Wire Material | CCA |
| Voice Coil Former | Paper |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Depth | 1.75" |
| # Mounting Holes | 4 |
