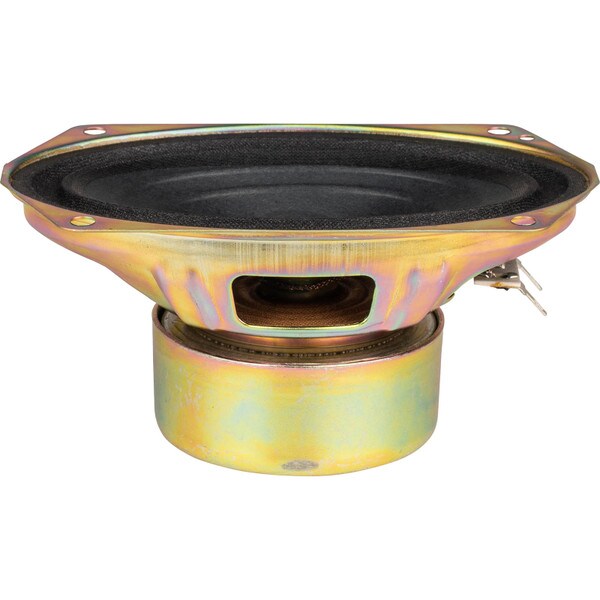

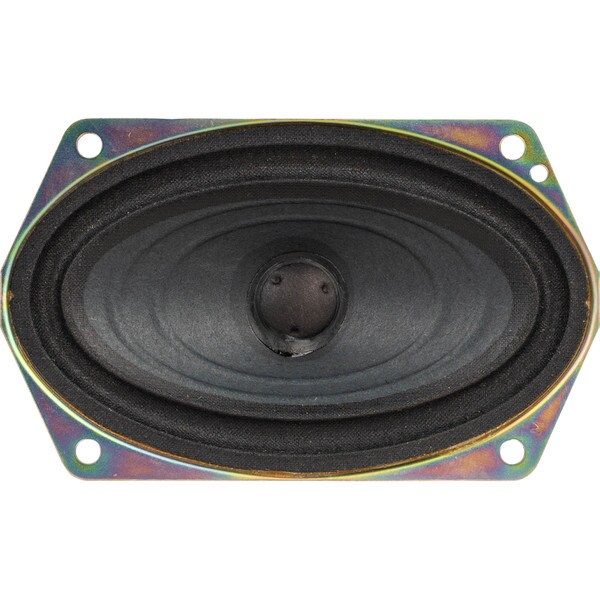

The EAS1212D131D 3" x 5" Speaker uses a paper cone and cloth surround to produce natural full-range response from 150 to 15,000 Hz. Thanks to the powerful shielded motor this driver has excellent efficiency for its size.

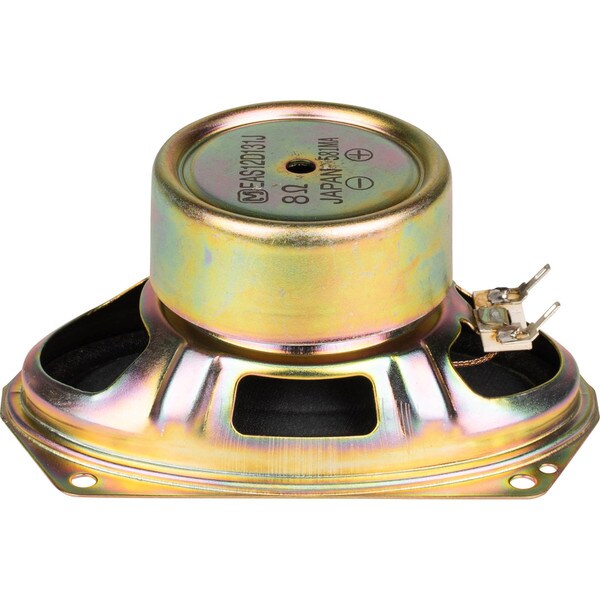

The EAS1212D131D 3" x 5" Speaker has a 5" x 3" mounting flange allowing it to easily fit in slim speaker designs. This driver uses a fully shielded motor for use near devices that are sensitive to stray magnetic fields. This driver can produce an impressive amount of output for its size making it perfect for designs such as speaker bars, TV speakers, and portable Bluetooth enabled projects.
Product Details | |
|---|---|
| Brand | Factory Buyouts |
| Model | EAS1212D131D |
| Part Number | 299-4258 |
| UPC | 848864073743 |
| Unit of Measure | Each |
| Weight | 0.75 |
Product Specifications | |
|---|---|
| Power Handling (RMS) | 10 Watts |
| Power Handling (MAX) | 20 Watts |
| Impedance | 8Ω |
| Frequency Response | 150 to 15,000Hz |
| Sensitivity | 86.88dB 2.83V/1m |
| Voice Coil Diameter | 0.5" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 136.9Hz |
| DC Resistance (Re) | 6.369Ω |
| Mechanical Q (Qms) | 3.998 |
| Electromagnetic Q (Qes) | 2.001 |
| Total Q (Qts) | 1.334 |
| Compliance Equivalent Volume (Vas) | 0.0868ft³ |
| Diaphragm Mass Inc. Airload (Mms) | 2.317g |
| Maximum Linear Excursion (Xmax) | 1mm |
| Surface Area of Cone (Sd) | 40.72cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Cloth |
| Voice Coil Wire Material | CCA |
| Voice Coil Former | Paper |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Depth | 2.25" |
| # Mounting Holes | 4 |
