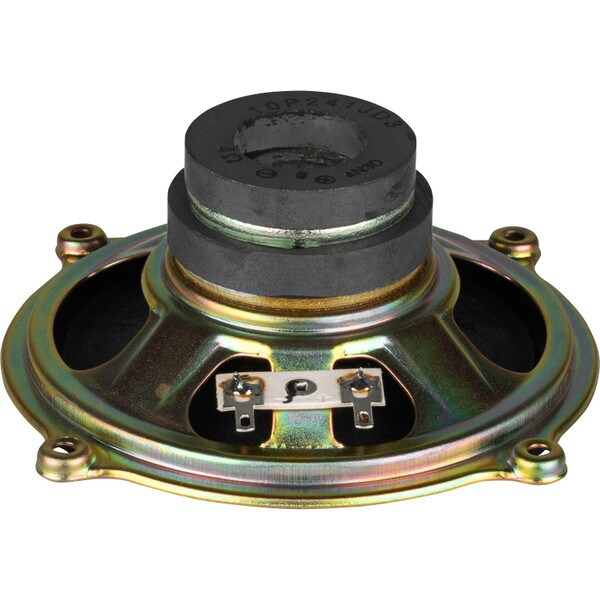

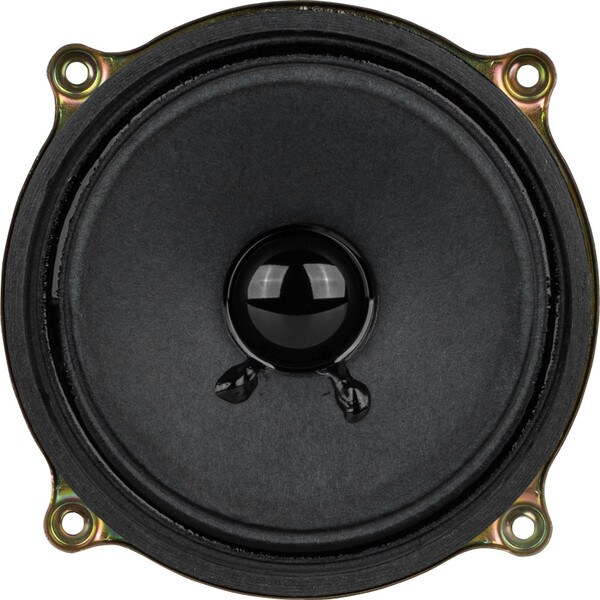

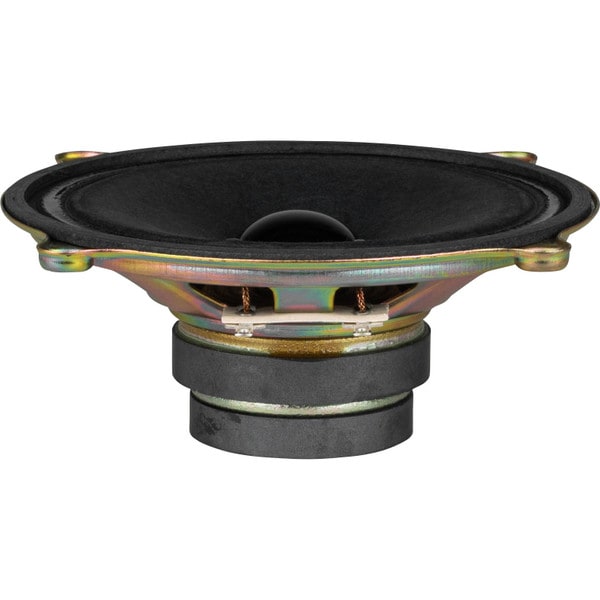

The 10P241JC3 4" Extended-Range Speaker utilizes a one-piece paper cone and surround, ferrite magnet and 4 ohm impedance.
The 10P241JC3 4" Extended-Range Speaker utilizes a one-piece paper cone and surround, ferrite magnet and 4 ohm impedance. A CCA voice coil and paper former allow for higher than average sensitivity and a simple frame design helps simple rear-mount installation.
Product Details | |
|---|---|
| Brand | Factory Buyouts |
| Model | EAS10P241JD3 |
| Part Number | 299-4350 |
| Unit of Measure | Each |
| Weight | 0.4 |
Product Specifications | |
|---|---|
| Nominal Diameter | 4" |
| Bolt Circle Diameter | 4.25 |
| Power Handling (RMS) | 10 Watts |
| Power Handling (MAX) | 20 Watts |
| Impedance | 4Ω |
| Frequency Response | 150 to 10,000Hz |
| Sensitivity | 89.59dB 2.83V/1m |
| Voice Coil Diameter | 0.5" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 158.2Hz |
| DC Resistance (Re) | 3.668Ω |
| Voice Coil Inductance (Le) | 0.09122mH |
| Mechanical Q (Qms) | 5.908 |
| Electromagnetic Q (Qes) | 1.992 |
| Total Q (Qts) | 1.49 |
| Compliance Equivalent Volume (Vas) | 0.1046ft³ |
| Diaphragm Mass Inc. Airload (Mms) | 1.642g |
| Maximum Linear Excursion (Xmax) | 0.75mm |
| Surface Area of Cone (Sd) | 58.49cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Paper |
| Voice Coil Wire Material | CCA |
| Voice Coil Former | Paper |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 4" |
| Baffle Cutout Diameter | 3.625" |
| Depth | 1.5" |
| # Mounting Holes | 4 |
