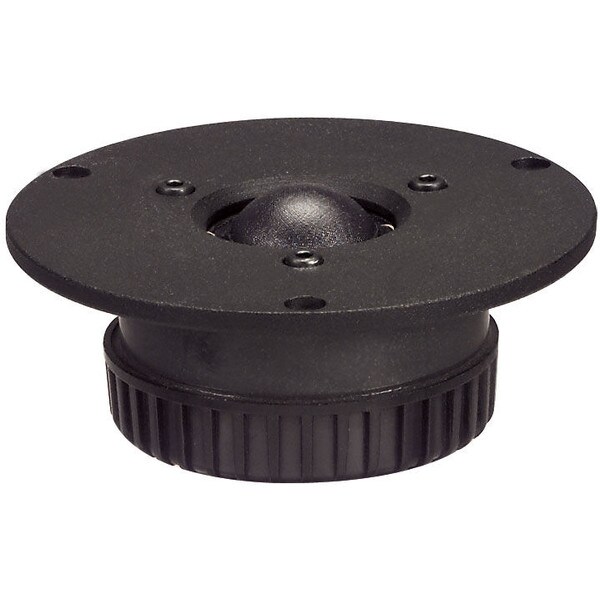

Dynavox is the best kept secret in high end loudspeaker drivers. They were engineered in France and their motor structures were optimized using Finite Element Analysis techniques. This tweeter features a 1-1/8" treated silk dome, ferrofluid cooling for higher power handling, and a heavy cast aluminum faceplate. It also utilizes a specially damped rear chamber for a lower resonanant frequency and crossover point. It offers exceptional clarity and smoothness, even at high output levels!
Product Details | |
|---|---|
| Brand | Dynavox |
| Model | TD2801XL |
| Part Number | 275-200 |
| UPC | 844632000188 |
| Unit of Measure | Each |
| Weight | 1.38 |
Product Specifications | |
|---|---|
| Cone / Dome Diameter | 1.125" |
| Cutout Diameter | 3.38 |
| Tweeter Type | Soft Dome |
| Power Handling (RMS) | 100 Watts |
| Impedance | 8Ω |
| Frequency Response | 2,000 to 22,000Hz |
| Sensitivity | 92dB 2.83V/1m |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 900Hz |
| DC Resistance (Re) | 5.3Ω |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 4.38" |
| Depth | 1.63" |
