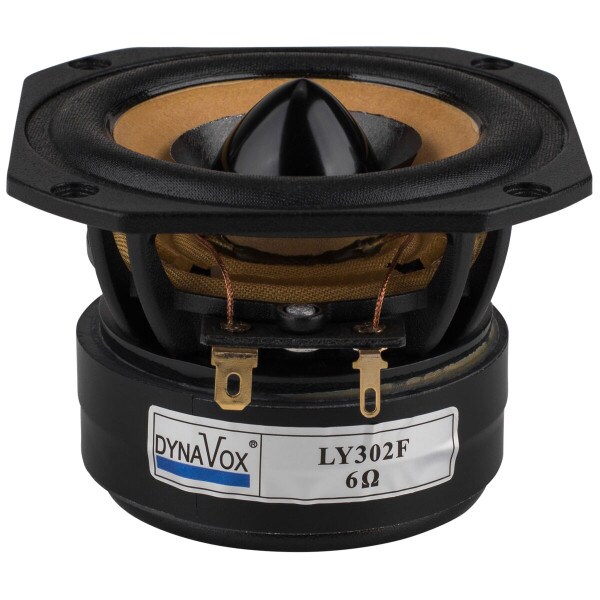

CLEARANCE Dynavox LY302F 3-1/2" Full-Range Driver

Dynavox
Part #295-612

CLEARANCE Dynavox LY302F 3-1/2" Full-Range Driver

Dynavox
Part #295-612
Model: LY302F
For compact and portable speaker systems, the LY302F 3-1/2" full range from Dynavox is definitely a driver to consider. With high efficiency and a slightly rising response above 12,000 Hz this full-range can cover most of the audio spectrum extremely well.
Key Features

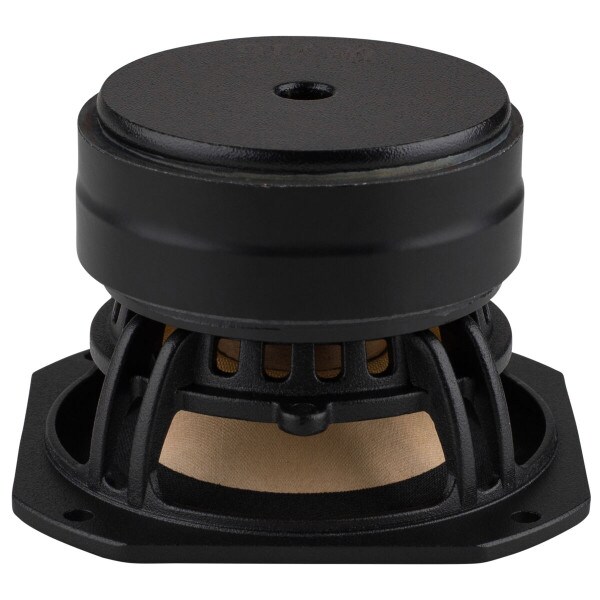

  • Open, cast aluminum frame allows ample room for the rear of the driver to breathe

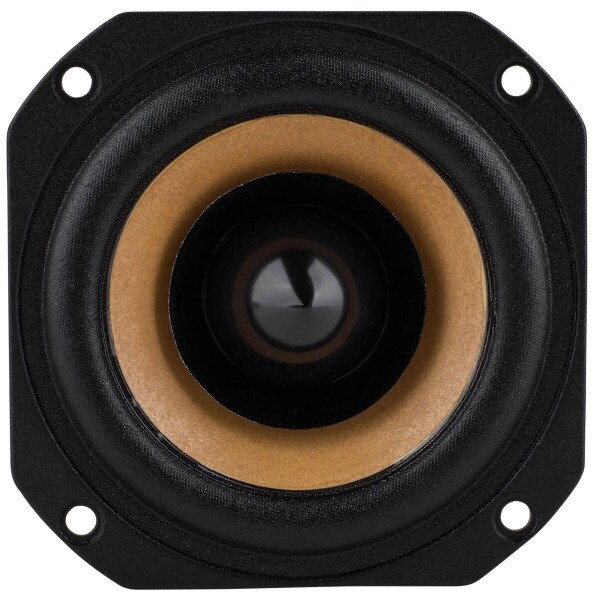

  • Whizzer cone design improves high frequency response and dispersion
  • Copper cap on pole piece lowers distortion and inductance, also improves damping
  • Extremely smooth response from 100 to 12,000 Hz with rising response above
60 Day No Hassle Return Policy

Overview

Dynavox LY302F 3-1/2" Full-Range Driver

The Dynavox LY302F 3-1/2" full-range driver is an extraordinary value which combines smooth extended response, low distortion, and high efficiency for a driver of its size. This driver will definitely deliver high performance in your next compact or portable speaker design.

The compact whizzer cone with phase plug design increases high frequency response while improving off axis dispersion. To minimize distortion the large ferrite motor design features a copper cap on the pole piece, which acts as a sort of electromagnetic break, increasing cone control and lowering inductance. Finally, holding this driver together is an open cast aluminum frame that provides little resistance to the rear wave, which makes this driver easy to mount, not requiring a rear chamfer in most cases.

Product Details

BrandDynavox
ModelLY302F
Part Number295-612
UPC848864035932
Unit of MeasureEach
Weight1.4

Product Specifications

Nominal Diameter3-1/2"
Bolt Circle Diameter3.54
Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance6Ω
Frequency Response85 to 20,000Hz
Sensitivity86.2dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)84.5Hz
DC Resistance (Re)4.5Ω
Voice Coil Inductance (Le)0.43mH
Mechanical Q (Qms)6.47
Electromagnetic Q (Qes)0.76
Total Q (Qts)0.68
Compliance Equivalent Volume (Vas)0.066ft³
Mechanical Compliance of Suspension (Cms)1.06mm/N
BL Product (BL)3.24T·m
Diaphragm Mass Inc. Airload (Mms)3.34g
Maximum Linear Excursion (Xmax)1.55mm
Surface Area of Cone (Sd)35.21cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.85"; Across flats 3.3"
Baffle Cutout Diameter3.03"
Depth2.2"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.07ft³
Sealed F3103.1Hz
Vented Volume0.07ft³
Vented F376.6Hz
