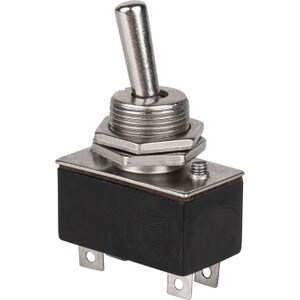

Dual SPST On/On Light Duty Toggle Switch

Parts ExpressPart # 060-544
1 Question, 2 Answers or
This light duty switch can turn one device on while turning another device off using 2 different voltages.

Key Features

  • On/off label to let you know temporary device is on
  • Sturdy metal toggle
  • Minimum Order 5 pcs
Your Price: $1.19
MSRP: $1.99
Save $0.80 (40%)
Bulk Pricing
Quantity:Qty: 5-9 $1.19/ea
Quantity:Qty: 10+ $1.07/ea
20 In Stock
Get Notified When Available

We'll send you an email when Dual SPST On/On Light Duty Toggle Switch is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dual SPST On/On Light Duty Toggle Switch

This light duty toggle switch uses simple on/on switching. Contacts 1 and 2 connect when the switch is in the up position. Contacts 3 and 4 connect when the switch is in the down position. Only one device will be on at a time. This enables you to bring two different voltages in to power two different devices with one switch. Turn on a temporary device while disconnecting the main device.

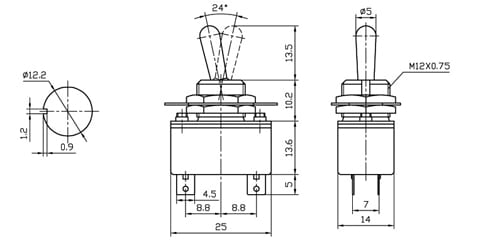

Specifications: • Current rating: 4A @ 125 VAC, 2A @ 250 VAC • Contacts: 4 • Shaft diameter: 12.2 mm (31/64").

Product Details

BrandParts Express
Part Number060-544
UPC844632075452
Unit of MeasureEach
Weight0.01

Product Specifications

CircuitDPDT
Contact Rating @ Voltage4A 125 VAC
IlluminationNon-Illuminated
