  • Parts Express Dual Binding Post Banana Jack 1 Red 1 Black

Parts Express Dual Binding Post Banana Jack 1 Red 1 Black

Parts ExpressPart # 090-475
Standard 0.75" dual binding posts made for chassis mounting. Will accommodate a standard dual banana plug, up to 16 gauge wire, and high current spade connectors stacked up to 5 mm high.
Your Price: $4.69
MSRP: $6.99
Save $2.30 (33%)
Bulk Pricing
Quantity:Qty: 1-9 $4.69/ea
Quantity:Qty: 10+ $4.24/ea
522 In Stock
Get Notified When Available

We'll send you an email when Parts Express Dual Binding Post Banana Jack 1 Red 1 Black is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Parts Express Dual Binding Post Banana Jack 1 Red 1 Black

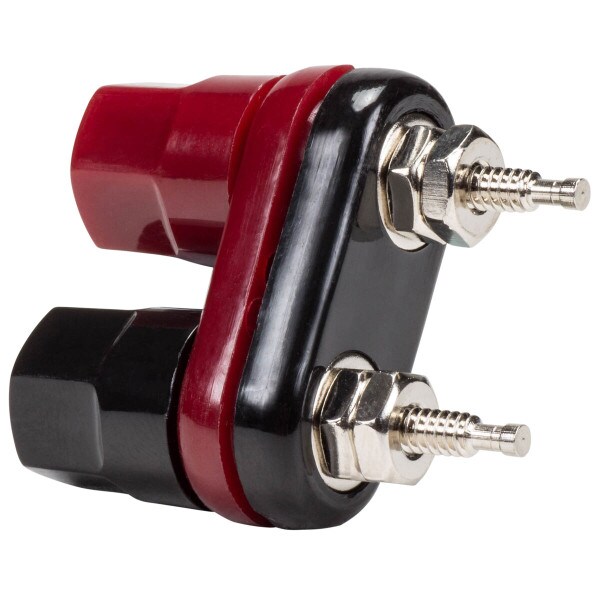

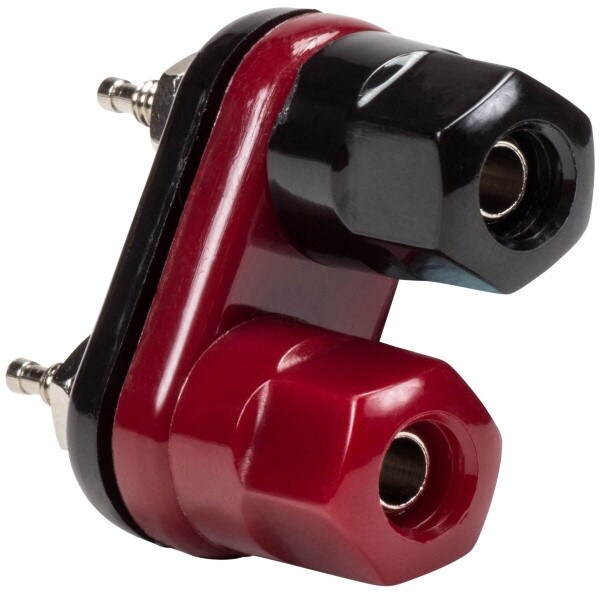

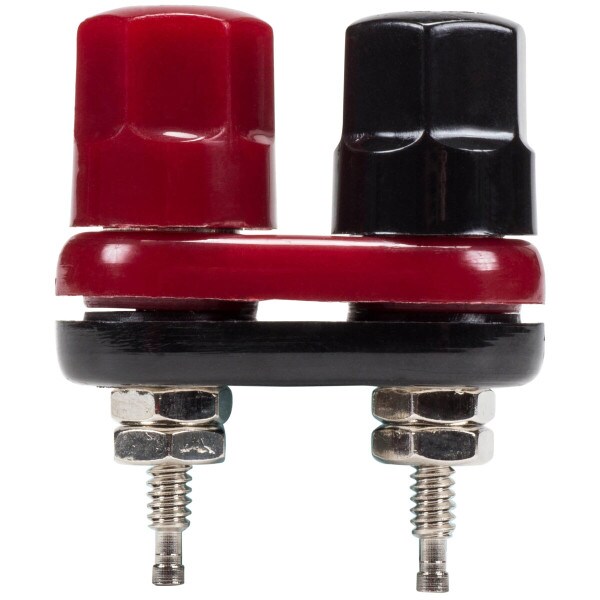

Standard 0.75" dual binding posts made for chassis mounting. Will accommodate a standard dual banana plug, up to 16 gauge wire, and high current spade connectors stacked up to 5 mm high. Front and rear chassis insulators have a slight lip that keeps the conductors centered and from touching the chassis. This unit requires two 0.5" holes drilled 0.75" on center. Will work on chassis up to 0.25" thick. Unit comes with 2 nuts for rear ring or spade connection, or wires can be soldered directly to posts. High temperature high impact injection molded plastic.

Product Details

BrandParts Express
Part Number090-475
UPC844632010323
Unit of MeasureEach
Weight0.0594

Product Specifications

Contact PlatingNickel
Style / TypeDual
