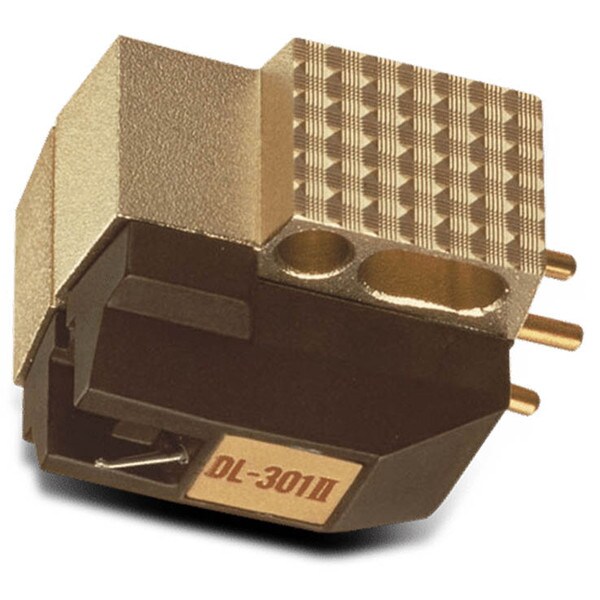

Denon DL-301MK2 Reference Moving Coil Phono CartridgeThe Denon DL-301 MKII phono cartridge represents an enhanced version of the popular and high-performance Denon DL-301. Not only has the body style been redesigned, but the output performance has also been elevated to deliver a more detailed and articulate sound. The standard output moving coil cartridge boasts a slightly higher output level, ensuring a robust response with ample punch.
The vibrating system, a crucial element influencing cartridge performance, features a double-layer tapered cantilever, a cruciform armature, and a minute solid diamond stylus. This rigid yet lightweight design ensures proper damping, outstanding trace capability, dynamic sound, and gentle tracking force. This combination allows you to revel in your music while preserving the longevity of your cherished LPs.
To eliminate unnecessary resonance, the frame's structure has been unified with high-strength resin, incorporating the magnet and terminal pins. Additionally, a light-alloy precision-engineered case has been integrated, enhancing the rigidity of the body's structure. The result is a crystal-clear and accurate sound quality.
The cartridge employs Denon's distinctive 2-way dumping system to suppress tonal variations caused by changes in room temperature. Simultaneously, this system ensures level frequency characteristics, contributing to a consistent and high-quality audio experience.
Features
- DC Belt drive motor
- Static balance tonearm
- Automatic operation
- Speeds: 33-⅓ & 45 RPM
- Wow & flutter: 0.10% WRMS
- Built-in switchable photo EQ
- Stylus version DSN-85
Specifications
- Rated output: 0.4 mV
- Frequency Range: 20 Hz - 60 kHz
- Channel balance @ 1kHz: < 1dB
- Channel Separation @ 1kHz: >28dB
- Sytlus tip: Special elliptical solid diamond with 0.07 x 0.14 mm rectangular cross section
- Recommended racking force: 1.4g+/-0.2g
- Weight: 6g
Denon DL-301MK2 User's Manual
