Dayton Audio iMM-6 Calibrated Measurement Microphone for Tablets iPhone iPad and Android

Name: Dayton Audio iMM-6 Calibrated Measurement Microphone for Tablets iPhone iPad and Android
Brand: Dayton Audio
SKU: 390-810
Price: 22.98 USD
Availability: InStock
Rating: 4.7 (113 reviews)

Dayton AudioPart # 390-810

Model: iMM-6

Read 113 Reviews | 80 Questions, 435 Answers or

iMM-6 iMM-6C

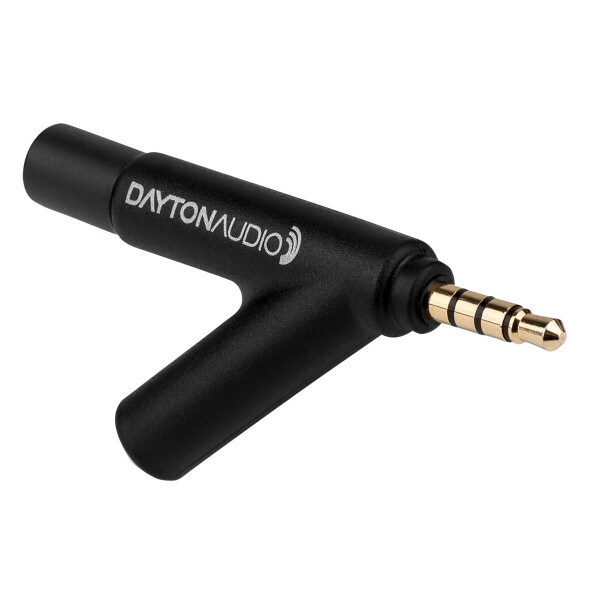

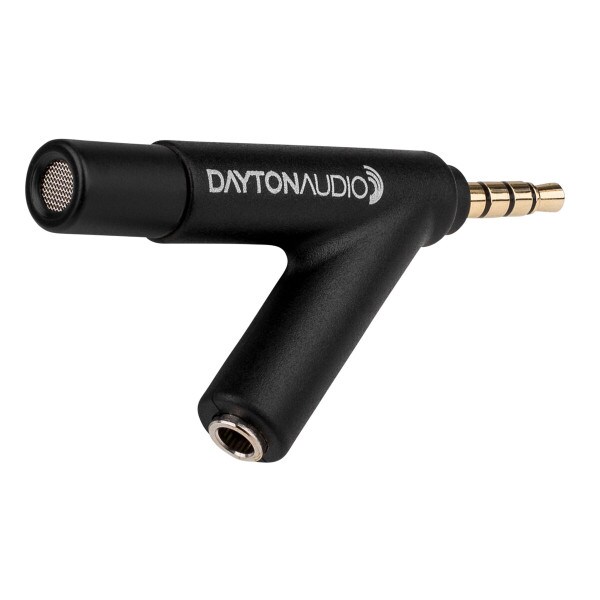

Turn any phone or tablet with a 3.5 mm jack into a laboratory grade audio measurement device with Dayton Audio's iMM-6 iDevice calibrated measurement microphone.

Key Features

Precision condenser microphone for critical measurement
For use with any smartphone or tablet with a 3.5 mm TRRS headset jack
True omnidirectional pattern with calibrated flat frequency response
Headphone/Line Out pass-through jack for test signals or listening
Kickstand feature elevates and angles device and microphone capsule
Rugged construction with high-quality components

Overview

Dayton Audio iMM-6 Calibrated Measurement Microphone for Tablets iPhone iPad and Android

The Dayton Audio iMM-6 is a professional-quality measurement and recording microphone that is designed to work with the entire suite of Apple "iDevices" – iPad, iPhone, and iPod (with 3.5 mm jack). The rugged construction and compact size make it the perfect companion for audio professionals who must work on-location performing acoustic analysis, monitoring audio levels, or recording. Each iMM-6 is individually hand-calibrated using a laboratory-standard measurement microphone, for consistent, repeatable measurements that match the level of precision previously offered only by expensive stand-alone microphones.

The IMM-6 uses an omnidirectional electret condenser capsule that allows for a single calibration file for high-precision measurements so you can measure the output of a speaker driver, or the response of a whole room!

Dayton Audio Microphone Calibration Download

Also compatible with Android and Microsoft devices that use a 3.5 mm TRRS jack, a headphone/line-out is built in for monitoring the recorded signal, and a kickstand elevates and angles the measurement capsule for more direct measurements. Each iMM-6 is ruggedly built with high-quality components and include a sturdy carrying case with foam insert.

A unique serialized calibration file is available for the iMM-6. This calibration file can be used by most audio-analysis apps for the iPad, iPhone, and iPod Touch (see compatibility list for recommendations). Visit the Dayton Audio calibration download tool, where you will be prompted to enter the serial number from the case of your iMM-6. After entering the serial number, your download will start.

Note: In order to use your iMM-6 as a calibrated measurement microphone you may be required to purchase an app for your tablet or smart phone.

Specifications:

Capsule Type: Precision 6mm electret condenser
Polar Response: True Omnidirectional
Frequency Response: 18-20,000Hz, ±0.5dB (calibrated)
Impedance: 200 ohms
Sensitivity at 1kHz into 1kohm: 10 mV/PA (-40 dBV, ref. 0dB=1V/PA)
Maximum SPL for 1% THD @ 1k: 127dB
S/N ratio: 70 dB(A-Weighted, varies depending on host device)
Connector: Gold-plated 3.5mm TRRS
Weight: Ultra-light 7.6 grams

Dayton Audio Microphone Calibration Download

Adapter for 1/2" Calibrator

Every iMM-6 microphone includes a unique calibration file, but using a sound level calibrator is still the most reliable way to confirm accuracy when switching between phones, tablets, and audio interfaces. A calibrator provides a fixed reference level, allowing you to quickly compensate for the varying input sensitivities these devices and their measurement apps often introduce. To make this process simple, we offer a 3D-printable adapter that allows the iMM-6 to fit properly into many popular 1/2" calibrators. Download the 3D files below.

Note: For this print we recommend using PLA or PLA+; other materials may require size adjustments due to shrinkage. Print with 100% infill for the best fit and durability.

Download the 1/2" Calibrator Adapter

Help for Android and iPhone users:

There are many applications in the market that provide users with audio measurement software. We do not recommend any specific apps, however, in an attempt to assist the new user of an iMM-6, we have listed links and some helpful pointers below. One for the Apple/iPhone platform and the other for Android devices.

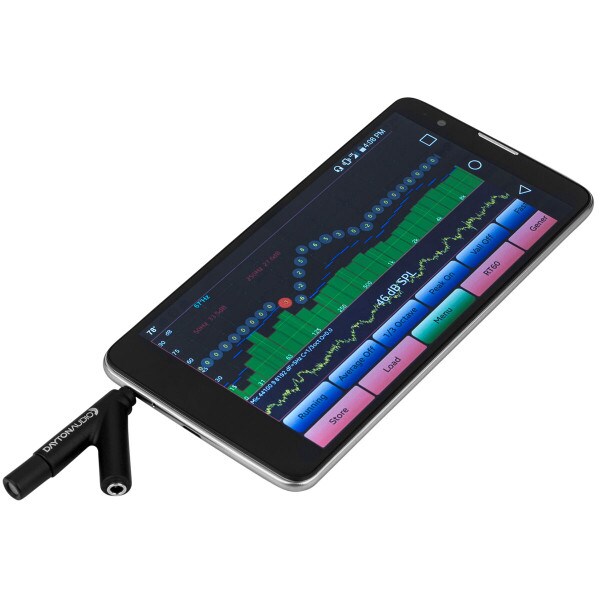

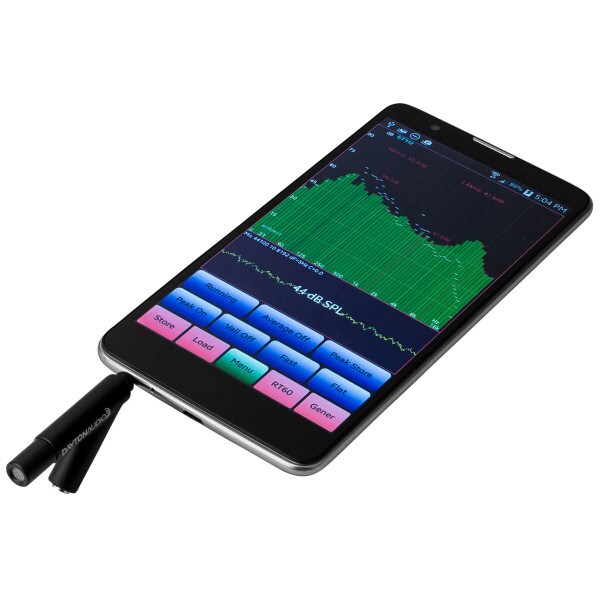

Android - AudioTool from JJBunn

Here is the procedure for loading the iMM-6 calibration file intoAudioTool on an Android device:

1) Visit the Dayton Audio Calibration File Download Tool on your web browser: Dayton Audio Calibration Download Tool.
2) Find your iMM-6 serial number on the back of your iMM-6 Case.
3) Select "iMM-6" microphone, enter the serial number, and press search. Download and save the calibration file by clicking on it.
4) Open the AudioTool app on your device. Open the Menu at the bottom of the screen and select "Use 1/3 Octave Calibration" to ensure you have the 1/3 octave calibration method selected (if "Use 1/3 Octave Calibration" is not shown in the menu then it is already selected).
5) Open the Menu at the bottom of the screen, and select "Import Cal File". You will be shown the Android file browser.
6) Locate the iMM-6 calibration file you downloaded in step 3, and click on it. This will import a copy of the calibration file into the AudioTool directory (there is no need to rename the file to .cal, or make any other changes).
7) Open the Menu at the bottom of the screen again and select "Load Cal".
8) Select your calibration file (for example: CMM10000).
9) The calibration data will be loaded and summed to the 1/3 octave bins used by AudioTool, and saved in your Preferences - there is no further need to load the file whenever you start AudioTool, unless you change the calibration method or microphone.

iPhone - AudioTools from Studio Six Digital

Here is the procedure for loading the iMM-6 calibration file intoAudio Toolson an iPhone:

1) Visit the Dayton Audio Calibration File Download Tool on your iOS device:Dayton Audio Calibration Download Tool.
2) Find your iMM-6 serial number as pictured (on the back of your iMM-6 case).
3) Select "iMM-6" microphone, enter the serial number, and press search. Download and save the calibration file by clicking on it.
4) Open the "AudioTools" App.
5) Open the "Microphone Setup" Menu.
6) Make sure your iMM-6 is now connected to your device. It will say "Headset Mic 1" when connected. If it says "Internal Mic 1", your iMM-6 is not connected.
7) Press the (i) button to the right of your screen.
8) Press the "Calibration File" button labeled in blue.
9) Press "Import" at the bottom of the screen. You will then see the file you just downloaded. Click on it.
10) It will now show up in your list of calibration files. Click on it and then press import at the bottom of the screen.
11) The calibration is now installed in the "Sound Tools" app!

Product Details
Brand	Dayton Audio
Model	iMM-6
Part Number	390-810
UPC	848791000331
Unit of Measure	Each
Weight	0.15

Specifications

Q&A

Reviews

Manuals & Resources

Dayton Audio iMM-6 Manual (PDF File) NIOSH Evaluation of External Smartphone Microphones (PDF File) Dayton Audio iMM-6 and 6C 1/2” Calibrator Adaptor – 3D Printable (ZIP File) Dayton Audio Manufacturer Warranty (PDF File)
