CLEARANCE Dayton Audio WT3 Woofer Tester

Dayton AudioPart # 390-804
Model: WT3
3 Questions, 4 Answers or
Dayton Audio's WT3 makes measuring driver parameters easier, faster, and more accurate than ever before. QC Pack now included -- perfect for testing production runs of speaker components and systems!

Key Features

  • Measure speaker parameters of any driver, large or small
  • Compact USB interface with molded test leads
  • Data can be printed or saved to create a driver parameter library
  • Parameters can be exported to WinSpeakerz and other popular box design programs
  • Measures VAS using added mass, test box, or SPL method
  • Straightforward, easy-to-use measurement software
  • Exclusive "Patent Pending" technique for detecting "Rub and Buzz"
Similar items that may interest you:
Dayton Audio DATS V3 Computer Based Speaker & Audio Component Test System
Price: $129.98Part # 390-807
See all items in Speaker Design Books
Get Notified When Available

We'll send you an email when Dayton Audio WT3 Woofer Tester is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Dayton Audio WT3 Woofer Tester

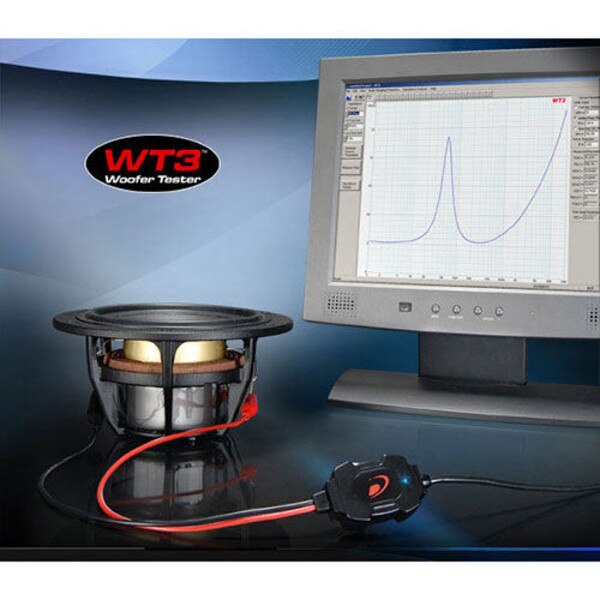

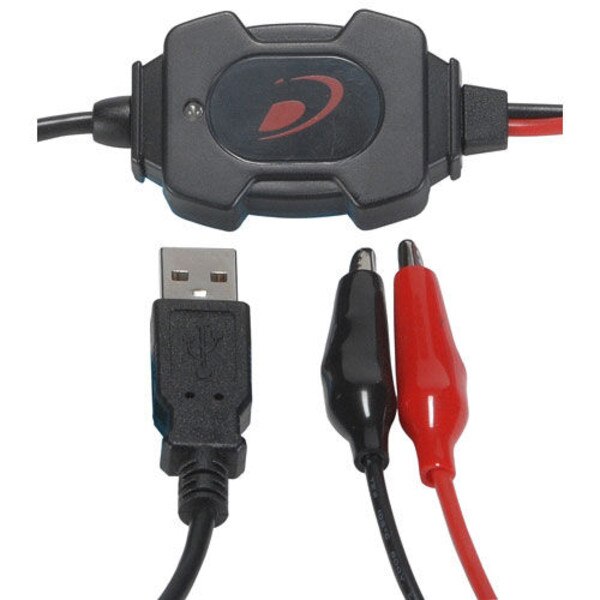

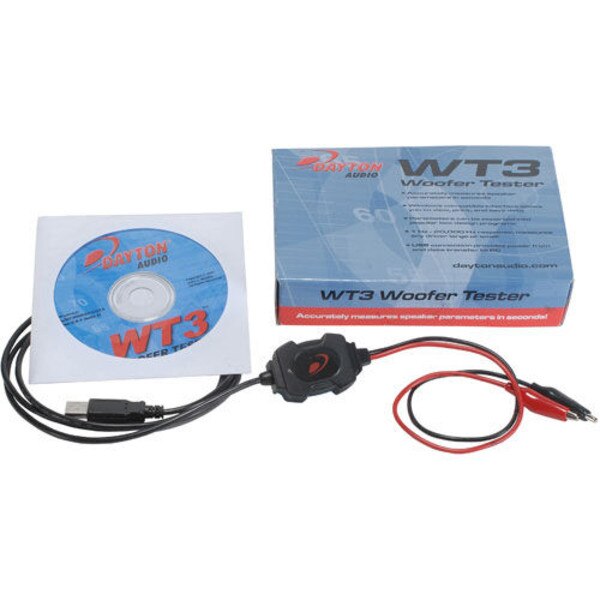

Dayton Audio's WT3 makes measuring loudspeaker driver parameters easier, faster and more accurate than ever before. While previous generation woofer testers took around 6 minutes to measure 30 impedance points, the new WT3 measures over 30,000 data points in just a few seconds using a new swept sine technique that is only available with the WT3. The result is a very high-resolution impedance measurement that allows the extraction of an extremely accurate driver parameter set, suitable for the most critical loudspeaker design work. Free air parameters are measured in just a few seconds. VAS can be measured by traditional test box, added mass or, more conveniently, just by specifying the 1W/1m SPL of the driver. No other loudspeaker impedance tester is as fast, versatile, or as easy to use as the WT3. WT3 hardware consists of a compact USB interface unit with attached USB cable and alligator clip leads. It's manufactured on state-of-the-art equipment using precision surface mount components. Windows compatible software provides an easy-to-use interface that allows you to be up and running very quickly. You can save as many as 20 impedance measurements per project and then overlay and compare any or all of the measurements to create a custom report complete with all your notes. Perfect for quick incoming QC inspections.

Product Details

BrandDayton Audio
ModelWT3
Part Number390-804
UPC844632063091
Unit of MeasureEach
Weight1

Specifications
