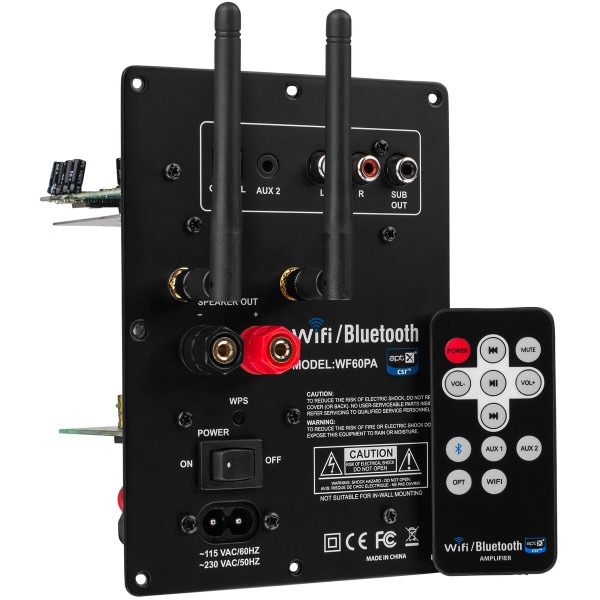

Dayton Audio's feature-packed WF60PA full-range Class D plate amplifier makes it easy to add high-quality Wi-Fi (Hi-Fly App Control) and Bluetooth 4.0 (with aptX®) wireless connectivity to your speakers. With 2 x 30 watts (4 ohm minimum) of power, it is perfect for creating a pair of active bookshelf or multimedia speakers.
We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.
Key Features
Selectable optical, RCA, and 3.5 mm inputs for traditional wired connections
Convenient Wi-Fi App control and Bluetooth 4.0 connectivity

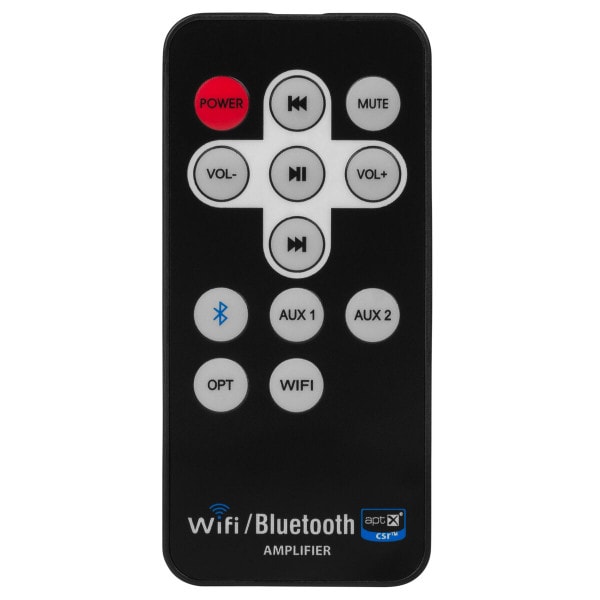

Full feature wireless remote for simple, convenient operation
Signal sensing standby mode automatically powers down amplifiers after 15 minutes of inactivity
Mono subwoofer output makes it easy to add a powered subwoofer
Control music player from remote (PLAY, PAUSE, PREVIOUS, and SKIP) in Bluetooth mode
Only 4.5" W x 6.25" H, perfect for creating small powered bookshelf or monitor speakers
We'll send you an email when Dayton Audio WF60PA 60W Class D Full-Range 2 Channel Plate Amplifier with Wi-Fi and Bluetooth 4.0 aptX is back in stock or available for preorder.
Dayton Audio WF60PA 60W Class D Full-Range 2 Channel Plate Amplifier with Wi-Fi and Bluetooth 4.0 aptX
Easy Solution to Build a Powered Wi-Fi Speaker System
The WF60PA from Dayton Audio makes it possible to create a pair of custom active speakers with Bluetooth and App controlled Wi-Fi connectivity. This plate amp is ideal for the project builder or OEM, with endless applications. Use the WF60PA to build multimedia speakers, powered monitor speakers, or even retrofit existing speakers!
With multiple input options including optical, RCA, 3.5 mm, Bluetooth 4.0 with aptX ®, and Wi-Fi, the WF60PA is easy to integrate in any audio system. The convenient wireless remote allows full control of the amplifier's power, volume, and input (Bluetooth mode also allows you to control play, pause, previous and next track). In addition, a mono line level subwoofer out makes it easy to integrate a powered subwoofer into the system if needed.
To mount the WF60PA, a 4" x 5.5" hole is required for the amplifier. Installation of the IR receiver/LED module requires a 0.875" diameter, 0.125" deep recess for the plexiglass window with a 0.625" through hole. For speaker connections, a 30" lead is factory terminated with 0.205" disconnects for easy connection to driver or crossover terminals. Gold plated 5-way binding posts are provided for connecting the second speaker.
Your Current Sound System Redefined
This Wi-Fi amplifier is easy to set-up, just connect this amp to any set of speakers for quick, affordable whole-house audio system.
MULTI-ROOM
Play synchronized audio in multiple rooms for seamless listening.
MULTI-CHANNEL
Play any song to any single device or group devices together.
MULTI-USER
Different users can control the audio source for different devices.
Super Simple Setup
Setting up the WF60PA amplifier is simple, start by downloading the free Dayton Audio Hi-Fly™ App from either the Play Store or App Store. Once the App is installed, open it on your mobile device or tablet and follow the step by step directions. If using a wired connection, the directions in the app are not required; just open the app and your device is ready for use.
Control the Airwaves at Home
The Dayton Audio Hi-Fly™ App turns your mobile device or tablet into a remote control for all Dayton Audio Hi-Fly™ enabled devices. Play music from your favorite streaming providers like Spotify, or from your home network or mobile device. With Hi-Fly you can send music to individual WFA02 adapters, or group your Hi-Fly enabled systems together for true multi-room audio. Plus, your music continues to play even if your phone is turned off or you need to take a call.
Specifications: • Output power: 2 x 30 watts RMS (Class D) into 4 ohms minimum • Signal to noise ratio: >95 dB • Frequency response: 45 to 20,000 Hz • Total Harmonic Distortion: 0.4% at 20 watts • Inputs: AUX 1: 2 x RCA, AUX 2: 3.5mm Stereo, S/PDIF Optical: Toslink • Outputs: 30" lead with 0.205" disconnects, Dual 5-way binding posts, RCA LFE Subwoofer Output • Bluetooth audio profiles: aptX, A2DP, AVRCP, HFP, and HSP • Bluetooth range: 33 ft. (10 m) • Wi-Fi: 2.4 GHz, Apple AirPlay® DLNA, Hi-Fly App compatible • Power requirements: 90/230 VAC, 50/60 Hz, 80 Watts • Stand-by power rating: 115V <0.5 Watts • Dimensions: 4.5" W x 6.25" H x 4" D • Mounting hole: 4" W x 5.75" H • Screw holes: 0.175".
Powered by Linkplay Wi-Fi audio technology.Click here to learn more about custom integration of Linkplay technology in your products.
