Overview
Installing a second audio zone or putting a subwoofers exactly where you want it can be a challenge if you can't run the proper cables. Renters and owners of finished homes may find in-wall cabling impossible. The Dayton Ultimate Wireless Transmitter and Receiver package solves wiring dilemmas, quickly and easily.
Place your subwoofers in the location that provides optimal sound without worrying about a cable. This receiver pairs easily to the transmitter system with just the touch of a button. Pair up three receivers to a single transmitter. All the cables needed to use system are included. This system is designed for use with subwoofers, but will work equally well with stereo, full range applications.
For users hoping to add stereo zone capability to an existing A/V installation, the Dayton Audio Ultimate Transmitter Receiver System extends the options and uses of your primary audio system. Use the transmitter to add powered speakers or passive speakers running off a local amplifier to your patio, pool area, or anywhere you'd like to enjoy music away from your primary A/V system. Connect it to your PC, TV, or streaming media player and send a signal to any stereo in the house.

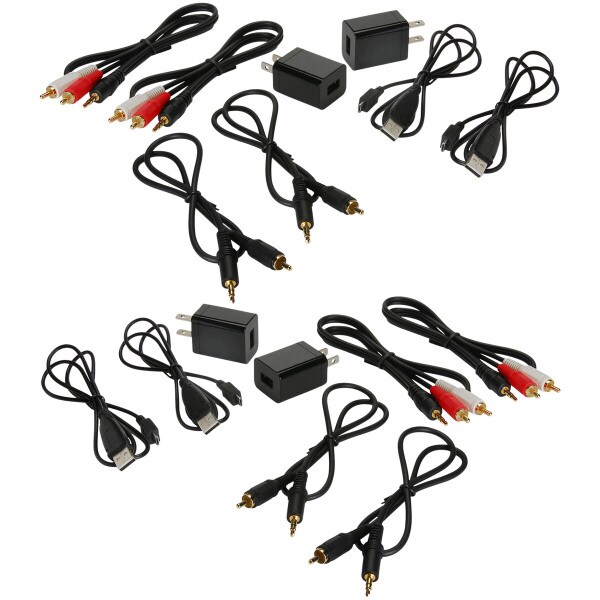

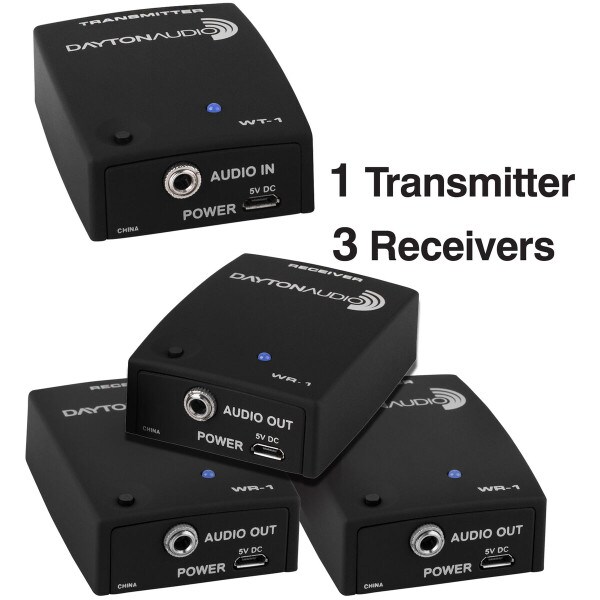

Dayton Audio's Ultimate Wireless Audio Transmitter Receiver system includes one transmitter and 3 receivers, four 22" 3.5 mm stereo male to stereo male RCA adapter cables, four 22" 3.5 mm stereo male 3.5 mm to mono male RCA adapter cables, four 30" USB-A male to micro USB-B male charging cables, and four USB 5V DC, 2A power adapters.
Sub-Link Transmitter Specifications: • Operating voltage: 5V DC, 1A • RF frequency band: 2.404 to 2.467 GHz • Modulation: GFSK • Working distance: 12 meters (40 feet; unobstructed line-of-sight) • Transmitter power: ≤ 10 dBm • Transmitter input sensitivity: 700 mV @ 1% THD • Receiver sensitivity: -85 dBm • Frequency response: 15 to 20,000 Hz +1/-3 dB • Delay time: <25ms • THD+N: -60 dB @ 1 kHz. • Dimensions per unit: 2-5/8/" L x 2" W x 1/2" H.
Sub-Link Expansion Receiver Specifications: • Operating voltage: 5V DC, 1A • RF frequency band: 2.404 to 2.467 GHz • Modulation: GFSK • Working distance: 12 meters (40 feet; unobstructed line-of-sight) • Receiver sensitivity: -85 dBm • Frequency response: 15 to 20,000 Hz +1/-3 dB • Delay time: <25ms • THD+N: -60 dB @ 1 kHz. • Dimensions: 2-5/8/" L x 2" W x 1/2" H.
Pairing: These units come paired from the factory, but if they become un-paired, follow these steps. Press and hold the button on one unit. Then, press and release the button on the second unit. Finally, release the button on the first unit and your transmitter and receiver will be paired.
Note: This product uses USB for power purposes only. This product does not connect to a computer for data purposes and will not act as a sound card for the transfer of audio.
