  • Dayton Audio Tactile Transducer Mini Bass Shaker 8 Ohm TT25-8 PUCK

Dayton Audio Tactile Transducer Mini Bass Shaker 8 Ohm TT25-8 PUCK

Dayton AudioPart # 300-386
Model: TT25-8
Dayton Audio's TT25-8 PUCK is a small, 8 ohm tactile transducer or mini bass shaker that is intended to be used in home theater, gaming, and auto sound applications. Now includes convenient surface mounting kit for quick and easy installation onto any flat surface

Key Features

  • Quality construction and economically priced
  • Includes surface mounting ring for quick installation onto flat surfaces
  • Add tactile feedback to chairs and couches for the ultimate gaming and movie experience
  • Small and easy to install even when space is at a minimum
Your Price: $17.98
MSRP: $22.99
Save $5.01 (22%)
Bulk Pricing
Quantity:Qty: 1-3 $17.98/ea
Quantity:Qty: 4+ $16.28/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Dayton Audio Tactile Transducer Mini Bass Shaker 8 Ohm TT25-8 PUCK is back in stock or available for preorder.

Estimated back in stock 7/18/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio Tactile Transducer Mini Bass Shaker 8 Ohm TT25-8 PUCK

The PUCK™ by Dayton Audio is a small, economical tactile transducer otherwise known as a mini bass shaker that is intended to be used in home theater, gaming, and auto sound applications. This mini bass shaker has the unique ability to transfer low frequency sound waves directly to the listener by mounting the PUCK™ to surface areas that a listener's body will come into contact with. Because the listener "feels" the low frequency, the volume of the overall sound can be kept to a minimum without sacrificing the audio quality.

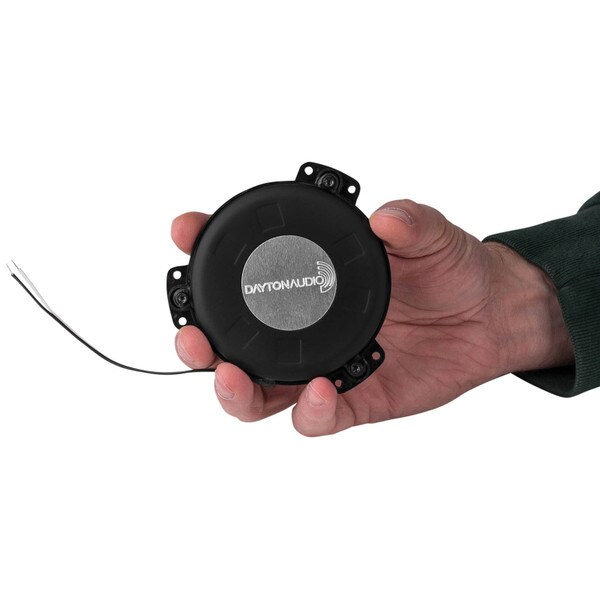

The PUCK measures a mere 3-1/2" diameter and 1" depth, nearly identical in size to an ice hockey puck. The small depth and diameter of the PUCK™ mini bass shaker make it uniquely suited for tight spaces and unobtrusive applications. 4 layer Voice Coil with 1" aluminum former. The included surface mounting ring makes the Puck easy to install directly onto any flat surface.

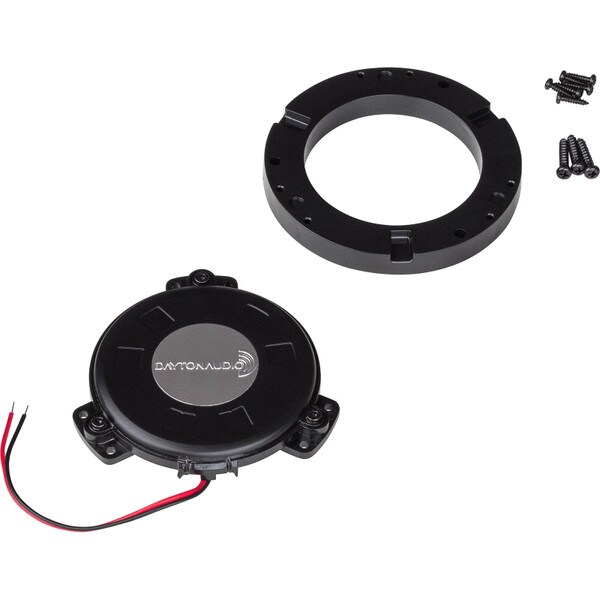

Includes Surface Mount Ring Kit (300-3882) to allow you to mount the PUCK transducer to any flat surface without the need for a mounting hole.

Specifications: • Power handling: 15 watts RMS/30 watts max • Impedance: 8 ohms • Re: 7.7 ohms • Le: 1.30 mH @ 1k Hz • Fs: 40 Hz • Usable frequency response: 20-80 Hz • Force peak: 30 lbs. per ft. total when used in 4 PUCK configuration • Dimensions: 3-1/2" dia. x 1" H • Cutout: 70 mm with 25 mm slot for wire pass through • Consult owners manual for cut-out template and wiring information.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelTT25-8
Part Number300-386
UPC848791000102
Unit of MeasureEach
Weight0.75

Product Specifications

ApplicationLow Frequency Bass Shaker
Power Handling (RMS)15 Watts
Impedance8Ω

Specifications
