Dayton Audio SPA100-D 100 Watt Class-D Subwoofer Plate Amplifier

Dayton Audio
Part #300-805

Dayton Audio SPA100-D 100 Watt Class-D Subwoofer Plate Amplifier

Dayton Audio
Part #300-805
The Dayton Audio SPA100-D high-efficiency subwoofer plate amp packs big-amp features into a compact chassis that is ideal for installation into cabinets that can't accommodate bulky old-style amps.
Key Features
  • 100W RMS Output @ 4 ohms
  • Switchable 6 dB @ 35 Hz bass boost
  • Class-D output stage for highly efficient, well defined output
  • Manual and Auto on/off modes for compatibility with any automated system
  • Variable gain, crossover point and switchable phase controls optimize room integration
  • Switchable 120/240V input voltage
  • With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise. We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.
Similar items that may interest you:
See all items in Subwoofer Plate Amplifiers
Your Price: $89.98
+ FREE SHIPPING
MSRP: $179.99
Save $90.01 (50%)
Bulk Pricing

Back-Ordered

Estimated back in stock 6/14/2024
Alert Me When Available
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio SPA100-D 100 Watt Class-D Subwoofer Plate Amplifier

Dayton Audio SPA100-D 100 Watt Class-D Subwoofer Plate Amplifier

The plate amplifier that packs a punch!

The Dayton Audio SPA100-D high-efficiency subwoofer plate amp packs big-amp features into a compact chassis that is ideal for installation into cabinets that can't accommodate bulky old-style amps. A Class-D topology makes it small, but with the same output capability as a traditional amplifier topology. We've included everything that you need to connect the amp to your system and get maximum performance!

Key Specs:




  • Channels: 1
  • Power Output @ 4 ohms (RMS): 100 Watts
  • Power Output @ 4 ohms (MAX): 200 Watts
  • Frequency Response: 20Hz - 200Hz
  • Inputs: 2x RCA Inputs
  • Outputs: 1x Powered Output

We Got Your Back

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Learn More


Phase Switch

Correct misalignment between your speakers and your subwoofer with a phase inversion switch

Variable Crossover

Maintain a smooth transition from your full-range speakers with a variable low-pass filter.

Bass Boost

Get maximum performance from smaller drivers and enclosures with a switchable 6dB boost at 35Hz.

Auto-On

When no signal is present, the SPA100-D will shut itself off until you need it most!

Class-D Excellence



The efficient class-D design keeps size and weight to a minimum while providing maximum power to your driver. SPA-D Amplifiers are perfect for subwoofer duty due to their high efficiency and low noise volume at lower frequencies making amplification selection easier than ever.

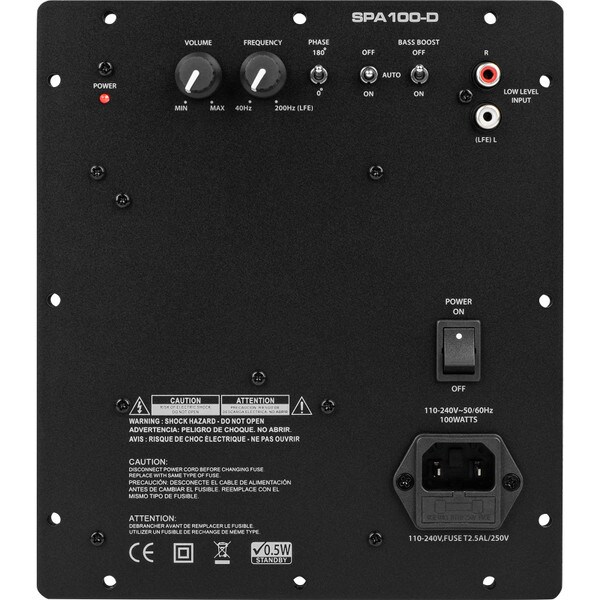

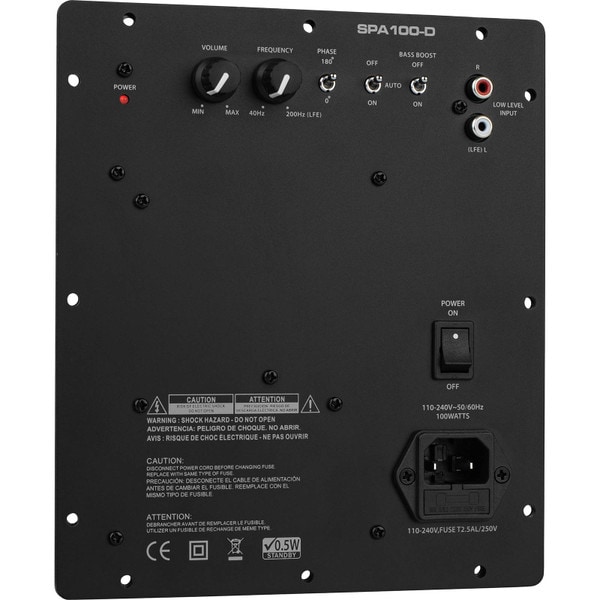

Connectivity




Front:

1. Power Input - This unit features an IEC Type power jack

2. Low-Level Inputs (Left/Right) - RCA Style jacks that will accept standard line level inputs from a pre-amp level source.

3. Output Lead for Subwoofer Driver - This rear mounted output lead connects the amplifier to the subwoofer driver

4. Power/Clipping LED - This LED indicator will display the current status of the amplifier.

5. Volume (Gain) - This control will match the amplifier's input sensitivity to the output of the pre-amp source.

6. Frequency (Low-pass crossover) - This sets the highest frequency the subwoofer will reproduce and has a range between 40-200Hz with a slope of 18dB/Oct.

7. Phase - This two-position switch helps to compensate for differences between the acoustical and electrical characteristics between the subwoofer and main speakers.

8. Auto Turn On/Off - When the "auto" position is selected the amp is in standby mode until an input signal is detected.

9. Bass Boost - This allows the user to add a 6dB boost to the response centered at 35Hz.

    10. Main Power Switch - Main power disconnect.



    Shop More Plate Amps

    Build your own high-quality integrated powered subwoofer speaker system, or upgrade an existing setup. The performance, features, and warranty of the amplifier solutions found at Parts Express far exceed those of many similar products. These amps are designed to "do it all" when matched with the appropriate subwoofer enclosure and loudspeaker driver.




    SPA300-D

    Shop Now

      SPA250

      Shop Now

      SPA500

      Shop Now

      SPA1000

      Shop Now

      Shop The Whole Subwoofer Plate Amp Selection


      Specifications:

      • Channels: 1
      • Power Handling (RMS): 100 Watts
      • Power Handling (MAX): 200 Watts
      • Frequency Response: 20 - 200Hz
      • Input Sensitivity: 180 mV
      • SNR, A-Weighted: 90 dB
      • Total Harmonic Distortion: <1%
      • Inputs: 1
      • Power Requirements: 115 - 230 VAC
      • Power Consumption: 100 Watts
      • Dimensions: 8-1/16" H x 7-1/16" W x 2-1/8" D
      • Cutout Dimensions: 7" H x 6" W
      • Weight: 1.6 lbs.

      Additional Resources

      We pride ourselves on being an authority in the speaker building and DIY community. With over 60 years of combined engineering experience, our team of engineers is here to help with your build. Below are some useful tools to get you started.

      Resource Center



      Product Details

      BrandDayton Audio
      ModelSPA100-D
      Part Number300-805
      UPC848791008214
      Unit of MeasureEach
      Weight2.7

      Product Specifications

      Power (RMS/Channel 8 ohms)51 - 100 Watts
      Weight Range< 10 lbs.
