Dayton Audio SAB-1060 SIM 7.3-Channel Sim Racer / Arcade Amplifier Board 10 x 60W

Dayton AudioPart # 325-510
Model: SAB-1060

The SAB-1060 is a highly flexible 10 channel amplifier with a built in 7.1 USB DAC as an input, or optional analog input board. Designed with gaming and simulation in mind, this compact amplifier allows you to create either a custom surround sound audio system for full immersion in games or movies, or a haptic feedback system with multiple zones of customized feedback. Using the SAB-1060 with the popular SimHub software you'll create the most real-life effects that will amaze everyone that sits down in your simulator chair.

Key Features

  • Utilize USB Audio input for 7.1 surround sound or for 8 individually controlled audio/bass effects via SimHub or other Software
  • Enhances the gaming and simulator experience with 60W of power to each of the 10 channels
  • All in one amplifier solution for custom arcade machines and gaming
  • Works perfectly with bass shakers and exciters (sold separately) for amazing special effects
  • Create a custom surround sound audio system for your PC (USB input only)

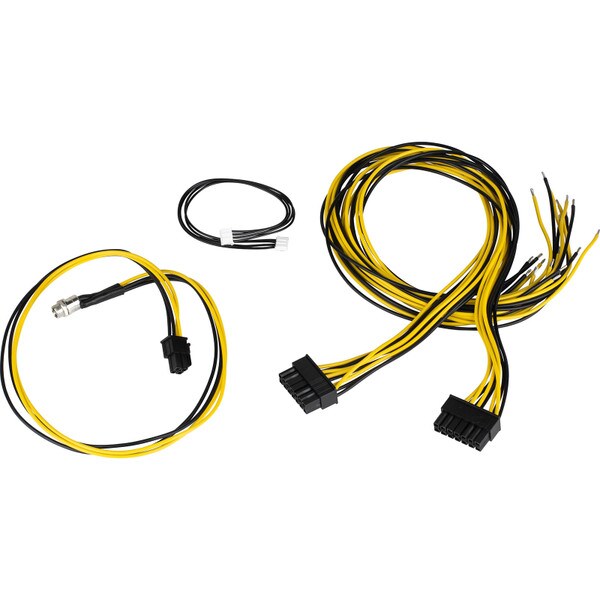

  • Includes DC power input and speaker wire harnesses for quick plug-n-play
  • Build complex active 2-way or 3-way speakers by swapping in the included analog input board and pairing the amp with an 8-channel DSP
Your Price: $79.98
MSRP:
Save $50.01 (38%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Dayton Audio SAB-1060 SIM 7.3-Channel Sim Racer / Arcade Amplifier Board 10 x 60W is back in stock or available for preorder.

Order in the next 1 hr 29 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio SAB-1060 SIM 7.3-Channel Sim Racer / Arcade Amplifier Board 10 x 60W

Upgrade Your Gaming or Simulation Experience

The SAB-1060 is the ultimate audio amplifier designed specifically for gaming and simulation enthusiasts. With its highly flexible 10 channels and built-in 7.1 USB DAC, this compact powerhouse takes your gaming experience to a whole new level. Whether you're a hardcore gamer seeking immersive surround sound or a simulation enthusiast in need of a haptic feedback system, the SAB-1060 has got you covered.

Imagine being transported into the virtual world with the most realistic and captivating audio effects. With the SAB-1060, you can effortlessly create a custom surround sound audio system that fully immerses you in games and movies. Every gunshot, explosion, and whisper will come alive, adding depth and dimension to your gaming or movie-watching experience. Get ready to be blown away by the incredible audio quality and precision this amplifier delivers.

Feel Gaming and Simulator Action

But that’s not all! Combined with the popular SimHub PC software, the SAB-1060 can be used as an additional sound card on your computer to create amazing haptic effects from your games. It is the perfect amplification solution for creating incredible simulation experiences in a constantly growing list of games, including your favorites such as Counter Strike 2, Assetto Corsa, iRacing, Farming Simulator, Truck Simulator, BeamNG, Forza and so many more! The SAB-1060 can be connected in addition to your main audio system and used exclusively for bass effects. SimHub generates custom bass effects from real time game data for feedback such as G-Forces, Road Impacts, Missed Gears, Engine Vibration and much more that is fully customizable. Feel the rumble as you race down the track! Start the action by checking out the 12 page SimHub ShakeIt quick start guide in our Manual and Resources section. For a full list of supported titles, see here. The SAB-1060 will undoubtedly upgrade your gaming setup to the next level and astonish anyone who takes a seat in your simulator.

Choose Ten Different Effects

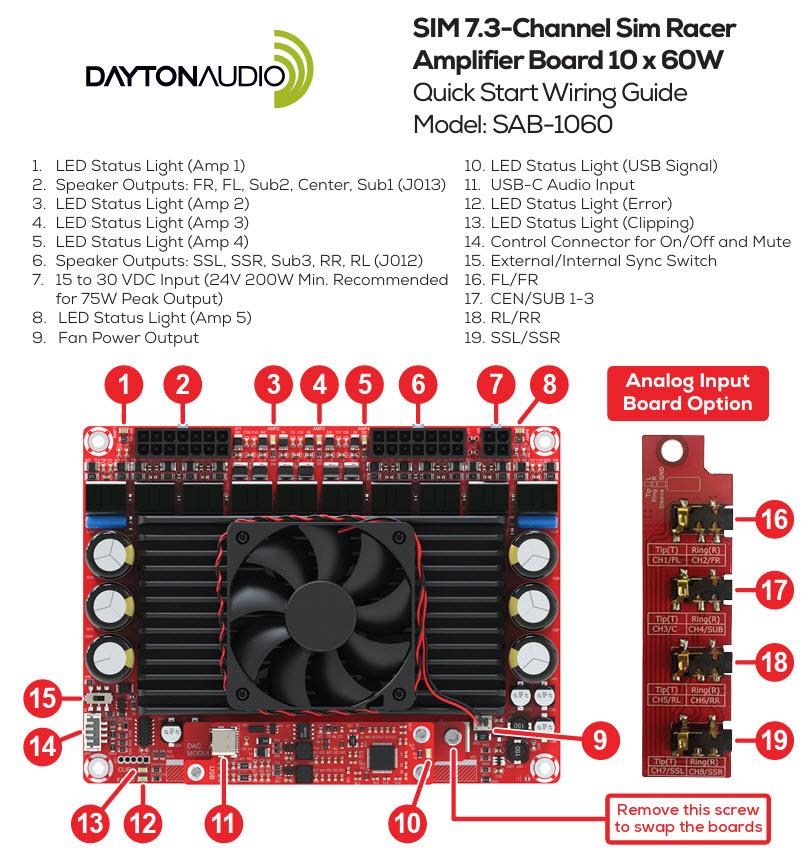

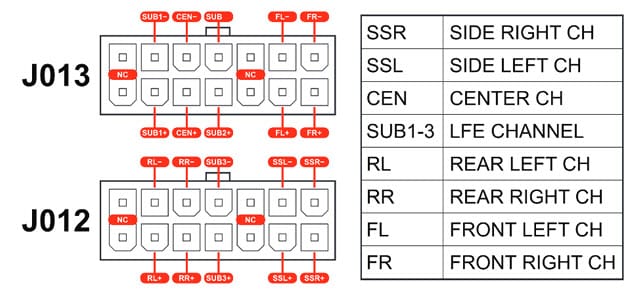

With the software above, choose the ten effects that match your simulator setup. Choose the tactile transduce/bass shaker that best simulates the effect. The wiring guide below helps identify each channel output.

Don't settle for ordinary when you can have extraordinary. Upgrade your gaming and simulation setup with the SAB-1060 and elevate your experience to new heights. Get ready to be engulfed in a world of rich, immersive sound and feel the thrilling sensations that will transport you into the heart of the action.

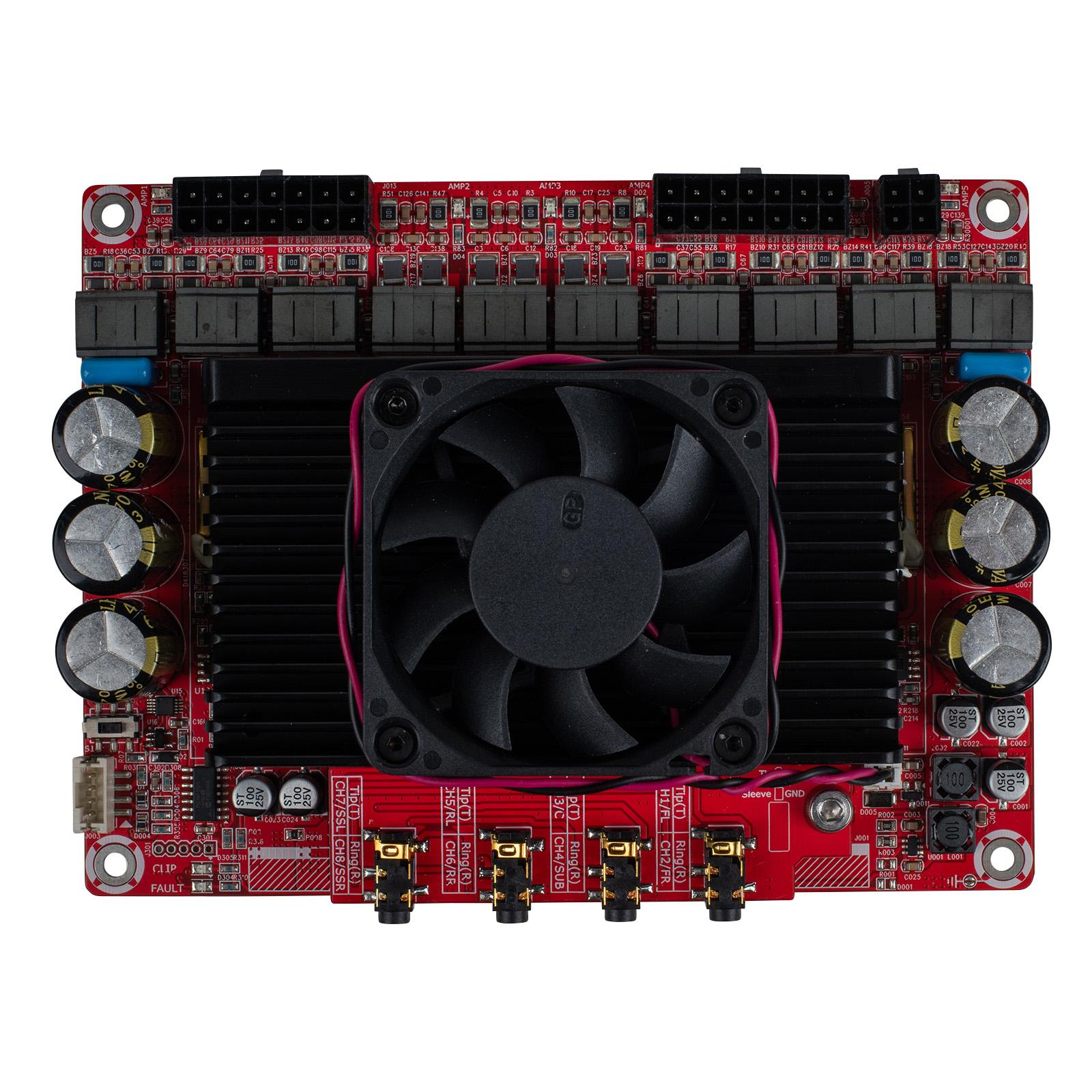

Analog 7.1 Input Board

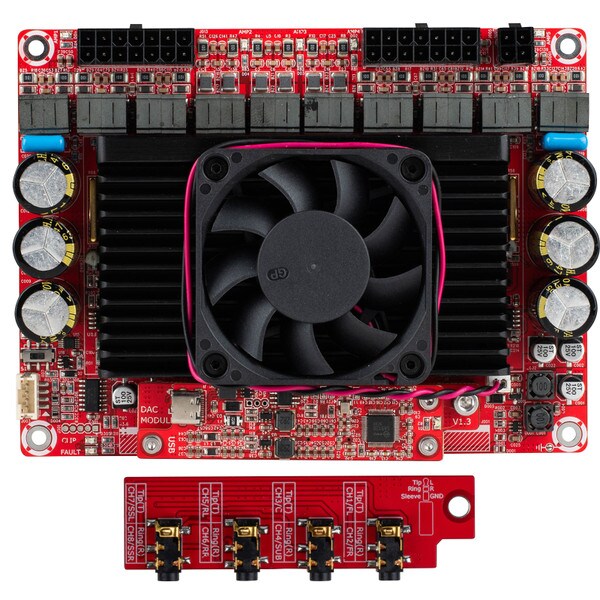

Build the speakers you’ve always wanted, without a rack full of amplifiers. The SAB-1060 includes an analog input board that turns it into a compact multichannel amp for DIY speaker projects. Pair it with an 8-channel DSP like the Dayton Audio AXIS-8, and you can use active crossovers to give every woofer, midrange, and tweeter its own amplifier channel. Drive a stereo pair of 3-way speakers or four 2-way speakers from one board delivering up to 60W per channel, while the DSP handles crossover points, EQ, and time alignment. Switching inputs is simple: remove one screw, lift out the USB input board, and plug in the analog board with its four 3.5 mm stereo jacks for eight channels of analog input. From custom speakers to home theater and other multichannel projects, the SAB-1060 does it all.

With its compact design, impressive features, and unparalleled performance, the SAB-1060 is the go-to amplifier board for any gaming, simulation, or home theater applications. For full wattage output performance use a 24 VDC 15A power supply (320-3167). For quick and easy hookup use our 24 VDC 5A power supply (120-055). Take the plunge and witness the power of the SAB-1060 for yourself. Get ready to experience gaming and simulation like never before.

Specifications:

  • Power Output (w/ 24 VDC 15A Power Supply): 10 x 50W @ 4 ohms 1 kHz
  • Voltage Input Range: 15 to 30 VDC, 150W to 750W Max
  • Voltage Input and Speaker Output Connector: Mini-Fit Jr.
  • Audio Input: USB-C digital or Line level analog
  • Frequency Response: 20 to 20,000 Hz (± 1 dB)
  • SNR: 101 dB
  • THD: 0.05 @ 10W 1 kHz 4 ohm
  • Line Level Input Impedance: 10K ohms
  • Speaker/Load Impedance: 4-16 ohms
  • Board Dimensions (Including Fan): 6" W x 4.5" D x 1.13" H (152.4 x 114.3 x 28.6 mm)
  • Mounting Hole Diameter and Center-to-Center: 0.15" (3.8 mm) diameter, 5.6" W x 4.1" D (142 x 104 mm)

Product Details

BrandDayton Audio
ModelSAB-1060
Part Number325-510
UPC848791010194
Unit of MeasureEach
Weight1.75

Product Specifications

Board Type10 Channel Amp
Power (RMS/Channel 8 ohms)26 - 50 Watts
