  • Dayton Audio SA230 230W Subwoofer Amplifier

CLEARANCE Dayton Audio SA230 230W Subwoofer Amplifier

Dayton AudioPart # 300-813
Model: SA230
The Dayton Audio SA230 subwoofer amplifier offers its owner the freedom to use a stand-alone, high quality amplifier to operate a subwoofer speaker system.

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Key Features

  • Heavy-duty steel chassis with black brushed aluminum faceplate
  • Mono Class AB output stage for solid, well defined output

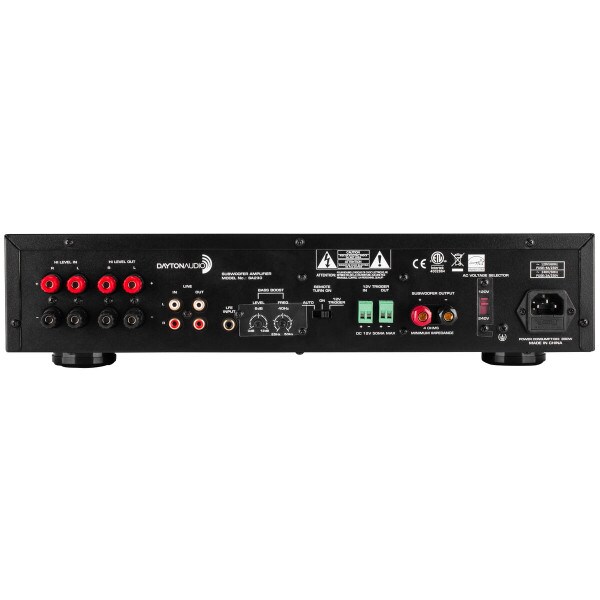

  • Low-level, high-level, and LFE inputs
  • Manual, auto, or triggered on/off modes for integration into any automated system
  • 18 dB/octave low pass filter
  • Selectable bass boost

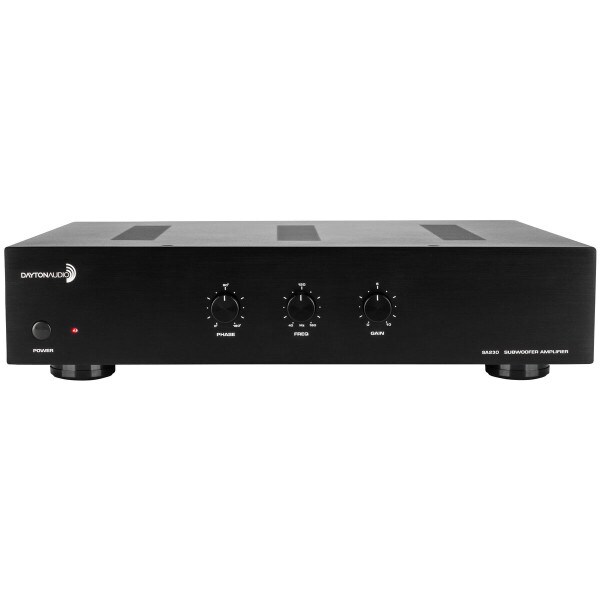

  • Adjustable phase, gain, and crossover
Similar items that may interest you:
4-Pin Vacuum Tube Socket Gold Plated Ceramic for 300B 811 2A3
Price: $11.98Part # 055-530
Dayton Audio Stereo / Bridgeable Amplifier 150 Watt APA150
Price: $209.98Part # 300-812
See all items in Subwoofer Amplifiers
Get Notified When Available

We'll send you an email when Dayton Audio SA230 230W Subwoofer Amplifier is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Dayton Audio SA230 230W Subwoofer Amplifier

Dayton Audio's SA230 subwoofer amplifier delivers all of the clean, solid power required to drive small-to-medium sized subwoofer speaker systems. Its tabletop design is compatible with many other popular electronic devices and different styles of multimedia furniture. The SA230 is engineered to provide high fidelity subwoofer amplification and is tailored for home audio and home theater audio systems. Its variable gain, bass boost, crossover frequency, and phase adjustment guarantee perfect integration with any audio system in any listening environment. Short circuit and thermal protection built-in.

Specifications: • Rated power output (1% THD): 156 watts into 8 ohms, 233 watts into 4 ohms • Signal to noise ratio: 85 dB A-weighted • Input impedance: 12K ohms • Input sensitivity: 75 mV • Gain: 0 dB to +10 dB • Bass boost: 25 Hz to 50 Hz • Low pass adjustment: 40 Hz to 180 Hz @ 18 dB/octave • Phase adjustment: 0° to 180° • Dimensions: 17-1/4" W x 3-3/4" H x 13-7/8" D • Power requirements: 120/230 VAC, 50/60 Hz • Stand-by power rating: 120V 0.82W • Weight: 21.05 lbs.

With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise. We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Product Details

BrandDayton Audio
ModelSA230
Part Number300-813
UPC844632089572
Unit of MeasureEach
Weight21.05

Product Specifications

Power (RMS/Channel 8 ohms)101 - 250 Watts
Weight Range10 to 19 lbs.
