Dayton Audio RSS265HO-44 10" Reference Series HO DVC Subwoofer

Dayton Audio
Part #295-463

Dayton Audio RSS265HO-44 10" Reference Series HO DVC Subwoofer

Dayton Audio
Part #295-463
The RSS265HO-44 10" High Output Reference Subwoofer from Dayton Audio is designed for high power handling and extremely low distortion. A small enclosure requirement allows it to be used in car audio and space limited home audio applications.
Key Features
  • Dual 4 ohm voice coils for many wiring options
  • Extensively vented motor eliminates compression and allows quiet excursion
  • Extra-thick black anodized aluminum cone for maximum rigidity
  • Triple shorting-ring motor for ultra-low distortion
  • Parameters optimized for small enclosures
  • Highest quality materials throughout for long-lasting performance
Similar items that may interest you:
See all items in Subwoofer Drivers
Your Price: $209.98
+ FREE SHIPPING
MSRP: $259.99
Save $50.01 (19%)
Bulk Pricing
Quantity:Qty: 1-3 $209.98/ea
Quantity:Qty: 4+$202.91/ea
Order in the next 0 hr 20 min to ship today. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

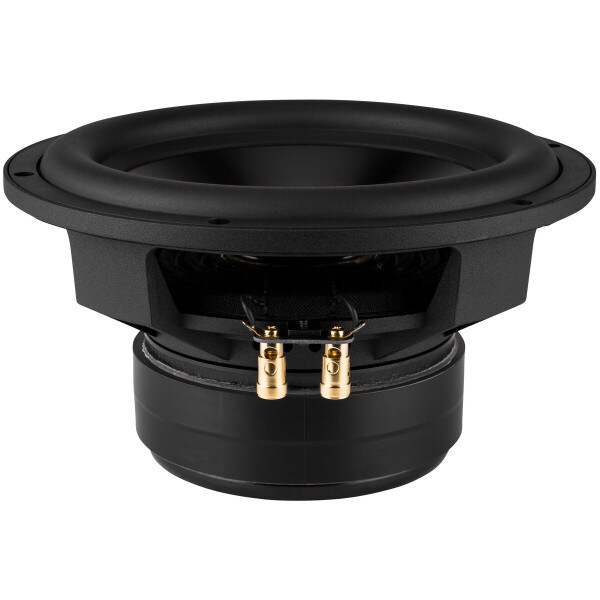

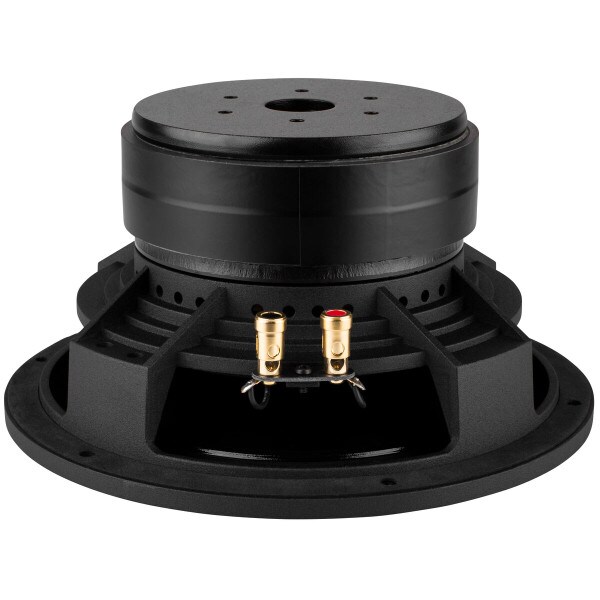

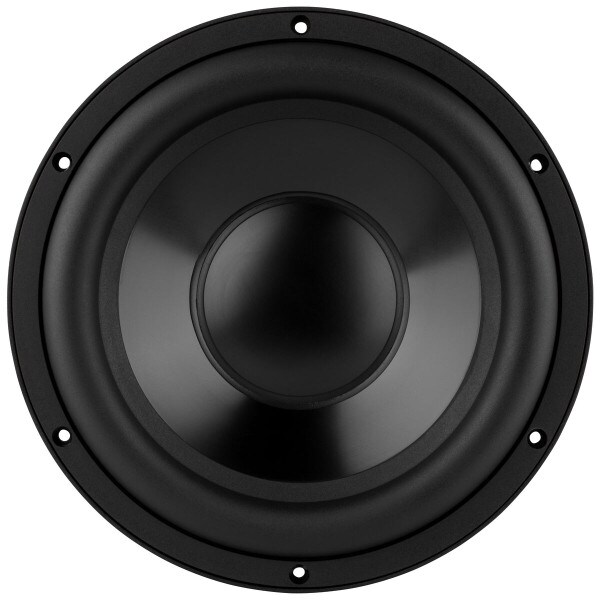

Dayton Audio RSS265HO-44 10" Reference Series HO DVC Subwoofer

Dayton Audio's 10" RSS265HO-44 High Output Reference Series subwoofer is purpose-built for moving lots of air, extreme power handling, extremely low distortion... and it does it all with an extremely small enclosure requirement! The minimum airspace optimization of this driver makes it perfect for car audio automotive applications and limited space home audio applications.

 To minimize distortion, three copper short-circuit paths are built into the motor. This reduces second, third, and intermodulation distortion to levels only attained previously by expensive, exotic subwoofers. A side benefit is reduced energy storage and inductance, making the RSS265-HO-44 a very musical subwoofer. In fact, frequency response remains very flat up to 500 Hz.

 Additional features include: a heavy gauge black anodized aluminum cone that resists deformation from extreme air pressure levels found inside of small sealed enclosures, a fully ventilated motor for reduced power compression, a rigid cast aluminum frame for structural integrity, and a tough rubber surround that won't wear down over years of use. Dual 4-ohm voice coils allow for a wide array of wiring options.

 As with all Dayton Audio subwoofers, you receive a full 5-year warranty. Designed and engineered in the U.S.A.

The Dayton Audio RSS265HO-4 is used in the following kit:

Dayton Audio 10" Reference Series HO DVC Subwoofer and Starter Enclosure Package

Including the Dayton Audio RSS265HO-44 10" Reference Series dual voice coil subwoofer and a matching subwoofer starter kit this package makes it easy to build your own custom DIY subwoofer with minimal tools. You just need to make the top, bottom, sides, and back using all straight cuts with no tricky dadoes or rabbets required to complete your own ultra-low distortion compact subwoofer.

VIEW KIT

Note: This is a dual voice coil driver, 4 ohms per coil. Specifications below were measured with the voice coils wired in parallel for a 2 ohm load.

Product Details

BrandDayton Audio
ModelRSS265HO-44
Part Number295-463
UPC848791000324
Unit of MeasureEach
Weight17.2

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.75
Power Handling (RMS)600 Watts
Power Handling (MAX)1200 Watts
Impedance2Ω
Frequency Response25 to 600Hz
Sensitivity90.5dB 2.83V/1m
Voice Coil Diameter2.58"

Thiele-Small Parameters

Resonant Frequency (Fs)27.6Hz
DC Resistance (Re)1.6Ω
Voice Coil Inductance (Le)0.77mH
Mechanical Q (Qms)4.42
Electromagnetic Q (Qes)0.5
Total Q (Qts)0.45
Compliance Equivalent Volume (Vas)1.23ft³
Mechanical Compliance of Suspension (Cms)0.21mm/N
BL Product (BL)9.39T·m
Diaphragm Mass Inc. Airload (Mms)161g
Maximum Linear Excursion (Xmax)13.25mm
Surface Area of Cone (Sd)352.3cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.5"
Baffle Cutout Diameter9.25"
Depth5"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.6ft³
Sealed F349Hz
Vented Volume1.5ft³
Vented F325Hz
