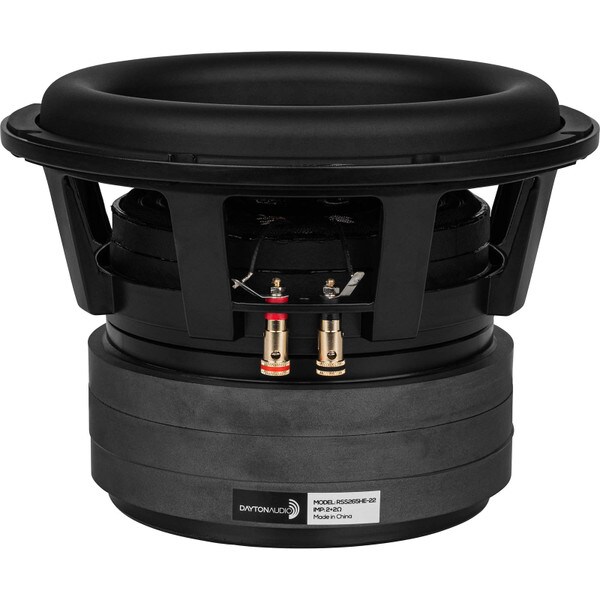

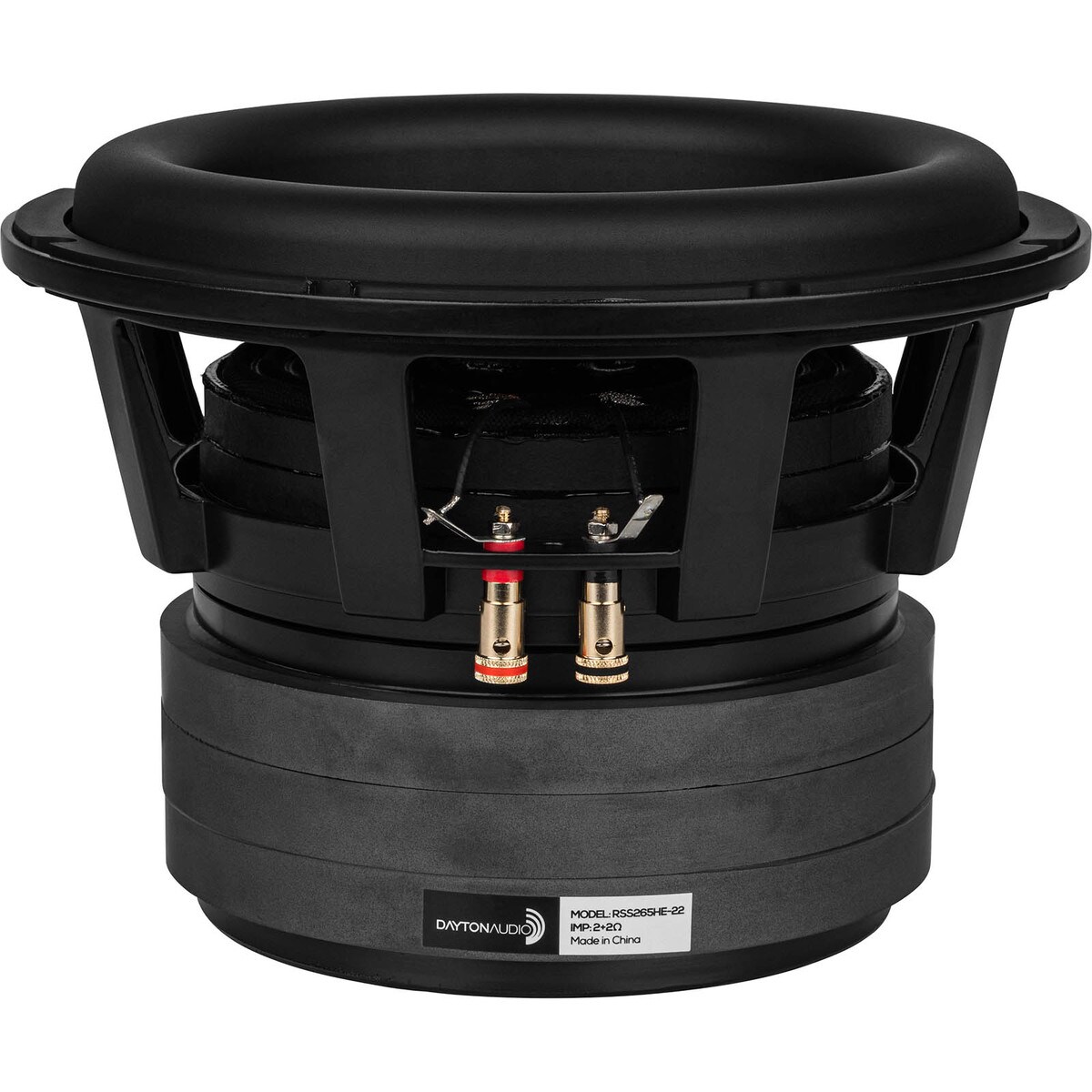

Dayton Audio RSS265HE-22 10" Reference Series High Excursion Subwoofer 2+2 ohm

Dayton Audio
Part #295-290

Dayton Audio RSS265HE-22 10" Reference Series High Excursion Subwoofer 2+2 ohm

Dayton Audio
Part #295-290
Dayton Audio’s RSS265HE-22 10" Reference Series high excursion dual voice coil subwoofer sets a new standard for controlled bass response from small enclosures. With a rigid aluminum cone, large copper shorting ring, and thick aluminum sleeve the RSS265HE-22 delivers ultra low distortion. A 3” voice coil, massive motor assembly, and 25 mm Xmax gives it the capability to produce remarkable output levels. This massive 10” is perfect for anyone looking for maximum low frequency response, earth shaking impact, and incredibly clean output.
Key Features
  • Designed for maximum excursion and extended low frequency response from small enclosures
  • Copper ring and thick aluminum sleeve minimize inductance to deliver ultra-low distortion
  • Large 3” diameter voice coil is wound on a spiral cut aluminum former allowing high power handling
  • Thick aluminum cone and dustcap improves heat dissipation to keep power compression under control
  • Optimized venting for maximum airflow across the voice coil with extremely quiet operation
  • Dual spiders and high roll surround reduce rocking modes during high displacement
  • Dual 2 ohm voice coils give you the ability to get maximum power out of most amplifiers
Similar items that may interest you:
See all items in Subwoofer Drivers
Your Price: $190.78
+ FREE SHIPPING
MSRP: $337.99
Save $147.21 (44%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio RSS265HE-22 10" Reference Series High Excursion Subwoofer 2+2 ohm

Dayton Audio 10" Reference HE Subwoofer



The RSS265HE-22 10" Reference Series high excursion subwoofer from Dayton Audio will generate incredible bass response with unparalleled detail, control, and SPL capability. Engineered for maximum linear displacement with extensive inductance control, this massive subwoofer produces unmatched low frequency extension and high output with the lowest possible distortion. Optimized for small enclosures and with dual 2-ohm voice coils, the RSS265HE-22 is flexible enough to add breath taking bass to high output home and car audio designs.



Key Specifications:


  • Nominal Diameter: 10"
  • Xmax: 25mm (50 mm peak-to-peak)
  • Power Handling (RMS):  800 Watts
  • Power Handling (MAX): 1600 Watts
  • Impedance: Dual Voice Coil, 2 Ohms Per Coil
  • Frequency Response: 25 to 900 Hz
  • Sensitivity: 84.9dB 2.83V/1m
  • Voice Coil Diameter: 3"
  • Full Specs

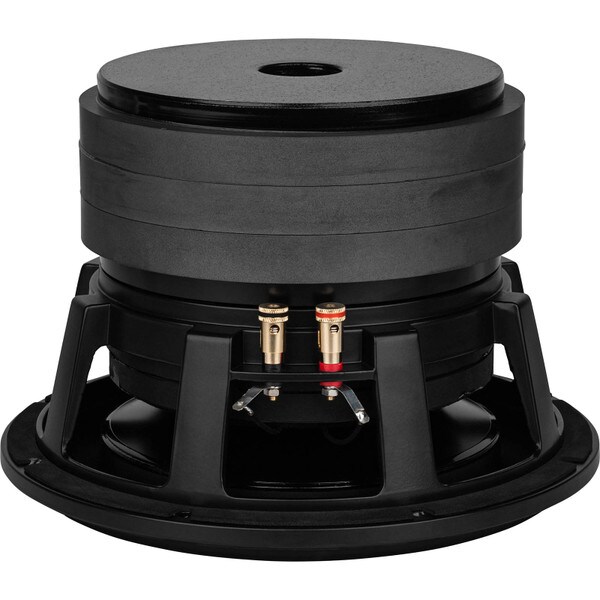

Remarkably powerful low distortion motor





In order to keep precise control of the cone when driven to high excursion, the RSS265HE-22 requires an incredibly powerful motor. A stack of 3 high energy Y-35 ferrite magnets is used to provide the force needed while allowing ample clearance for the voice coil to travel without impacting the back plate. A copper ring and thick aluminum sleeve helps minimize stored energy and lower inductance as the coil travels through the motor. This massive motor assembly gives the RSS265HE-22 the ability to produce extremely low distortion and accurate response even when driven to the limits of its 50 mm peak-to-peak excursion.



Amazing power handling with low power compression



Driving the cone is a large 3” diameter voice coil wound on a thick aluminum former that is capable of dissipating enough heat to handle up to 800 watts RMS. A spiral spit in the former minimizes the eddy currents that are induced into any conductive former, to further lower inductance and distortion. The venting through the voice coil former and pole piece delivers ample airflow across the coil while minimizing turbulence to allow quiet operation when pushed to high displacement. In addition, the copper ring and aluminum sleeve improve heat transfer to the pole piece and magnet assembly, more efficiently absorbing heat away from the coil. All of this gives the RSS265HE-22 the ability to reliably handle tons of power without suffering from significant power compression, even when pushed hard for extended periods.



Optimized suspension for maximum linear stroke



In order to accommodate the 25 mm Xmax, the RSS265HE-22 required flexible suspension that permits linear movement to keep the voice coil centered even when driven beyond the limits of excursion. A custom tooled high roll surround maintains surface area and allows an incredible amount of travel without tightening up or distorting. Dual progressive spiders with integrated tinsel leads support the cone and voice coil. The spiders are optimized to begin restricting movement just as the driver reaches Xmax to protect from catastrophic damage in the event of excessive dynamic peaks. In addition, the spiders have significant space between them to keep the coil centered in the tight magnetic gap. Every aspect of the suspension on the RSS265HE-22 has been designed to reliably deliver extreme excursion capability without adding significant distortion.

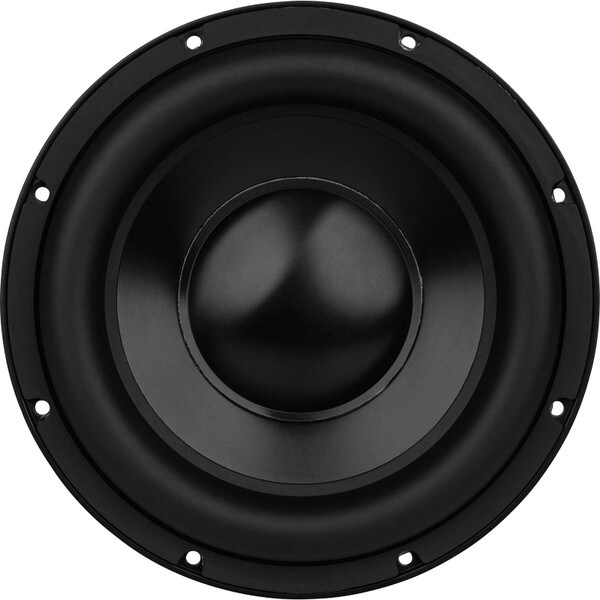

Aluminum cone and dustcap... a Reference series tradition





To visually fit in with the rest of the popular Reference Series Subwoofers, the RSS265HE-22 uses a rigid anodized aluminum cone and dustcap. The cone is significantly thicker to withstand the force that will be applied with such a powerful motor and to increase mass for a low Fs. Thanks to the rigidity and natural damping properties of aluminum, any cone breakup is pushed well outside of the pass band giving the RSS265HE-22 exceptionally flat response, even throughout the mid-bass and lower midrange frequencies. In addition, aluminum is an excellent conductor of heat, turning the entire cone and dustcap assembly into a large heatsink that effectively wicks heat away from the voice coil to further control power compression.




Shop All Reference Series

Incredible flexibility to add powerful bass to any system



The specs of the RSS265HE-22 have been balanced to operate in a variety of situations. Extended low frequency extension makes it ideal for subwoofer use in home audio and theater systems. With extremely small enclosure requirements, the RSS265HE-22 is also an excellent choice for use in high output car audio designs. Also, dual 2-ohm voice coils allow for stereo 2-ohm or mono 1-ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a more common 4-ohm load for greater amplifier compatibility. All of the Reference Series HE drivers are built to provide amazing low frequency response with unbelievable power, impact, and detail.





    Home theater/stereo recommended alignments:

  • Sealed (home theater/music): .70 cubic ft. (gross internal, including driver) for an f3 of 60 Hz, f10 of 29 Hz with a Qtc of 0.50
  • Vented (home theater/music): 2.37 cubic ft. (gross internal, including driver and port) tuned to 23 Hz, with 1 4” diameter x 29” long flared vent, for an f3 of 21 Hz
  • Passive radiator: 1.14 cubic ft. (gross internal, including driver and passive), using the RSS315-PR 12” passive radiator with all 6 disks of added mass, for an f3 of 24 Hz
  • Infinite Baffle: Not recommended

    Car audio recommended alignments:

  • Sealed (maximum sound quality): 0.53 cubic ft. (gross internal, including driver) for an f3 of 60 Hz with a Qtc of .54
  • Passive radiator (sound quality with extended low frequency extension): 0.60 cubic ft. (gross internal, including driver and passive), using the RSS315-PR 12” passive radiator with all 6 disks of added mass, for an f3 of 29 Hz
  • Vented (maximum SPL): 1.5 cubic ft. (gross internal, including driver and ports) tuned to 40 Hz, with 2 x 3” diameter x 16” long flared vents, for an f3 of 32 Hz with a +6 dB peak at 42 Hz.

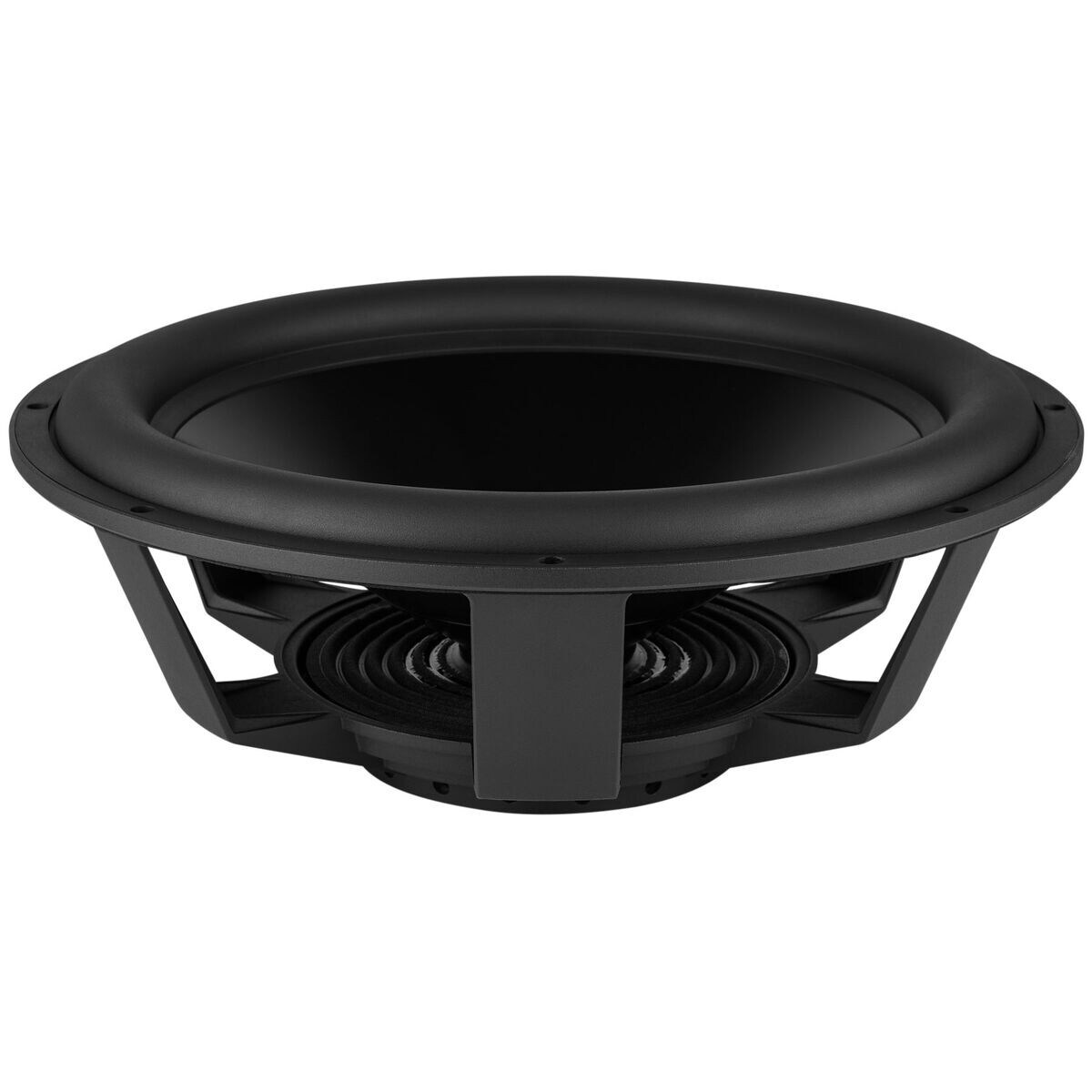

Dayton Audio RSS460-PR 18"

Add the Dayton Audio RSS460-PR 18" Passive Radiator to your builds. With nearly twice the displacement capability of the RSS390HE-22, this passive radiator will be a great match for many designs.

Dayton Audio's RSS460-PR 18" passive radiator is the ideal choice for tuning small enclosures lower than possible with a conventional port. With a thick aluminum cone, cast frame, rubber surround, and incredible excursion capabilities (68 mm peak to peak), this radiator is perfect for today's high excursion subwoofers.



RSS460-PR 18" Passive Radiator


Show Off Your Builds

Build by Scott G.

Submit your projects to receive a 6-month digital subscription to audioXpress magazine.

We've Got Your Back

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Shop All Reference HE Series Subwoofers

Dayton Audio's Reference HE Series Subwoofers provide high excursion and extended frequency ranges. The dual voice coil subs set a new standard for controlled bass response from small enclosures. With rigid aluminum cones, large copper shorting rings, and thick aluminum sleeves the Reference HE Series deliver powerful low frequency output with ultra-low distortion. Available in 3 sizes 10", 12", and 15".

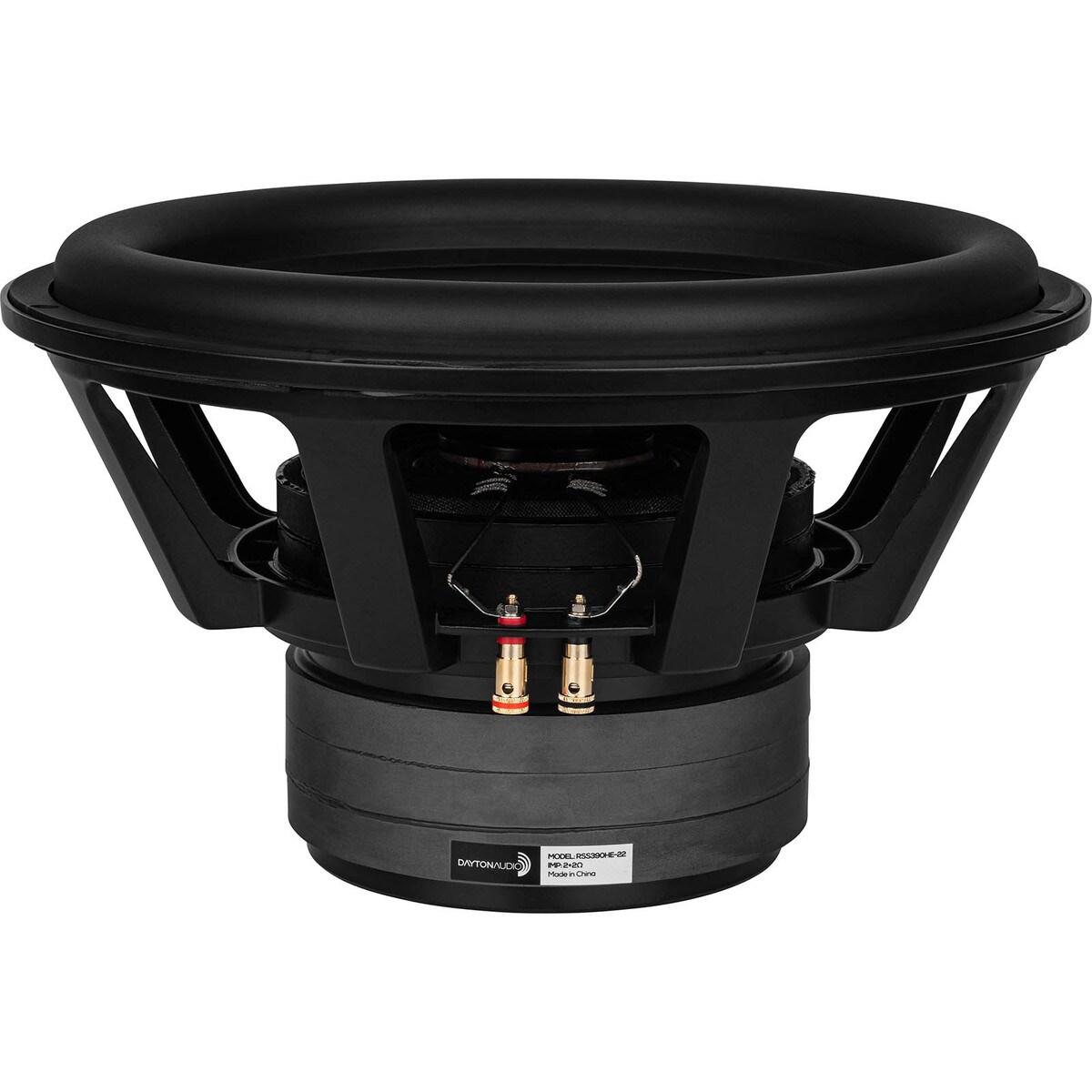

RSS390HE-22 15"

  • Nominal Diameter: 15"
  • XMax: 27 mm (54 mm peak-to-peak)
  • Frequency Response: 20-600Hz
Shop Now

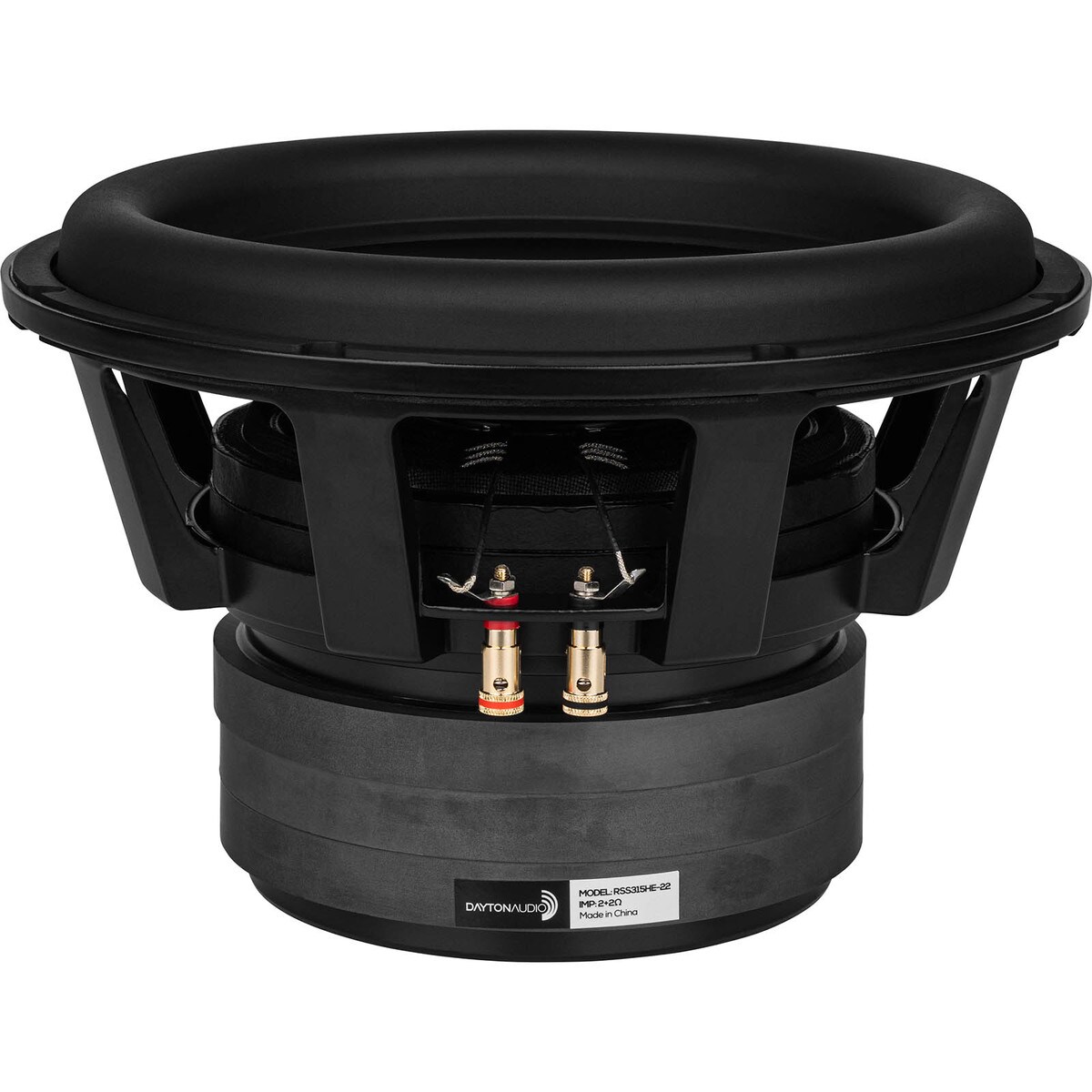

RSS315HE-22 12"

  • Nominal Diameter: 12"
  • Xmax: 25 mm (50 mm peak-to-peak)
  • Frequency Response: 25-750Hz
  • Shop Now



RSS265HE-22 10"

  • Nominal Diameter: 10"
  • Xmax: 25 mm (50 mm peak-to-peak)
  • Frequency Response:  25-900Hz
Shop Now

Shop All Reference HE Series


Note: All specifications measured with the voice coils wired in series.

Product Details

BrandDayton Audio
ModelRSS265HE-22
Part Number295-290
UPC848864058344
Unit of MeasureEach
Weight32.4

Product Specifications

Nominal Diameter10"
Power Handling (RMS)800 Watts
Power Handling (MAX)1600 Watts
Impedance4Ω
Frequency Response25 to 900Hz
Sensitivity84.9dB 2.83V/1m
Voice Coil Diameter3.01"

Thiele-Small Parameters

Resonant Frequency (Fs)30Hz
DC Resistance (Re)4.3Ω
Voice Coil Inductance (Le)2.1mH
Mechanical Q (Qms)4.34
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)0.576ft³
Mechanical Compliance of Suspension (Cms)0.11mm/N
BL Product (BL)21.7T·m
Diaphragm Mass Inc. Airload (Mms)244g
Maximum Linear Excursion (Xmax)25mm
Surface Area of Cone (Sd)316cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.47"
Baffle Cutout Diameter9.25"
Depth6.81"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.75ft³
Sealed F375Hz
Vented Volume1.5ft³
Vented F328Hz
