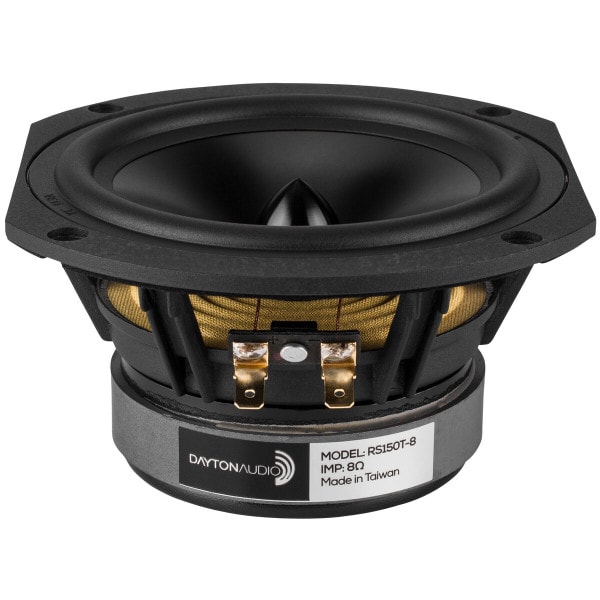

CLEARANCE Dayton Audio RS150T-8 6" Reference Woofer Truncated Frame

Dayton AudioPart # 295-342
Model: RS150T-8
Dayton Audio Reference Series RS150T-8 6" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

Key Features

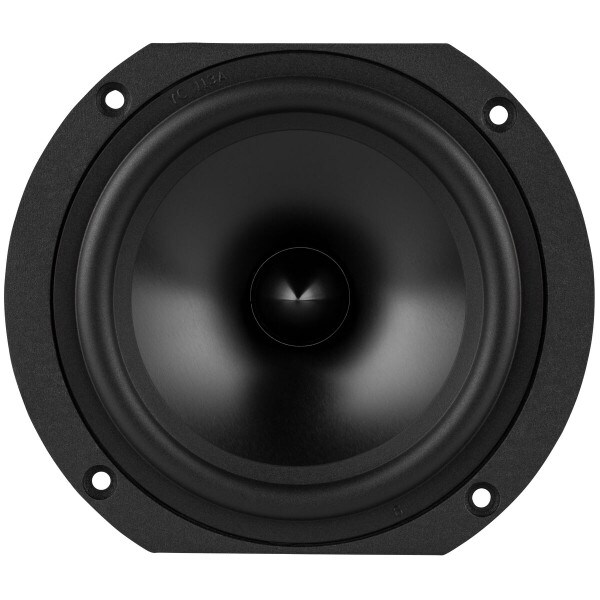

  • Truncated cast frame - great for line arrays and MTM speaker designs
  • Long-excursion motor and suspension for strong bass performance
  • Advanced low-distortion motor design
  • Lightweight black anodized aluminum cone
Get Notified When Available

We'll send you an email when Dayton Audio RS150T-8 6" Reference Woofer Truncated Frame is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Dayton Audio RS150T-8 6" Reference Woofer Truncated Frame

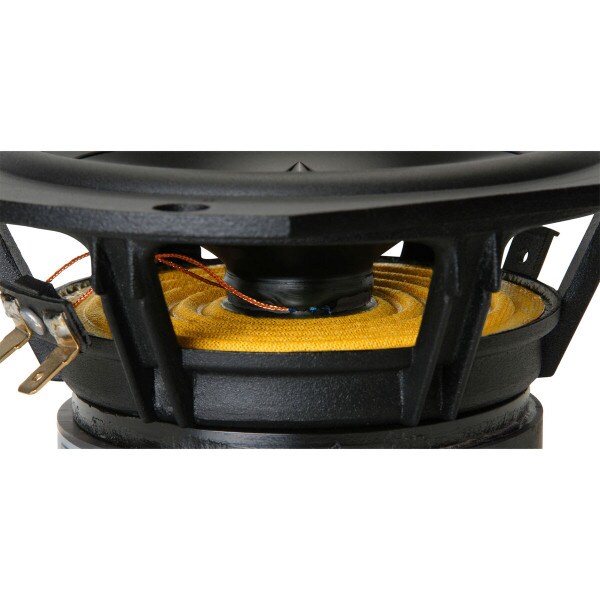

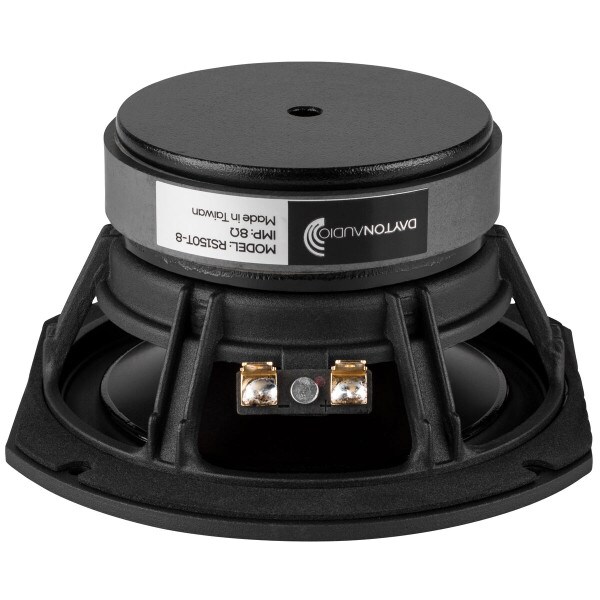

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty cast frame, low-loss rubber surround, solid aluminum phase plug, rubber magnet boot, and gold terminals.

Product Details

BrandDayton Audio
ModelRS150T-8
Part Number295-342
UPC844632067655
Unit of MeasureEach
Weight2.6

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter5.43
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance8Ω
Frequency Response47 to 4,200Hz
Sensitivity87.9dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)46.4Hz
DC Resistance (Re)6.2Ω
Voice Coil Inductance (Le)0.61mH
Mechanical Q (Qms)1.67
Electromagnetic Q (Qes)0.47
Total Q (Qts)0.37
Compliance Equivalent Volume (Vas)0.51ft³
Mechanical Compliance of Suspension (Cms)1.42mm/N
BL Product (BL)5.7T·m
Diaphragm Mass Inc. Airload (Mms)8.3g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)85cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.12" across flats, 5.91"
Baffle Cutout Diameter4.78"
Depth2.79"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.25ft³
Sealed F3117Hz
Vented Volume0.33ft³
Vented F357Hz
