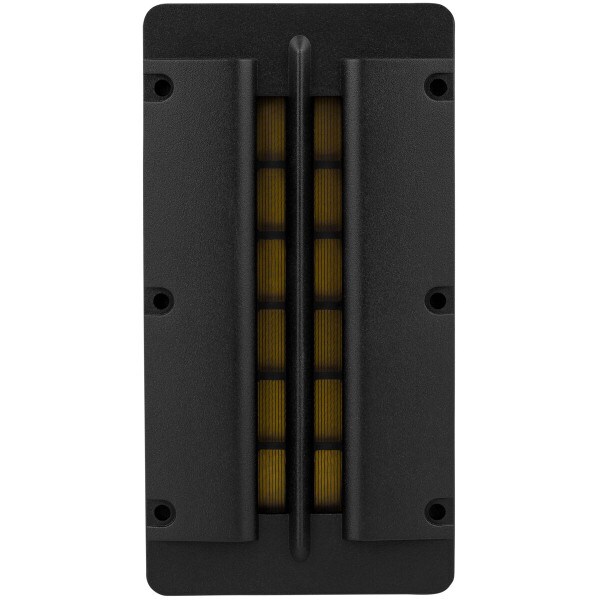

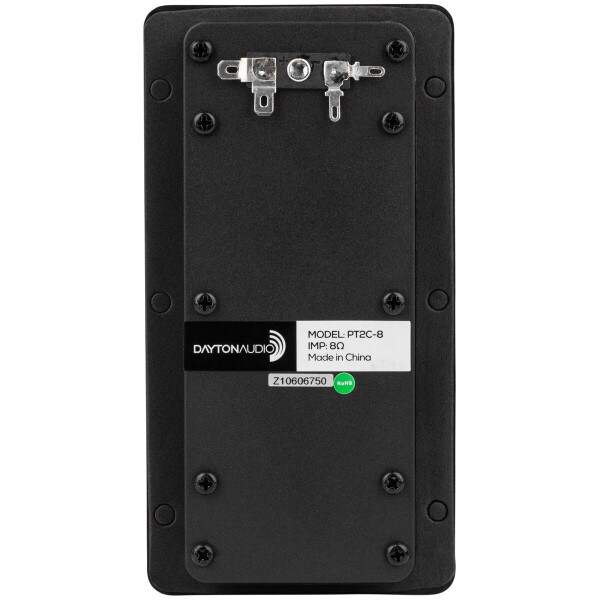

Dayton Audio PT2C-8 Planar Tweeter

Dayton Audio
Part #275-085

Dayton Audio PT2C-8 Planar Tweeter

Dayton Audio
Part #275-085
The immediacy and lack of coloration found in planar-type tweeters offers users extremely detailed, effortless high frequency reproduction. The Dayton Audio PT2C-8's physical shape and wide horizontal/narrow vertical dispersion also make it an obvious choice for line arrays.
Key Features
  • Superb resolution and detail for the most discerning audiophile
  • Wide horizontal and narrow vertical dispersion patterns
  • Perfect for use in line arrays
  • 3 kHz recommended crossover frequency at 12 dB per octave
Similar items that may interest you:
See all items in Planar / Ribbon Transducers
Your Price: $64.98
+ FREE SHIPPING
MSRP: $84.99
Save $20.01 (24%)
Bulk Pricing
Quantity:Qty: 1-3 $64.98/ea
Quantity:Qty: 4+$58.48/ea
Order in the next 0 hr 56 min to ship today. Details

Only 7 In Stock

More due on 8/23/2024
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio PT2C-8 Planar Tweeter

Many audiophiles praise the Dayton Audio PT2C-8 ribbon tweeter's excellent clarity, transparency, and imaging. The key to this remarkable performance is the almost weightless ribbon element: a Kapton film membrane etched with a pattern of aluminum conductors and placed precisely between two rows of neodymium magnets. The result is an immediate response to any transient impulse found in the original signal.

The Dayton Audio PT2's ability to deliver musical detail is clearly amazing. The tweeter's large membrane and radiating area provide higher power handling and a substantially lower cut off frequency. This membrane is thermally attached to a cast aluminum plate that facilitates cooling and dramatically increases dynamic range. The flared waveguide's wide horizontal dispersion projects an excellent off axis response. At the same time, vertical dispersion is limited, which reduces distracting floor and ceiling reflections. Perfect for line array applications. The recommended second order crossover cut-off frequency is 3 kHz or higher, although the crossover point can be lowered to 2,500 Hz if a 3rd order crossover is used.

Product Details

BrandDayton Audio
ModelPT2C-8
Part Number275-085
UPC844632026133
Unit of MeasureEach
Weight1.3

Product Specifications

Cutout Diameter6.14" x 2.52
Tweeter TypePlanar
Power Handling (RMS)80 Watts
Impedance8Ω
Frequency Response2,000 to 26,000Hz
Sensitivity94dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1607Hz
DC Resistance (Re)6.6Ω
Voice Coil Inductance (Le)0.15mH
Mechanical Q (Qms)1.86
Total Q (Qts)1.78

Mounting Information

Overall Outside Diameter6.61" x 3.46"
Depth1.09"
