  • Dayton Audio PS65LP-4 6-1/2" Ultra Efficient Low Profile Full-Range Driver 4 Ohm

CLEARANCE Dayton Audio PS65LP-4 6-1/2" Ultra Efficient Low Profile Full-Range Driver 4 Ohm

Dayton Audio
Part #295-348

CLEARANCE Dayton Audio PS65LP-4 6-1/2" Ultra Efficient Low Profile Full-Range Driver 4 Ohm

Dayton Audio
Part #295-348
The Dayton Audio PS65LP-4 6-1/2" high efficiency full-range driver could be the ultimate upgrade for your factory stereo system. Designed to be a simple drop in replacement for your stock speakers, this driver's amazing efficiency can increase the output by up to 10 dB without adding any additional amplification. Also, this is an excellent driver for use in any high efficiency full range speaker designs.
Key Features
  • Ultra-efficient, high SPL (99 dB @ 2.83V/1m*) high-performance driver
  • Low-profile 2-3/8" mounting depth suitable for car doors or any shallow designs
  • Smooth high frequency roll-off even at 75° off-axis

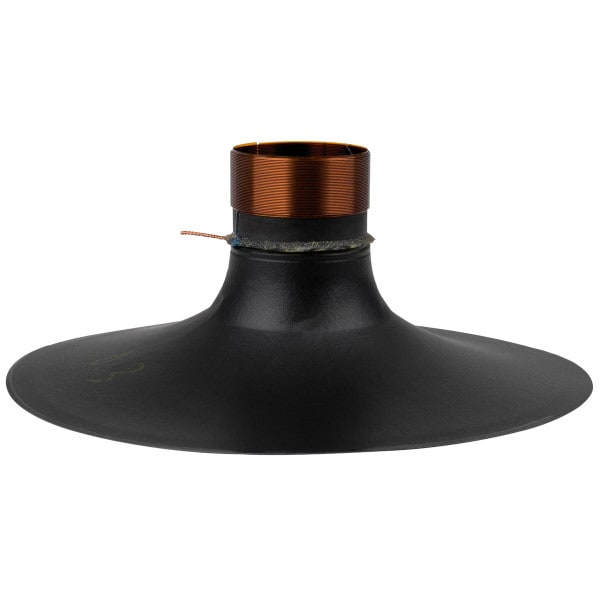

  • Unique patent-pending bi-conical cone geometry provides high frequency extension and dispersion, as well as cone rigidity
  • Highly damped polypropylene cone controls cone break-up and provides a smooth roll-off

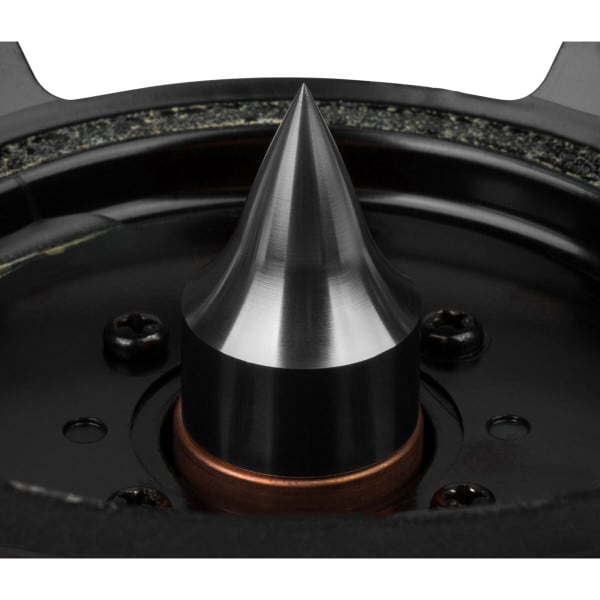

  • Copper cap controls inductance and extends high frequency response
  • Powerful 1.4 Tesla neodymium motor makes this one of the most efficient 6-1/2" car audio speaker on the market!
Similar items that may interest you:
See all items in Dash, Door & Deck Car Speakers

Overview

Dayton Audio PS65LP-4 6-1/2" Ultra Efficient Low Profile Full-Range Driver 4 Ohm

Aside from adding an amplified subwoofer you simply can’t make a better, more cost effective improvement to your factory car stereo than swapping out those mediocre factory speakers for the Dayton Audio PS65LP-4 ultra-efficient 6-1/2" drivers.

Today even the most basic factory audio systems have various other electronic components and systems integrated into the head unit, as a result less consumers are willing to replace the head unit. Not only could you lose certain features but in some cases may end up with electrical problems. Who wants to take out the head unit anyway!

Although the Dayton Audio PS65LP-4 (with 2-3/8" mounting depth, full-range capability, excellent off-axis response and exceptional efficiency) was purposely built for car audio, its parameters and design features serve it well for numerous other applications. Such as, but certainly not limited to: a full-range in-wall/on-wall/ceiling speaker system, a devoted midrange in a ultra-efficient three-way system, or as a great candidate for a folded horn or transmission line design for the class “A" amplifier guys.

The graph below illustrates how the typical bass and treble controls in most stock head units (i.e. center frequencies of 100 Hz and 10,000 Hz) can be used to dramatically flatten the response of the PS65LP-4.


Note: This driver is sold individually.

*Per parameter T/S measurement using Dayton Audio DATS system

Product Details

BrandDayton Audio
ModelPS65LP-4
Part Number295-348
UPC848791003776
Unit of MeasureEach
Weight3.05

Product Specifications

Speaker Size6.5"
Power Handling (RMS)40 Watts
