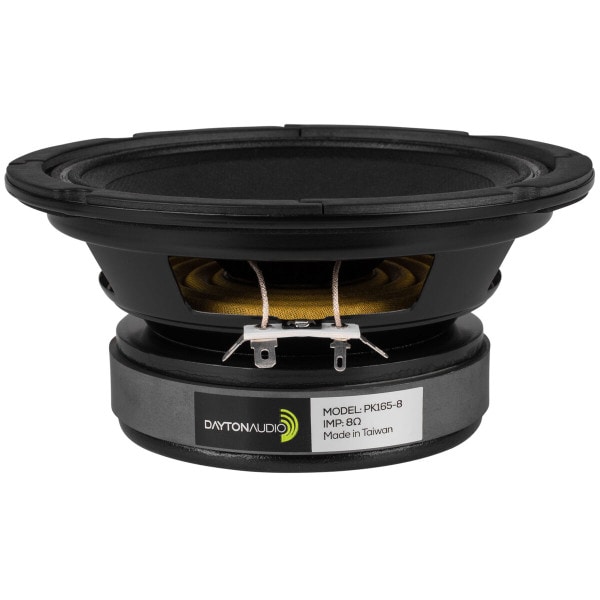

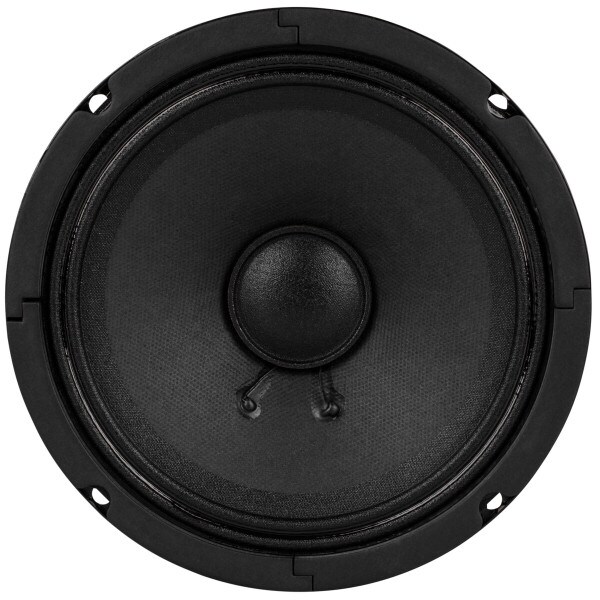

CLEARANCE Dayton Audio PK165-8 6" Professional Kevlar/Paper Cone Midrange Speaker

Dayton AudioPart # 295-020
Model: PK165-8
Dayton Audio's PK165-8 provides high output, extended frequency response, and low distortion--perfect for use in compact full range applications as well as a separate component in multi-way speaker systems.

Key Features

  • High output, low distortion
  • Extended frequency response
  • Kevlar-impregnated paper cone
  • Vented pole piece
  • 1-1/2" aluminum voice coil
Get Notified When Available

We'll send you an email when Dayton Audio PK165-8 6" Professional Kevlar/Paper Cone Midrange Speaker is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Dayton Audio PK165-8 6" Professional Kevlar/Paper Cone Midrange Speaker

Dayton Audio's PK165-8 provides high output, extended frequency response, and low distortion—perfect for use in compact full range applications as well as a separate component in multi-way speaker systems. The PK165-8 features a steel frame, Kevlar-impregnated paper cone, treated cloth surround, vented pole piece, and a 1-1/2" aluminum voice coil wound on a polyimide former.

Product Details

BrandDayton Audio
ModelPK165-8
Part Number295-020
UPC844632070716
Unit of MeasureEach
Weight4.2

Product Specifications

Nominal Diameter6"
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance8Ω
Frequency Response95 to 9,000Hz
Sensitivity91.4dB 2.83V/1m
Voice Coil Diameter1.49"

Thiele-Small Parameters

Resonant Frequency (Fs)91.5Hz
DC Resistance (Re)6.8Ω
Voice Coil Inductance (Le)0.81mH
Mechanical Q (Qms)7.93
Electromagnetic Q (Qes)0.77
Total Q (Qts)0.7
Compliance Equivalent Volume (Vas)0.27ft³
Mechanical Compliance of Suspension (Cms)0.3mm/N
BL Product (BL)7.18T·m
Diaphragm Mass Inc. Airload (Mms)10g
Maximum Linear Excursion (Xmax)1.5mm
Surface Area of Cone (Sd)113.1cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.5"
Baffle Cutout Diameter5.69"
Depth2.96"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.25ft³
Sealed F3115Hz
Vented Volume0.35ft³
Vented F380Hz
