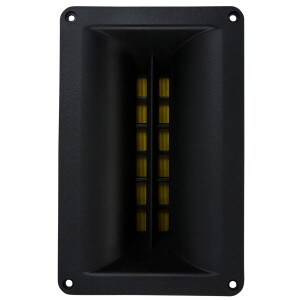

Dayton Audio PHT1-6 Planar Horn Tweeter 6 Ohm

Dayton AudioPart # 275-087
Model: PHT1-6
Dayton Audio's PHT1-6 provides the quick reflexes and smooth, non-fatiguing detail of a planar tweeter with horn-loaded efficiency and high power handling, creating the perfect high frequency complement to powerful pro audio drivers or other high-sensitivity speakers. 6 ohm impedance.

Key Features

  • Low-compression planar horn design
  • Detailed, non-fatiguing sound reproduction

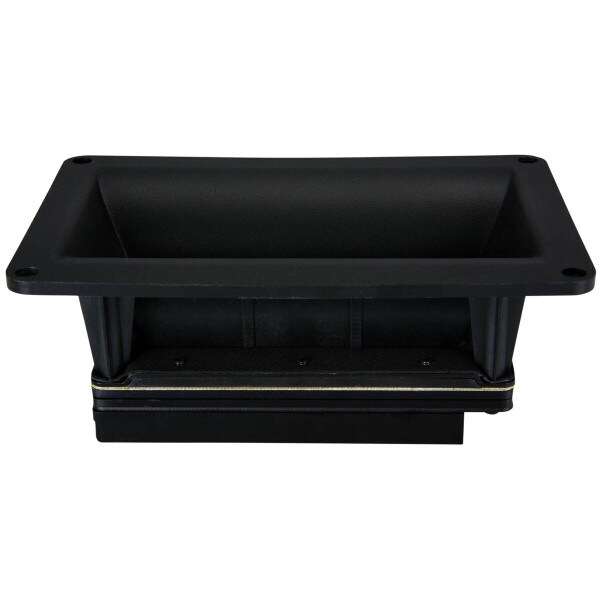

  • Rugged, reinforced injection-molded horn flare
  • Controlled, 60 degree horizontal dispersion
  • High 80-watt RMS power handling
Your Price: $89.98
MSRP: $116.99
Save $27.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $89.98/ea
Quantity:Qty: 4+ $86.98/ea
In Stock
Get Notified When Available

We'll send you an email when Dayton Audio PHT1-6 Planar Horn Tweeter 6 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio PHT1-6 Planar Horn Tweeter 6 Ohm

Planar tweeters offer a seductively smooth and richly detailed sound, but most don’t have the ruggedness or reliability for use in pro audio and high level studio monitoring applications. The Dayton Audio PHT1-6 Planar Horn Tweeter is different. It features a horn loaded design that achieves the high sensitivity of many horn loaded compression drivers, and its thermally robust Kapton diaphragm with etched aluminum conductor is rugged enough to handle the high power levels common in pro audio.

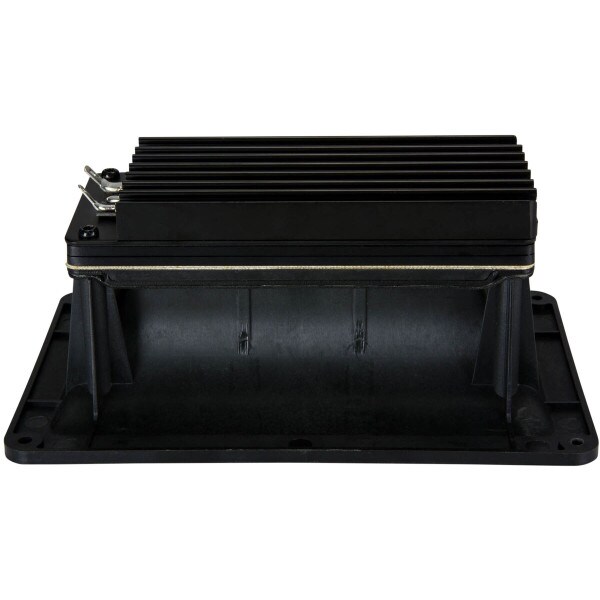

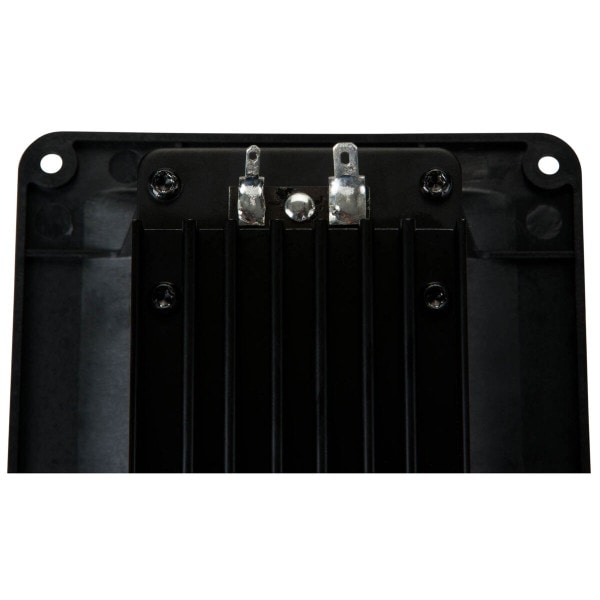

Cooling is often a problem in planar drivers, but the PHT1-6 features a large, rear-mounted aluminum heatsink that is thermally coupled to the membrane’s conductor and also evacuates heat from the transducer’s rear chamber, for extended component life and the ability to withstand peaks of 160 watts (80 watts RMS) when used with a 2nd order 2,500 Hz (minimum) crossover. The 6-ohm impedance helps the PHT1-6 maintain a high sensitivity, for use with virtually any pro audio or high efficiency midbass driver.

Product Details

BrandDayton Audio
ModelPHT1-6
Part Number275-087
UPC848791001543
Unit of MeasureEach
Weight2.6

Product Specifications

Cutout Diameter7.12" x 3.25
Tweeter TypePlanar
Power Handling (RMS)80 Watts
Impedance6Ω
Frequency Response2,500 to 18,000Hz
Sensitivity105dB 2.83V/1m

Thiele-Small Parameters

Voice Coil Inductance (Le)0.17mH

Mounting Information

Overall Outside Diameter7.93" x 4.93"
Depth3.25"
