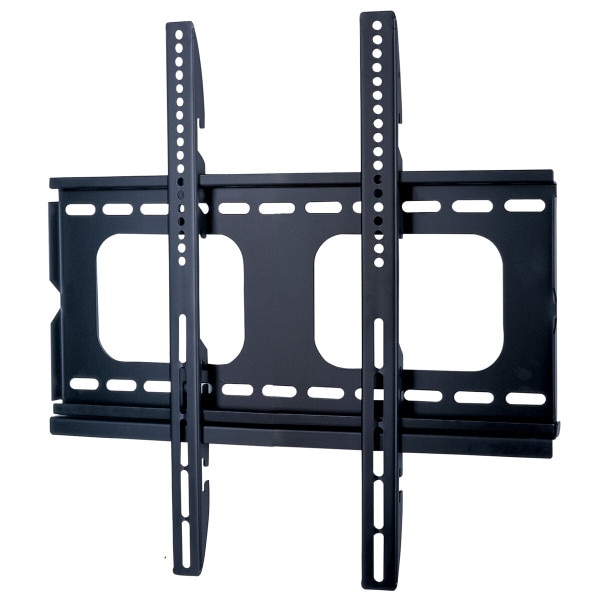

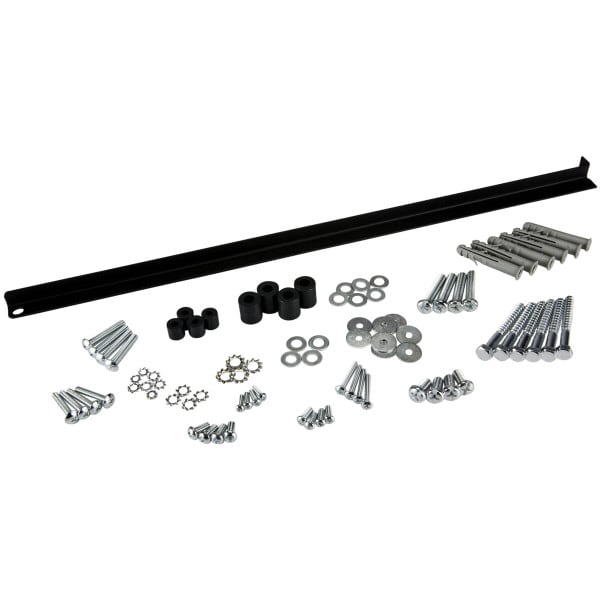

Shadow Mounts LCD2337-FM Fixed TV Wall Mount 23"-37"Shadow Mounts place the focus on your flat panel television—not the mount. By using an inconspicuous flat black finish, the mount virtually disappears behind the display. Heavy-duty, solid-steel construction provides you with peace of mind knowing your HDTV investment is held securely in place for years to come. Fixed mounts are the perfect solution to mount your LCD and Plasma TV permanently, and are perfect for both commercial and residential applications. Lag bolts, concrete anchors, Phillips head mounting screws (M4, M5, M6 and M8), safety bolts, and easy-to-follow instructions are included. Note: Consult your TV's owners manual for VESA sizing information.
Dimensions and Specifications: • Wall bracket: 21" (532 mm) W x 9.3" (235 mm) H • TV bracket: 1.375" (35 mm) W x 14.3" (350 mm) H • Minimum TV to wall distance: 0.98" (24 mm) • Mounting width supported: 50-720 mm • Mounting height supported: 50-330 mm • Supported VESA sizes: 75, 100, 200 x 100, 200, 400 x 200 • Maximum weight capacity: 100 lbs. (45 kg).
Note: Applicable television size ranges are based on VESA standards and will fit the listed screen sizes. To ensure that this specific TV mount is not exposed behind your TV, identify the length and width of your specific TV and be sure that the mounting bracket, plate, and or articulating arm does not extend beyond your television’s measurements.
