  • Dayton Audio LBB-6S 25 VDC 6 x 18650 Battery Holder/Charger Board

CLEARANCE Dayton Audio LBB-6S 25 VDC 6 x 18650 Battery Holder/Charger Board

Dayton Audio
Part #325-216

CLEARANCE Dayton Audio LBB-6S 25 VDC 6 x 18650 Battery Holder/Charger Board

Dayton Audio
Part #325-216
Model: LBB-6S
Lithium battery power is your best option when building high power portable sound projects. This battery holder charges six 18650 Li-Ion batteries when used with a 5 to 24 VDC power supply (sold separately). Enjoy prolonged listening with this 25 VDC output advanced portable power option.
Key Features
  • 25 VDC output power for amplified speakers and other portable projects
  • Works with 5 to 24 VDC power supplies for versatility
  • Common 2.1 x 5.5 mm input power jack
  • Uses six standard 18650 3.7 VDC Li-Ion batteries (sold separately)
  • Same footprint as KABD-4100 and compact Sure/Wondom amp boards for convenient stacking
  • Over/under charge circuit extends the life of correctly installed batteries
  • Adjustable charge current to increase battery life

Overview

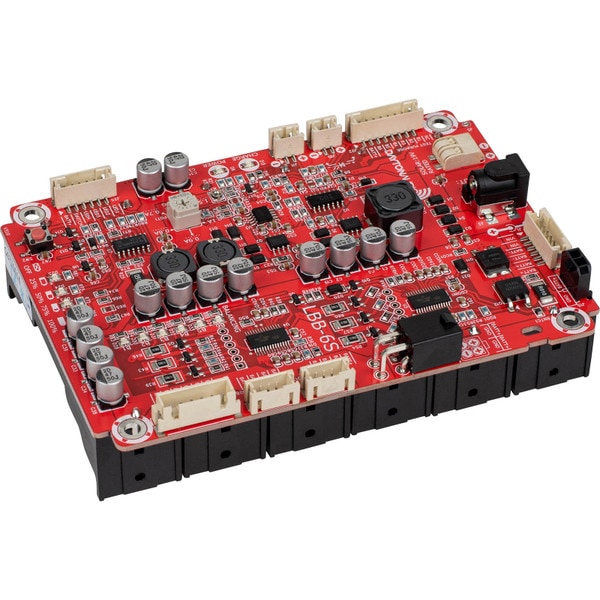

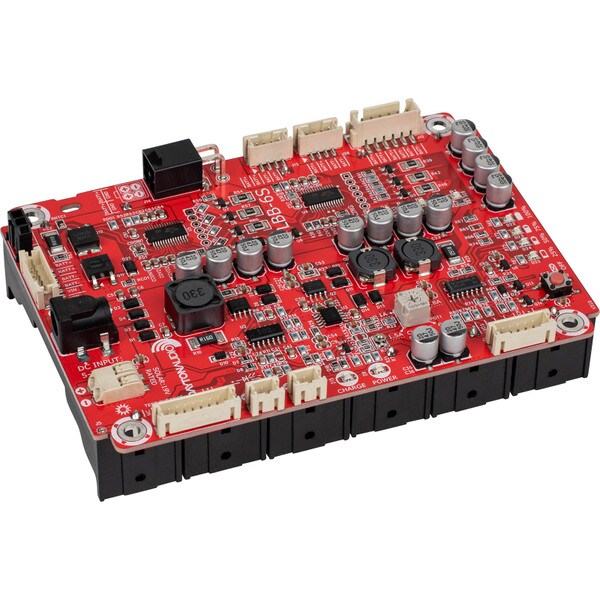

Dayton Audio LBB-6S 25 VDC 6 x 18650 Battery Holder/Charger Board

Turnkey Solution for Portable Power

The Dayton Audio LBB-6S makes harnessing the power of rechargeable lithium-ion batteries an easy endeavor. Simply install six 18650 lithium-ion batteries into the LBB-6S to get solid 25V performance.  At a total current draw of 5 amps, this battery board produces 125 watts of power.

Sometimes soldering to a circuit board can be intimidating. That's why the LBB-6S bypasses the need for any board soldering by providing JST sockets for reliable and convenient connections that allow you to take advantage of all the capabilities that this rechargeable battery board provides.

The Dayton Audio LBB-6S is so easy to use, affordable and dependable, it opens the up possibilities for portable electronics projects and products that otherwise may not have been possible. Use the LBB-6S to create portable speaker systems, drive motors in robotics projects, power an array of LED's or make life simpler by employing creative iOT (internet of things) solutions. The sky is the limit when portable power is needed.

This board offers six 25V DC output connectors to supply power to various items in your project or product. Remember, all connected devices will share 5 amps of current. Be sure that what you are connecting the LBB-6S does not draw more than 5 amps. By having multiple output connectors, it eliminates the need for a power distribution circuit, thus simplifying most designs.

A remarkable point of versatility is that the Dayton Audio LBB-6S can recharge on a very wide range of voltages; from a convenient 5V source all the way up to a fast-charging 24V power adapter. You can even plug a solar array into the LBB-6S to keep a constant charge in sunny conditions. The recommended average output from the solar array is 19V, charging times will vary depending on the voltage and amperage provided to the LBB-6S.

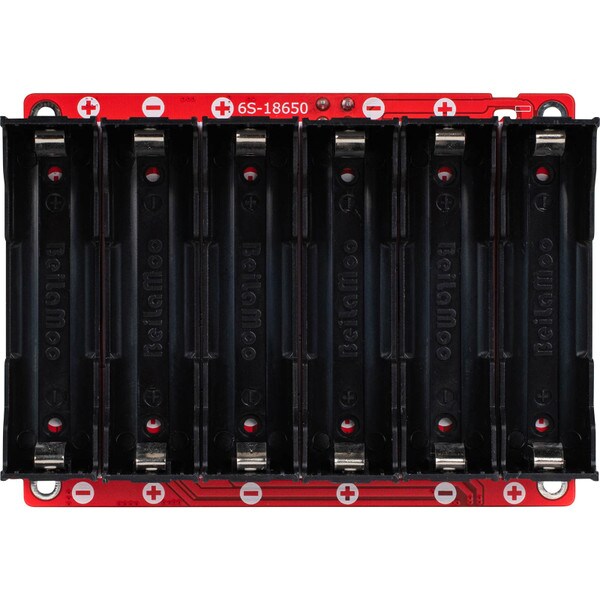

Operate the Dayton Audio LBB-6S rechargeable battery board with confidence knowing that it provides robust overcharge and undercharge protection. This protection circuitry built into the board maintains safe operation and optimizes the lifespan of the six 18650 lithium-ion battery cells that are housed securely on the underside of the board.

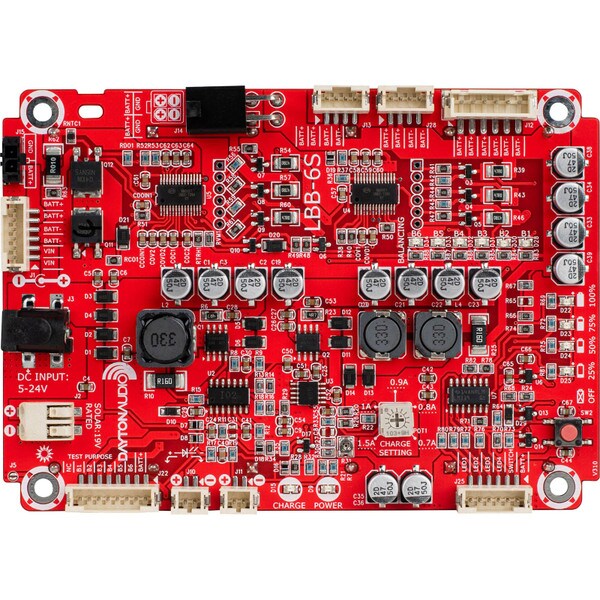

Another great feature of the LBB-6S is their array of LED status indicators. Directly on the board you will find a tactile push button that will tell you the battery charge level, indicated by four on-board LED's. In addition, you'll also find a power input LED that shows that the board is connected to a power source and a charging LED that lets you know the board is actively charging; it turns off when charging is complete.

However, once you mount this rechargeable battery board inside an enclosure, the board and its indicators are no longer visible.  That's why this board also comes equipped with JST connectors to bring all those status indicators to the outside of your project.  By purchasing the Dayton Audio LBB-5CL (sold separately), you can bring all those important statuses to the outside of your enclosure.  With easy to connect pre-terminated LED's, just plug the wires into their correct JST sockets and mount the LED's so they are visible.  It's that easy.

Note: Dayton Audio LBB boards are designed to be used and recharged frequently. Balancing technology does use a little current so keep charging the board even when not in use for multiple days. Pull the batteries out when not in use for long periods of time. Charge the board immediately after reinstalling the batteries.

What's Included



  • Dayton Audio LBB-6S Rechargeable Lithium-Ion Battery Board

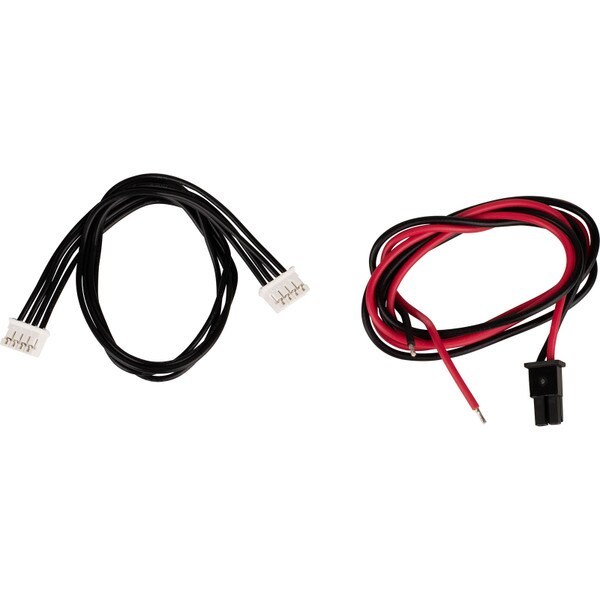

  • 20" 2-conductor power output cable
  • 8" 4-conductor power output cable





Specifications



  • Output Voltage: 25 VDC
  • Input Voltage Required: 5 VDC - 24 VDC, minimum 2A
  • Maximum Current Draw: 5A Max
  • DC Coax Jack Size: 2.1 x 5.5 mm center (+) polarity
  • Battery: Six 18650 Li-ion, recommended amperage at least 2600 mAh
  • Width: 5.1" (130 mm)
  • Depth: 3.6" (92 mm)
  • Height: 1.38" (35 mm)



Product Details

BrandDayton Audio
ModelLBB-6S
Part Number325-216
UPC848791008955
Unit of MeasureEach
Weight0.4

Product Specifications

Board TypeBattery & Power

Specifications
