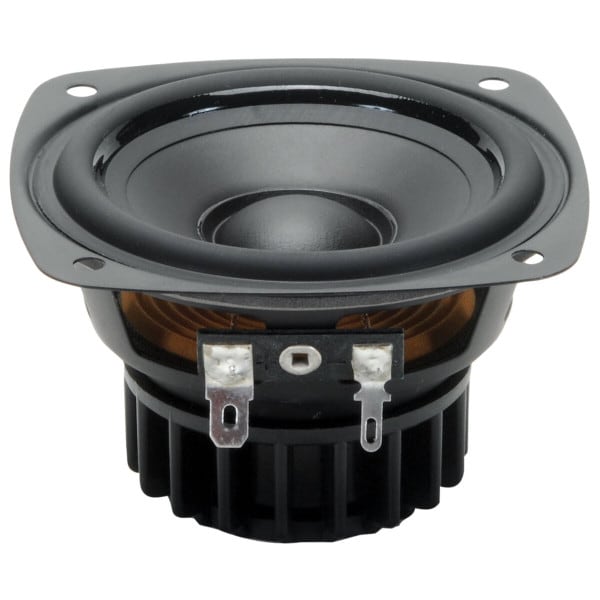

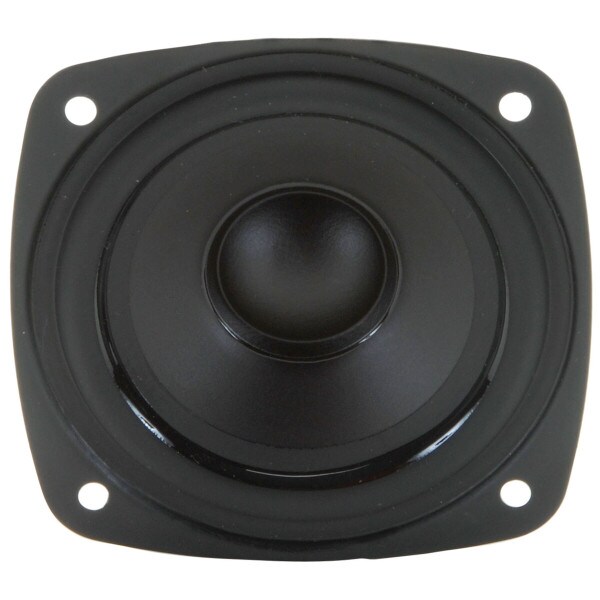

Dayton Audio DW3-1053SC 3" Full Range Driver

Dayton AudioPart # 264-880
Model: W3-1053SC

Save Even More

A Restocked, Refurbished or Open Box unit is available!

View Now
Dayton Audio's DW3-1053SC has an attractive pincushion style frame, edge-damped poly cone, flat spider, and rubber surround. With smooth response and low distortion this is an excellent driver for point source and line array designs.

Key Features

  • Smooth, extended response
  • Steel frame and neodymium motor
  • Poly cone with rubber half-roll edge
  • Underhung 7/8" VC provides exceptional linearity and low distortion
  • Perfect for point source applications or line arrays
Your Price: $45.99
MSRP: $68.06
Save $22.07 (32%)
Bulk Pricing
Quantity:Qty: 1-3 $45.99/ea
Quantity:Qty: 4+ $40.99/ea
68 In Stock
Get Notified When Available

We'll send you an email when Dayton Audio DW3-1053SC 3" Full Range Driver is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DW3-1053SC 3" Full Range Driver

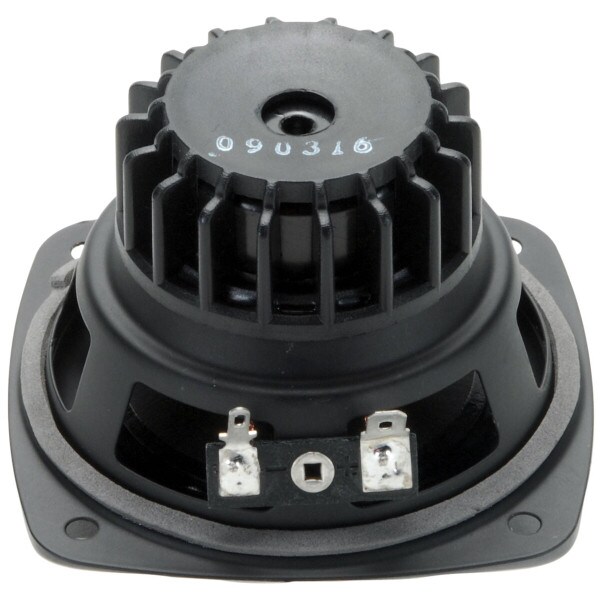

The Dayton Audio DW3-1053SC 3" full-range has an attractive pincushion style frame, edge-damped poly cone, flat spider, and rubber surround. The underhung 7/8" voice coil provides nearly ideal cone control to deliver linear travel and wide frequency response. With extremely smooth, extended frequency response you can expect an easy transition to tweeters in multi-way designs and a remarkably full sound in full range systems. A neodymium magnet with black plastic heat sink fins minimizes weight making the DW3-1053SC perfect for use in line arrays or portable speakers.

Product Details

BrandDayton Audio
ModelW3-1053SC
Part Number264-880
UPC844632077326
Unit of MeasureEach
Weight0.4

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter3.3125
Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance8Ω
Frequency Response100 to 18,000Hz
Sensitivity85dB 2.83V/1m
Voice Coil Diameter0.875"

Thiele-Small Parameters

Resonant Frequency (Fs)100Hz
DC Resistance (Re)5.98Ω
Voice Coil Inductance (Le)0.44mH
Mechanical Q (Qms)4.77
Electromagnetic Q (Qes)0.72
Total Q (Qts)0.62
Compliance Equivalent Volume (Vas)0.04ft³
Diaphragm Mass Inc. Airload (Mms)1.99g
Maximum Linear Excursion (Xmax)1.5mm

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter3.19"
Baffle Cutout Diameter3"
Depth2"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.05ft³
Sealed F3114Hz
Vented Volume0.13ft³
Vented F390Hz
