  • Dayton Audio DTA3116S Class D Micro Mini Amplifier 2 x 15W

CLEARANCE Dayton Audio DTA3116S Class D Micro Mini Amplifier 2 x 15W

Dayton AudioPart # 300-3815
Model: DTA3116S
The truly micro size of the Dayton Audio DTA3116S makes it an ideal choice for small areas with limited space or for those looking for a cleaner audio environment. This amp is remarkably affordable, yet still delivers crisp, vibrant sound comparable to much larger amplifiers.

Key Features

  • Class D amp design maximizes fidelity and efficiency so your music sounds its best

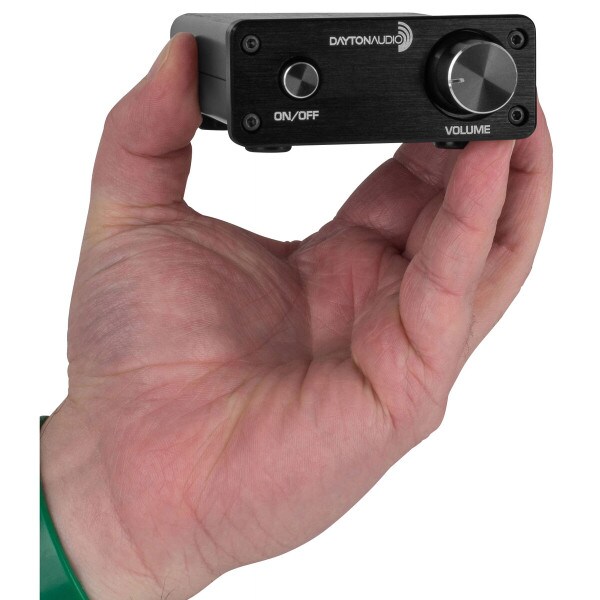

  • This amp will fit anywhere at only 3" x 4"

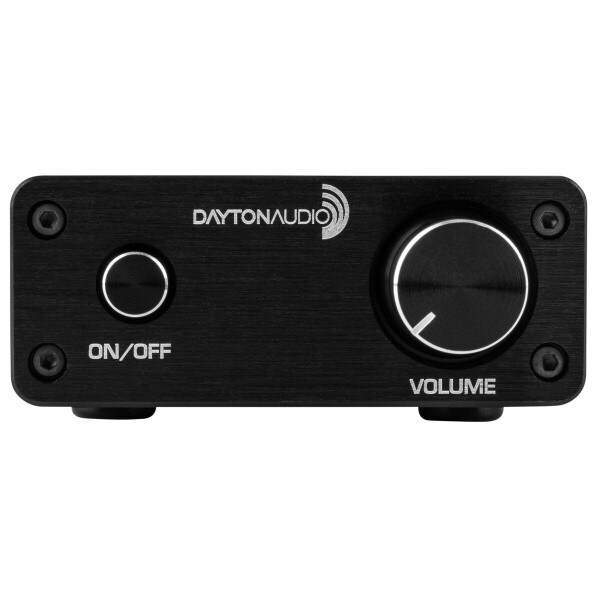

  • Simple operation with only an on/off switch and volume control knob
  • All metal case with removable Phoenix-style speaker wire terminal block

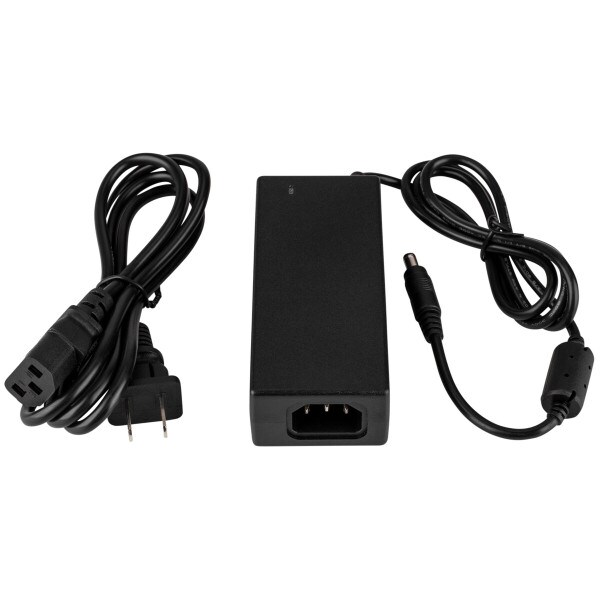

  • Includes 14.5 VDC, 4.5A power supply for peak performance
Get Notified When Available

We'll send you an email when Dayton Audio DTA3116S Class D Micro Mini Amplifier 2 x 15W is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Dayton Audio DTA3116S Class D Micro Mini Amplifier 2 x 15W

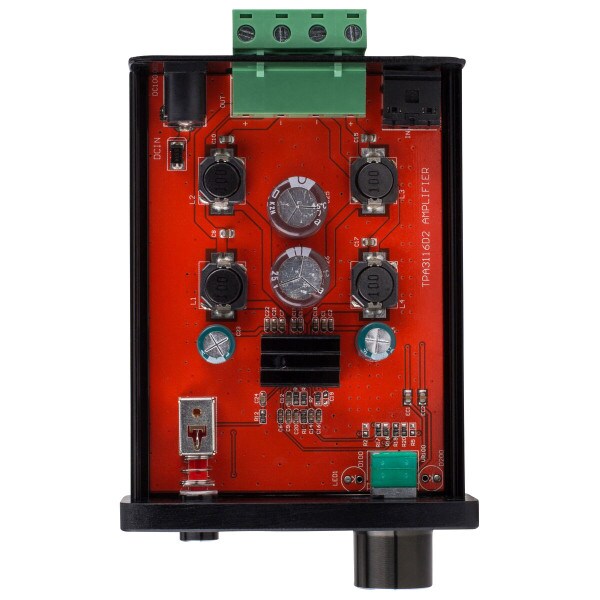

The highly efficient audio amplification of the Dayton Audio DTA3116S provides an amazing soundstage and presence combined with enhanced clarity and sound quality; all at an amazingly low price. The DTA3116S features a TPA3116D2 known for its efficiency and performance. The TPA3116D2 is fully protected against faults with built-in thermal and short-circuit protection. This is the perfect stereo amplifier for desktops or bedrooms. It is small, but generates powerful, pristine audio.

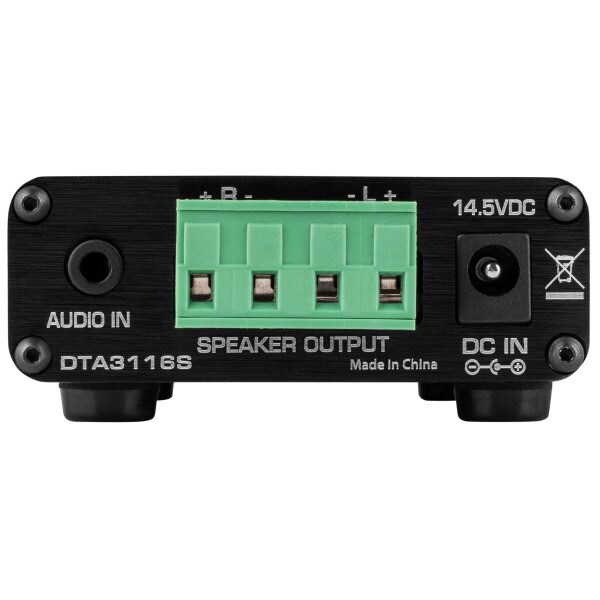

Operation of the DTA3116S is simple and straight forward. On the front of this amp you will find a push button on/off switch and smooth analog volume control. The back panel features a no nonsense 3.5 mm stereo input jack perfect for using with portable devices, tablets, or PCs. To accommodate its tiny stature, the DTA3116S is equipped with a removable Phoenix-style speaker wire terminal block. Wire installation is made easy with the individual screw terminals that accept up to 12 AWG speaker wire. A robust 14.5 VDC, 4.5A power adapter comes with this amp to ensure that it is given the right voltage and current to function at peak performance.

Specifications: • Power output: 2 x 15 watts RMS into 4 ohms, 2 x 8 watts RMS into 8 ohms • Frequency response: 20-20,000 Hz • Total Harmonic Distortion (THD): <0.4% @ 1W per channel • Minimum impedance: 4 ohms • Signal-to-Noise Ratio (SNR): 103 dB, A weighted • Minimum input impedance: 10K ohms • Input sensitivity: 680 mV • Channel separation: 95 dB • Efficiency: >90% • Dynamic range: >100 dB • Case dimensions: 2-15/16" W x 1-3/16" H x 3-7/8" D • Overall dimensions: 1.31" H x 2.97" W x 4.33" D.

Product Details

BrandDayton Audio
ModelDTA3116S
Part Number300-3815
UPC848791002106
Unit of MeasureEach
Weight1.25

Product Specifications

Power (RMS/Channel 8 ohms)0 - 25 Watts
Weight Range< 10 lbs.

Specifications
