CLEARANCE Dayton Audio DCS450-4 18" Classic Subwoofer 4 Ohm

Dayton Audio
Part #295-475

CLEARANCE Dayton Audio DCS450-4 18" Classic Subwoofer 4 Ohm

Dayton Audio
Part #295-475
Model: DCS450-4

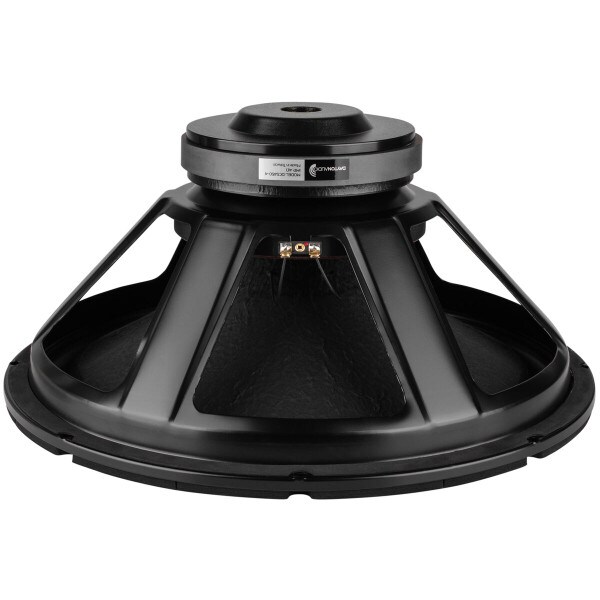

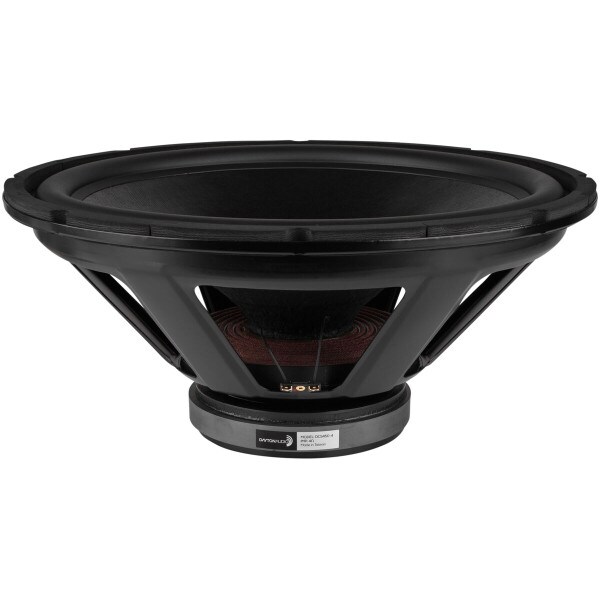

Choose the Dayton Audio DCS450-4 Classic Series 18" subwoofer for use as a high output, low frequency home theater subwoofer.
Key Features
  • Heavy-duty treated paper cone for high stiffness-to-weight ratio
  • 3" aluminum former, 4-layer voice coil, and large vented pole piece for high power handling
  • Large diameter flat spider and healthy Xmax for clean bass
  • High sensitivity

Overview

Dayton Audio DCS450-4 18" Classic Subwoofer 4 Ohm

Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DCS450-4 18" subwoofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. Extended bass response and generous Xmax make this driver ideal for use in high output subwoofers. A Qts of 0.47 allows the DCS450-4 to work well in both sealed and ported speaker enclosures.

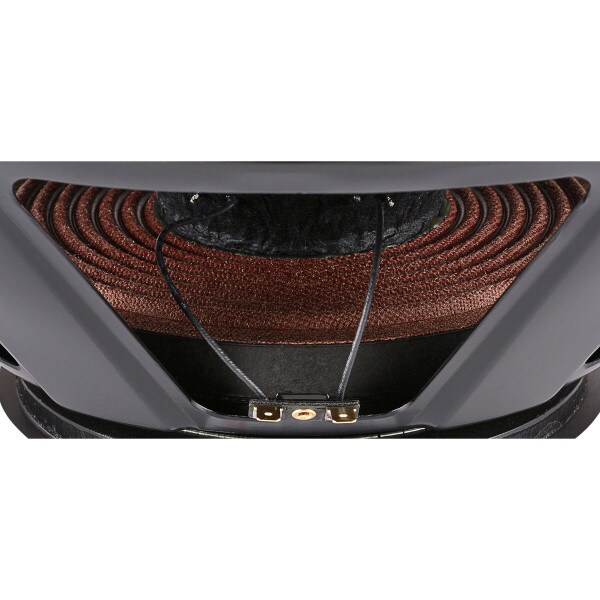

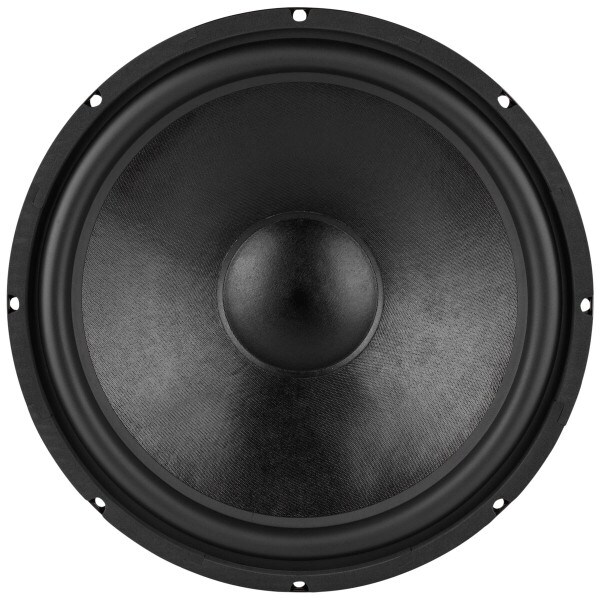

A polymer laminate paper cone offers rigidity, while the 3" four-layer high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

Product Details

BrandDayton Audio
ModelDCS450-4
Part Number295-475
UPC844632062315
Unit of MeasureEach
Weight24

Product Specifications

Nominal Diameter18"
Bolt Circle Diameter17.4
Power Handling (RMS)300 Watts
Power Handling (MAX)600 Watts
Impedance4Ω
Frequency Response22 to 500Hz
Sensitivity95.9dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)26.2Hz
DC Resistance (Re)3Ω
Voice Coil Inductance (Le)3.23mH
Mechanical Q (Qms)4.98
Electromagnetic Q (Qes)0.48
Total Q (Qts)0.44
Compliance Equivalent Volume (Vas)8.76ft³
Mechanical Compliance of Suspension (Cms)0.14mm/N
BL Product (BL)16.8T·m
Maximum Linear Excursion (Xmax)8.25mm
Surface Area of Cone (Sd)1134.1cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter17.87"
Baffle Cutout Diameter16.42"
Depth8.37"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume3.85ft³
Sealed F346Hz
Vented Volume13.01ft³
Vented F325Hz
