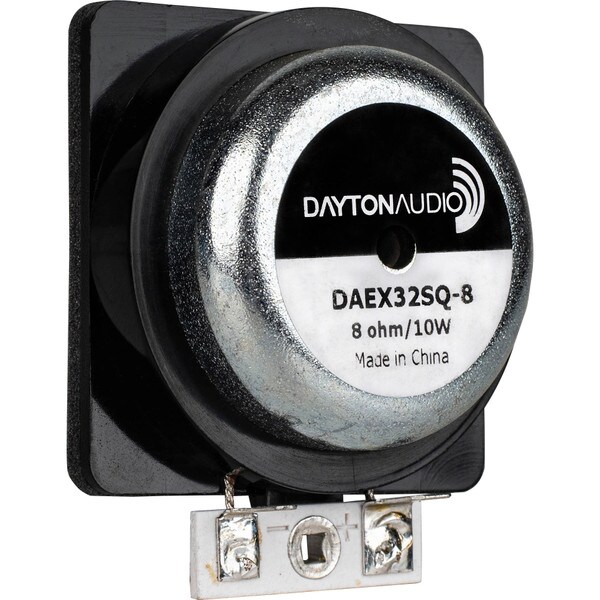

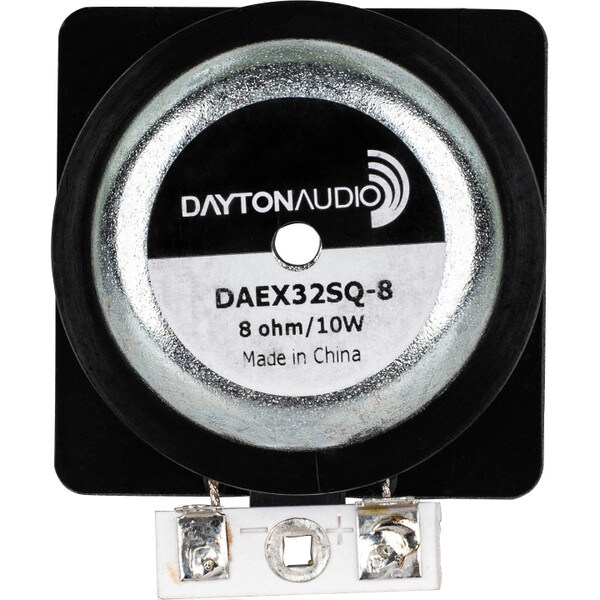

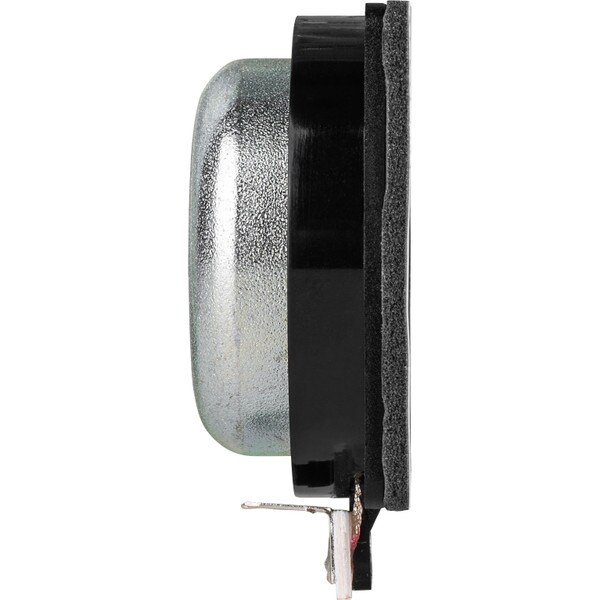

Dayton Audio Square Frame Self Supporting Audio Exciter 32mm 10W 8 Ohm DAEX32SQ-8

Dayton AudioPart # 295-267
Model: DAEX32SQ-8
Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX32SQ-8 square frame exciter uses a 2-layer 1-1/4" voice coil for high power handling. The square frame design provides additional support for the motor assembly to produce lower distortion when driven to its limits.

Key Features

  • Extended range and wide dispersion
  • 32 mm 2 layer voice coil for high, 10 watts RMS, power handling
  • Pre-applied 3M VHB adhesive for quick, secure installation
  • 8 ohms impedance for easy connection to most amplifiers
Your Price: $15.98
MSRP: $20.99
Save $5.01 (24%)
Bulk Pricing
Quantity:Qty: 1-3 $15.98/ea
Quantity:Qty: 4+ $14.43/ea
1472 In Stock
Get Notified When Available

We'll send you an email when Dayton Audio Square Frame Self Supporting Audio Exciter 32mm 10W 8 Ohm DAEX32SQ-8 is back in stock or available for preorder.

Order in the next 0 hr 34 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio Square Frame Self Supporting Audio Exciter 32mm 10W 8 Ohm DAEX32SQ-8

Dayton Audio's DAEX32SQ-8 square frame 32 mm exciter gives you the ability to turn almost any solid surface into a truly invisible high-fidelity speaker. With a 1-1/4" 2-layer voice coil this exciter is capable of great power handling and impressive overall output capability. The square frame design gives this exciter additional mounting area to help support the powerful motor assembly and provide improved linearity when mounted to vertical surfaces.

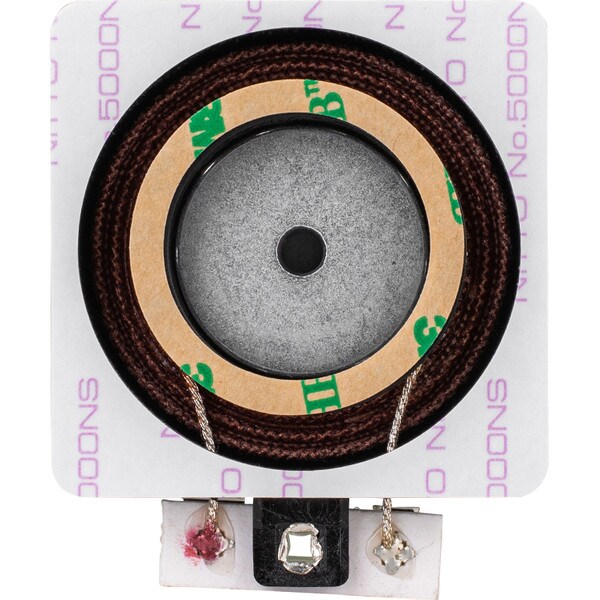

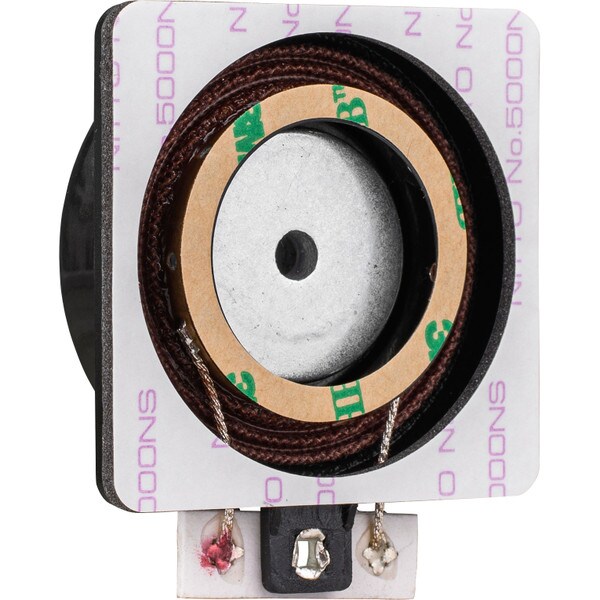

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1.25" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick!

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Specifications:• Power handling: 10 watts RMS • VCdia: 1.25" (32 mm) • Nominal impedance: 8 ohms • Re: 8 ohms • Le: 0.51 mH • Fs: 481 Hz • Dimensions: 2" (51 mm) W x 2.43" (61.8 mm) H x 0.89" (22.5 mm) D • Weight: 130 grams.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelDAEX32SQ-8
Part Number295-267
UPC848791006210
Unit of MeasureEach
Weight0.35

Product Specifications

ApplicationFull-Range Exciter
Power Handling (RMS)10 Watts
Impedance8Ω
