  • Dayton Audio Bullfrog Vented Disc Spider Audio Exciter with 320mm Cable 25mmX4 40W 8 Ohm DAEX25X4-4

Dayton Audio Bullfrog Vented Disc Spider Audio Exciter with 320mm Cable 25mmX4 40W 8 Ohm DAEX25X4-4

Dayton Audio
Part #295-242

Dayton Audio Bullfrog Vented Disc Spider Audio Exciter with 320mm Cable 25mmX4 40W 8 Ohm DAEX25X4-4

Dayton Audio
Part #295-242
Model: DAEX25X4-4
Dayton Audio's unique DAEX25X4-4 exciter assembly employs an array of four separate exciters coupled together with a frame. This combined motor strength actuates an area larger than what conventional exciters can drive, resulting in higher power handling and more output.
Key Features
  • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
  • Four 24 mm voice coils improves power handling to 40 watts RMS
  • Rare-earth neodymium motor and proprietary voice coils
  • Easy 8 ohm load, can be powered by most amplifiers
Your Price: $37.49
MSRP: $48.99
Save $11.50 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $37.49/ea
Quantity:Qty: 4+$33.74/ea
Ships next business day. Details

370In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Dayton Audio Bullfrog Vented Disc Spider Audio Exciter with 320mm Cable 25mmX4 40W 8 Ohm DAEX25X4-4

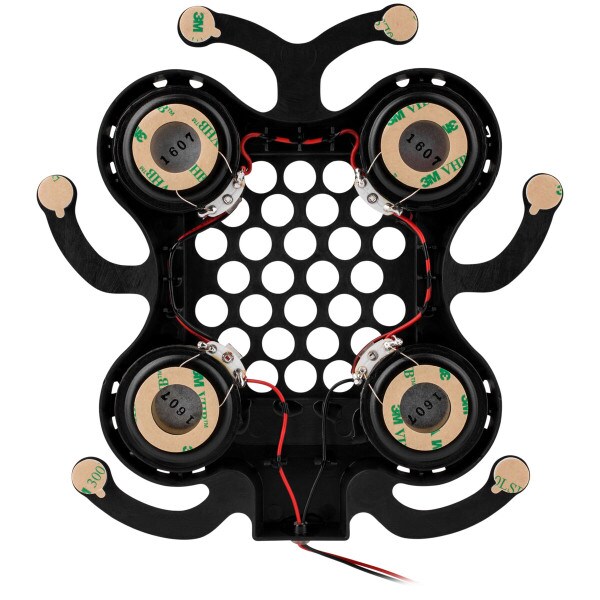

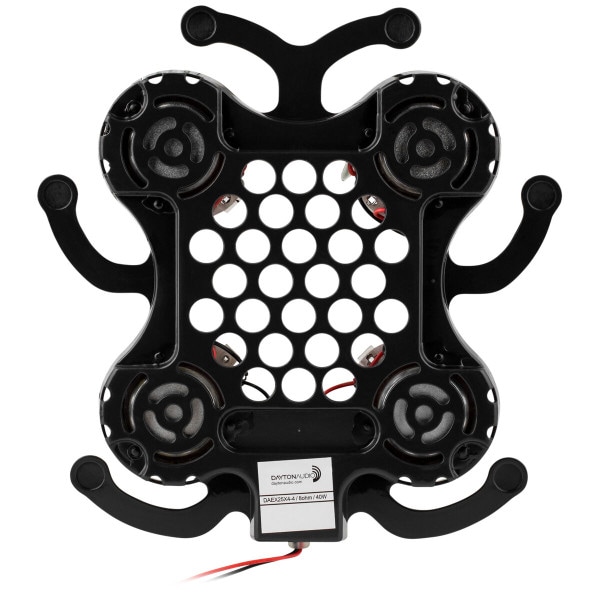

The Dayton Audio exciter assembly's unique design uses four 25 mm exciters coupled to a plastic frame to actuate a larger area with more force than conventional designs. This array of exciters is wired in a series-parallel configuration for an overall impedance of 8 ohms and power handling of up to 40 watts RMS.

The DAEX25X4-4 exciter features the same ability to turn nearly any surface into a speaker as other exciters and tactile transducers do, only with a larger contact area and moving mass that increases energy transfer. Perfect for use in walls, drop ceilings, or even cabinet doors.

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Connection is made with 10" wire leads pre-terminated with a 2-pin connector (6mmx8mmx16mm) to keep installation and wiring as simple as possible.

Specifications: • Power handling: 40 watts RMS • VCdia: 4 x 25 mm • Nominal impedance: 8 ohms • Re: 7.3 ohms • Le: 0.29 mH • Fs: 285 Hz • Dimensions: 7.5" W x 7.5" H x 0.75" D • Weight: 240 grams.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Product Details

BrandDayton Audio
ModelDAEX25X4-4
Part Number295-242
UPC848791001581
Unit of MeasureEach
Weight0.65

Product Specifications

ApplicationFull-Range Exciter
Power Handling (RMS)40 Watts
Impedance
