  • Dayton Audio Tripod Audio Exciter 25mm 20W 4 Ohm DAEX25TP-4

Dayton Audio Tripod Audio Exciter 25mm 20W 4 Ohm DAEX25TP-4

Dayton Audio
Part #295-226

Dayton Audio Tripod Audio Exciter 25mm 20W 4 Ohm DAEX25TP-4

Dayton Audio
Part #295-226
Model: DAEX25TP-4

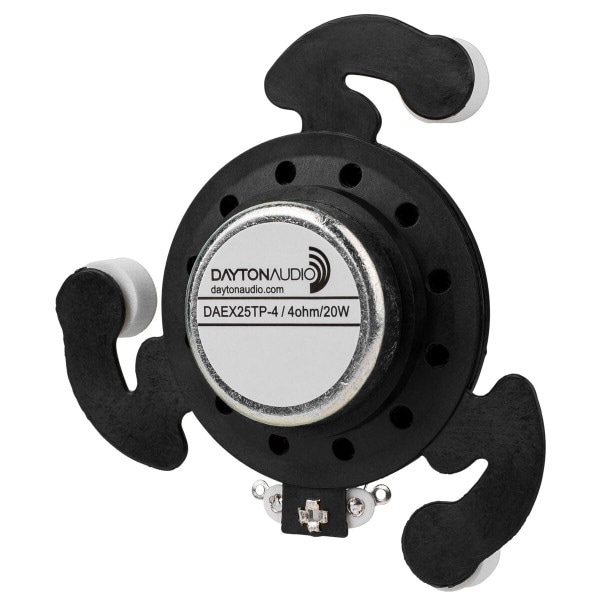

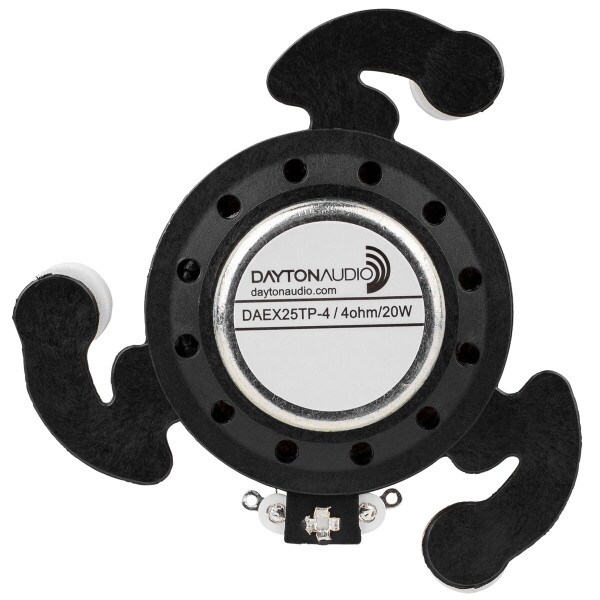

For turning larger surfaces into speakers, and more bass output, Dayton Audio's DAEX25TP-4 features three extended arms. Cooling vents draw air across the propietary voice coil for higher power handling.
Key Features
  • Unique, three arm design for exciting a large surface
  • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
  • Rare-earth neodymium motor and a proprietary voice coil
  • 4-ohm impedance for use with small, Class D amplifiers
  • 20 watt RMS power handling for high output
Your Price: $13.49
MSRP: $17.99
Save $4.50 (25%)
Bulk Pricing
Quantity:Qty: 1-3 $13.49/ea
Quantity:Qty: 4+$12.14/ea
Order in the next 1 hr 39 min to ship today. Details

155In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio Tripod Audio Exciter 25mm 20W 4 Ohm DAEX25TP-4

Dayton Audio's DAEX25TP-4 tripod exciter is built with three arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass).

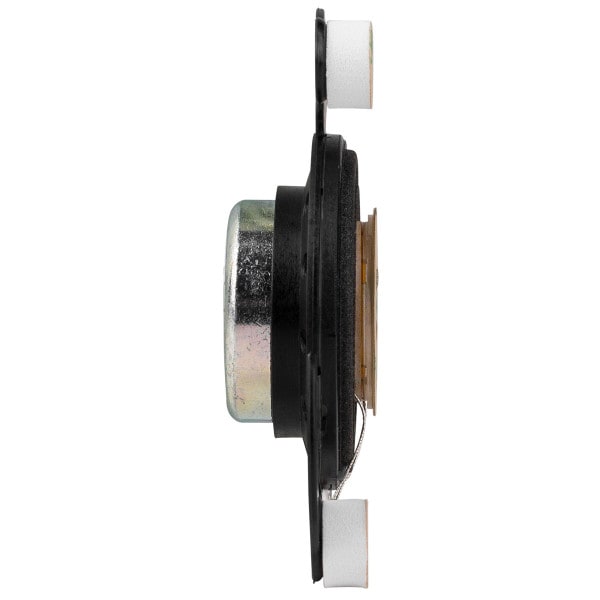

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor.

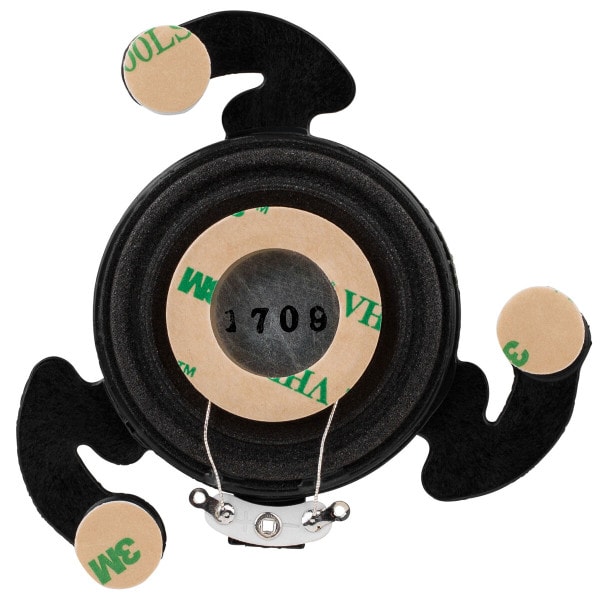

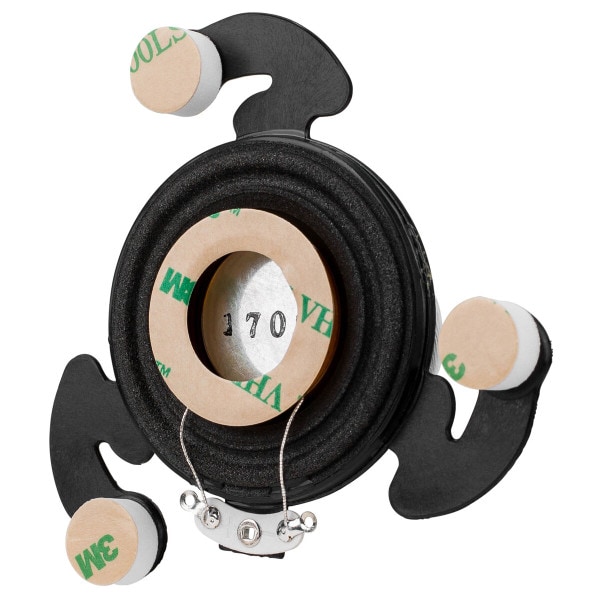

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the three arms ... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

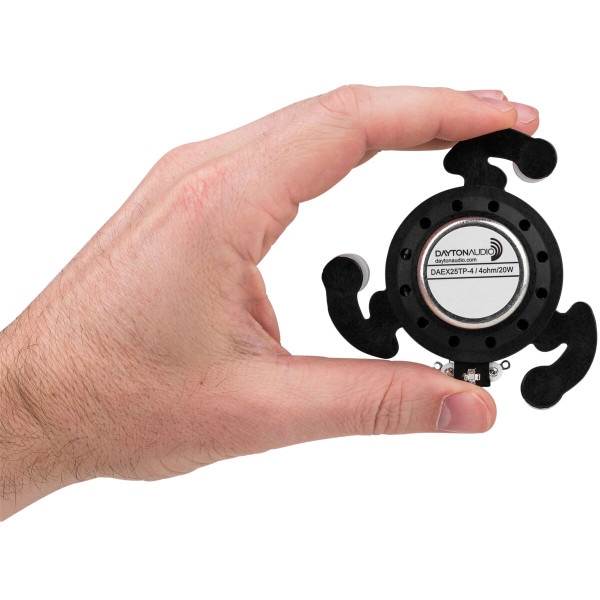

Specifications: • Power handling: 20 watts RMS • VCdia: 25 mm • Nominal impedance: 4 ohms • Re: 4.2 ohms • Le: 0.10 mH • Fs: 233 Hz • Dimensions: 3.49" (88.71 mm) overall diameter x 0.83" (21 mm) total height • Weight: 82 grams

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelDAEX25TP-4
Part Number295-226
UPC848791000935
Unit of MeasureEach
Weight0.2

Product Specifications

ApplicationFull-Range Exciter
Power Handling (RMS)20 Watts
Impedance4Ω
