  • Dayton Audio Quad Feet Audio Exciter 25mm 20W 4 Ohm DAEX25Q-4

Dayton Audio Quad Feet Audio Exciter 25mm 20W 4 Ohm DAEX25Q-4

Dayton Audio
Part #295-228

Dayton Audio Quad Feet Audio Exciter 25mm 20W 4 Ohm DAEX25Q-4

Dayton Audio
Part #295-228
Model: DAEX25Q-4

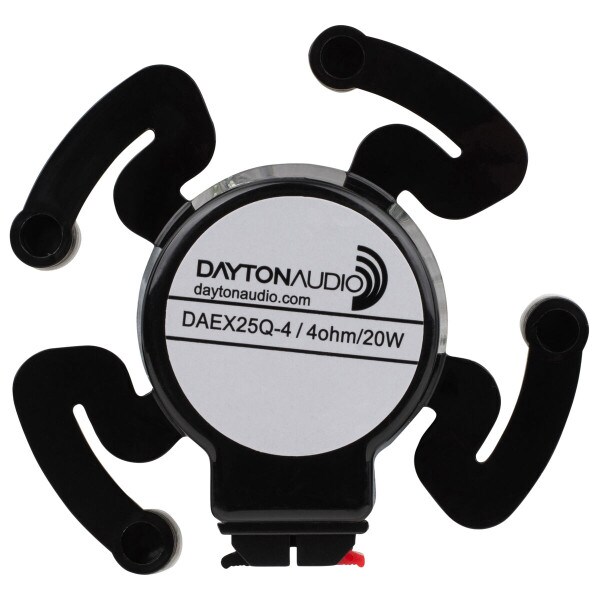

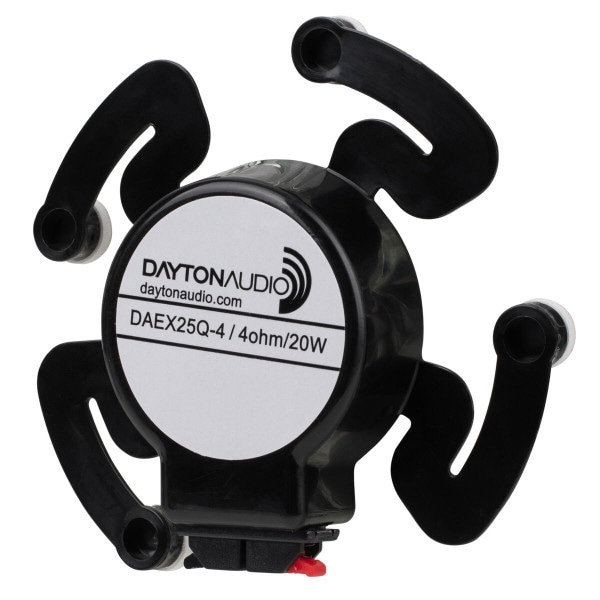

Dayton Audio's DAEX25Q-4 features four extended arms for turning larger surfaces into speakers, while providing more bass output . Spring-loaded speaker terminals facilitate quick electrical connection.
Key Features
  • Unique, four arm design for exciting a large surface
  • Pre-applied 3M™ VHB™ adhesive for quick, secure installation
  • Rare-earth neodymium motor and a proprietary voice coil
  • 4-ohm impedance for use with small, Class D amplifiers
  • 20 watt RMS power handling for high output
Similar items that may interest you:
See all items in Exciters & Tactile Transducers
Your Price: $13.98
MSRP: $19.99
Save $6.01 (30%)
Bulk Pricing
Quantity:Qty: 1-3 $13.98/ea
Quantity:Qty: 4+$12.58/ea
Order in the next 3 hr 37 min to ship today. Details

2782In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio Quad Feet Audio Exciter 25mm 20W 4 Ohm DAEX25Q-4

Dayton Audio's DAEX25Q-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass).

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil allows for more input power, creating rich, dynamic sound.

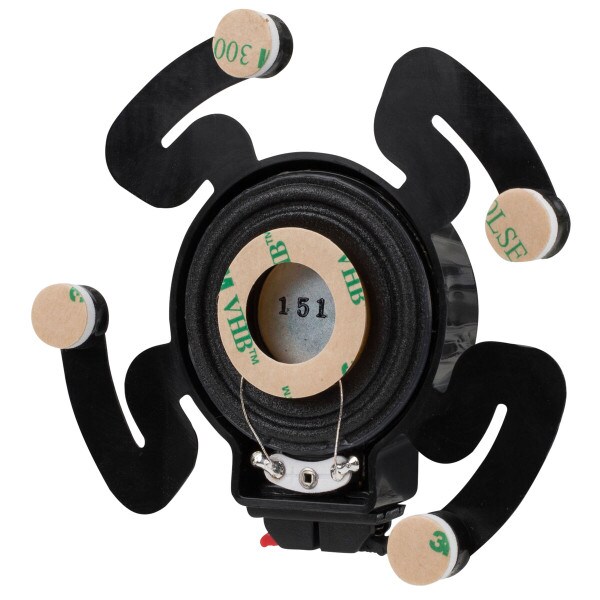

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick! Two spring-loaded terminals are built onto the main body for quick electrical connection.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Specifications: • Power handling: 20 watts RMS • VCdia: 25 mm • Nominal impedance: 4 ohms • Re: 4.3 ohms • Le: 0.25 mH • Fs (uncoupled): 224 Hz • Dimensions: 3.99" (101.44 mm) overall diameter x 0.97" (24.7 mm) total height • Weight: 90.5 grams.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Product Details

BrandDayton Audio
ModelDAEX25Q-4
Part Number295-228
UPC848791001024
Unit of MeasureEach
Weight0.25

Product Specifications

ApplicationFull-Range Exciter
Power Handling (RMS)20 Watts
Impedance4Ω
