Dayton Audio Coin Type Audio Exciter 25mm 10W 4 Ohm DAEX25CT-4

Dayton AudioPart # 295-220
Model: DAEX25CT-4
Take your product or project to the next level by turning it into a speaker! The DAEX25CT-4 is designed by Dayton Audio with a 1" voice coil for 10 watt RMS power handling, for more output than most of the other coin-type exciters.

Key Features

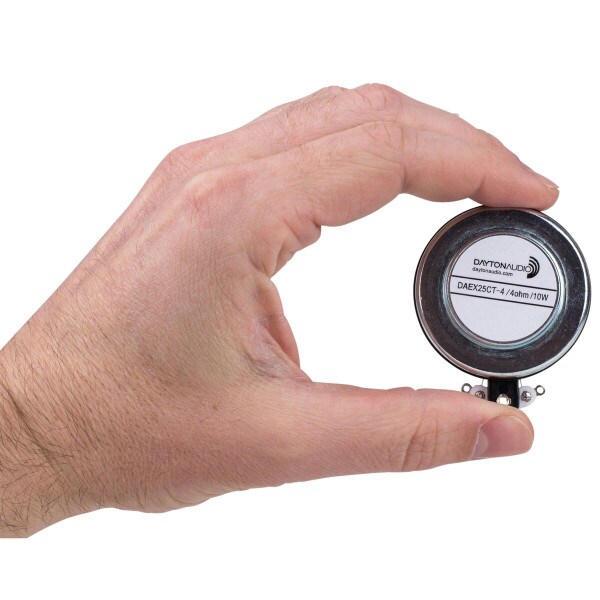

  • Small size; just under 2" diameter, about 9/16" high
  • Pre-applied 3M™ VHB™ adhesive for quick, durable installation
  • Rare-earth neodymium motor and a proprietary voice coil
  • 4-ohm impedance for use with small, Class D amplifiers
  • 1" voice coil for 10 watt RMS power handling
Similar items that may interest you:
Dayton Audio Coin Type Audio Exciter IMS Mount 25mm 10W 4 Ohm EX25CT2-4
Price: $12.29Part # 295-221
See all items in Exciters & Tactile Transducers
Your Price: $12.29
MSRP: $17.99
Save $5.70 (32%)
Bulk Pricing
Quantity:Qty: 1-3 $12.29/ea
Quantity:Qty: 4+ $11.29/ea
2748 In Stock
Get Notified When Available

We'll send you an email when Dayton Audio Coin Type Audio Exciter 25mm 10W 4 Ohm DAEX25CT-4 is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio Coin Type Audio Exciter 25mm 10W 4 Ohm DAEX25CT-4

Dayton Audio's 25 mm DAEX25CT-4 coin type exciter features the same ability to turn nearly any surface into a speaker as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows!

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil allows for more input power for higher output applications while maintaining a slim-line form factor.

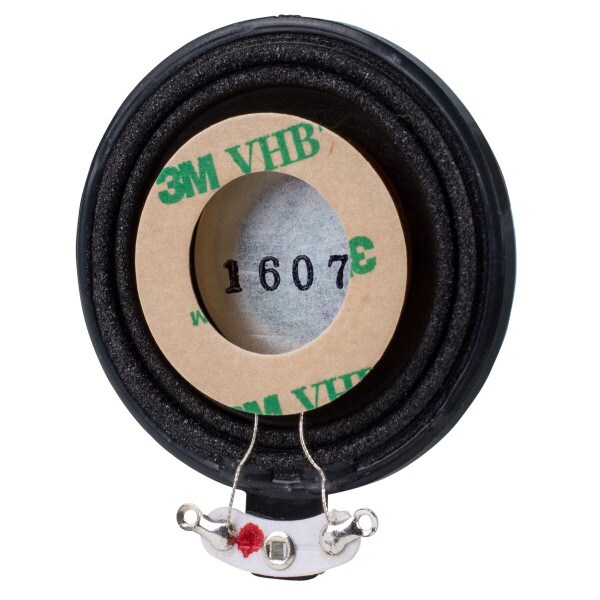

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Specifications: • Power handling: 10 watts RMS • VCdia: 25 mm • Nominal impedance: 4 ohms • Re: 3.6 ohms • Le: 0.07 mH • Fs (uncoupled): 306 Hz • Dimensions: 1.89" (48 mm) dia. x 0.59" (15 mm) H • Adhesive dimensions: 1.06" (27 mm) outside diameter • Weight: 74.6 grams.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Product Details

BrandDayton Audio
ModelDAEX25CT-4
Part Number295-220
UPC848791000973
Unit of MeasureEach
Weight0.2

Product Specifications

ApplicationFull-Range Exciter
Power Handling (RMS)10 Watts
Impedance4Ω
