Dayton Audio DA40T 40W 70V Tabletop Mixer-Amplifier with (6) 8" Ceiling Speaker plus Tile BridgeEliminate Guess Work

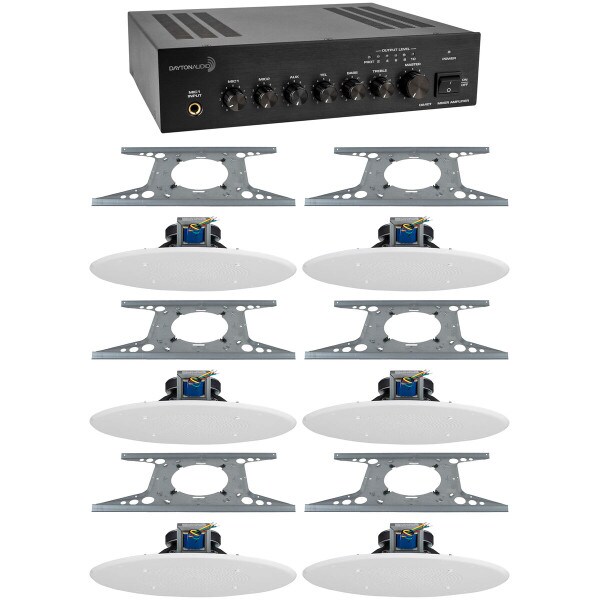

Parts Express has taken the guesswork and confusion out of commercial paging and background music installations with this incredibly affordable contractor grade all-in-one bundle. By packaging the Dayton Audio DA40T commercial amplifier, six 8" in-ceiling speakers, and six UL listed tile bridges Parts Express gives you an extremely versatile, yet powerful audio system for commercial installations.
Perfectly Paired for Installations

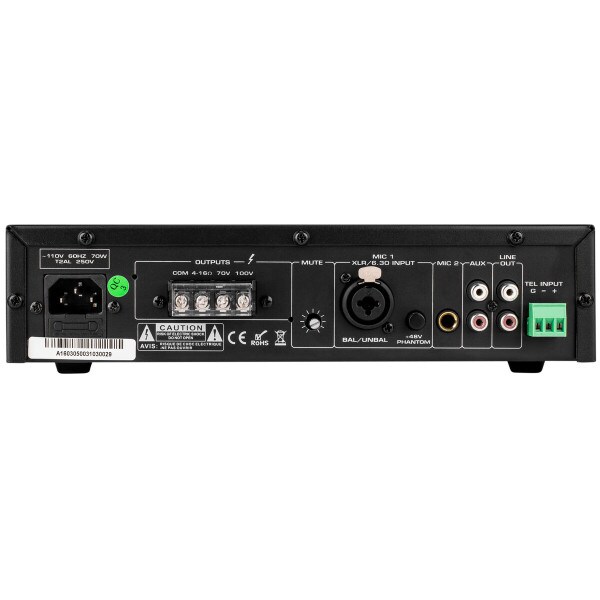

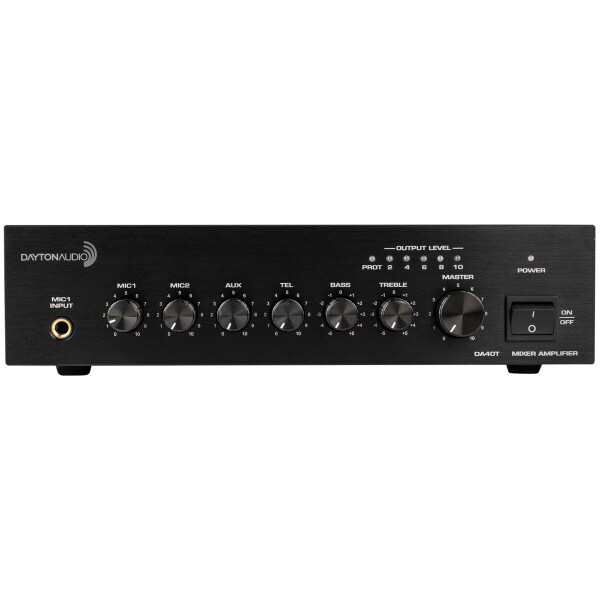

Utilizing the DA40T amp and 8" in-ceiling speakers, this bundle provides you with both a powerful yet flexible system. With 40 watts of power, the DA40T is a workhorse of a commercial amp. Both 70/100 volt and 4-16 compatibility allow the amp to be used with both 70 volt speakers as well as residential 8 ohm speakers. The amp features one 1/4" XLR/TRS jack, one RCA AUX connection, and terminal block telephone inputs to allow you to connect a variety of sources. Priority music muting allows you to temporarily duck background music while paging which makes speech intelligibility much clearer. The easy-to-use design amp cuts installation time which makes it simple to integrate into a current system or to design a new system around.

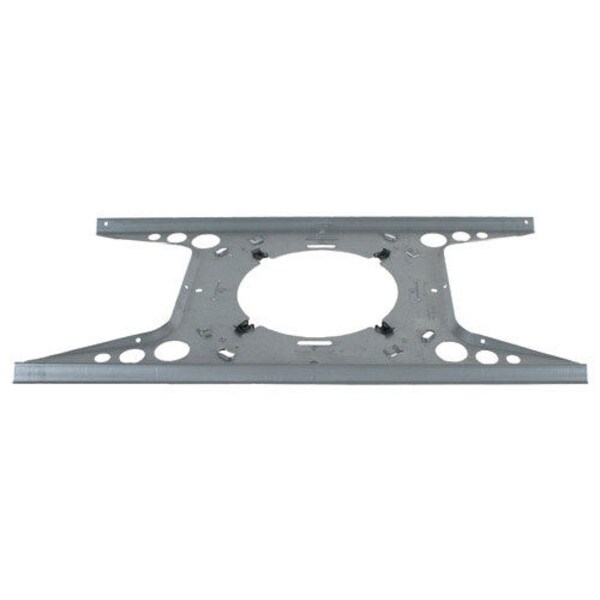

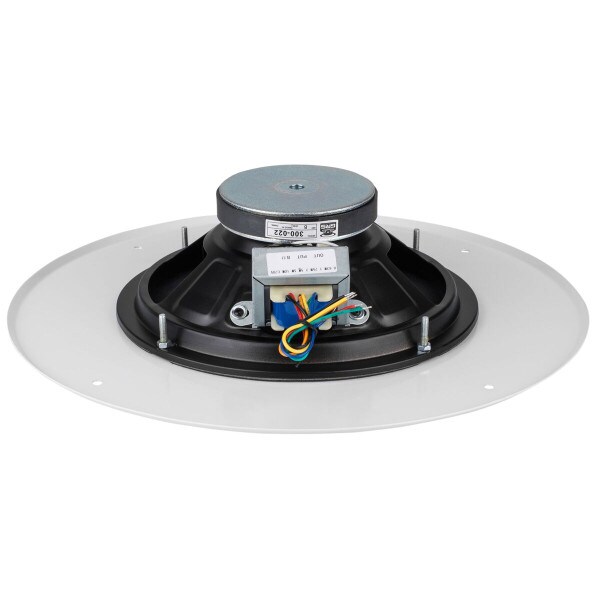

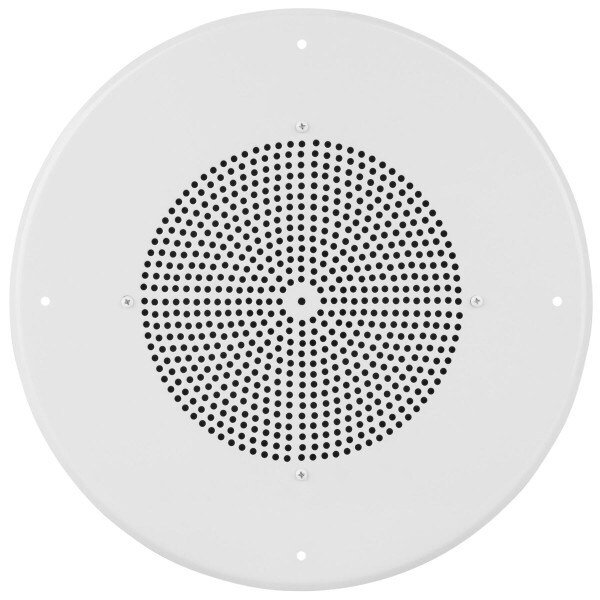

With six 8" full range in-ceiling speakers, Parts Express gives you ideal loudspeakers for paging, background music, and fire signaling. The speakers produce a full range sound with wide dispersion for maximum coverage area. The built-in 70 volt transformer is perfect for use with the DA40T amp. The bundle includes a UL listed tile bridge for each speaker. The Fourjay PB8 is constructed from heavy duty galvanized steel which easily supports the speakers for assembly in suspended acoustic tile ceilings.
Flexible and Easy to Install
With this bundle you can count on a high-performing, flexible, and simple audio system that works great for commercial install applications. Parts Express provides you with the essential components for the backbone of background music and paging system perfect for schools, hospitals, retail stores, warehouses, and restaurants. Parts Express has taken out compatibility guesswork to ensure that you get the highest quality components for your next install at the absolute best prices.
Amplifier Specifications: • Maximum power output: 40W (1% THD) • Speaker output: 70V, 100V, 4 -16 ohm (mono, not to be used with mixed impedance loads) • Frequency response: 80 - 16,000 Hz • Mic input sensitivity/impedance: 5 mV, 1000 ohms • Aux input sensitivity/impedance: 350mV, 10k ohms • Tel input sensitivity/impedance: 350mV, 10k ohms • Phantom power: +48V, switchable • Power input: 110 VAC, 60 Hz • Maximum power consumption: 70W • Dimensions: 10.87" W x 9.65" D x 2.76" H (276 x 245 x 70 mm) • Weight: 9.92 lbs. (4.5 kg).
Speaker Specifications: • Type: 8" full-range, in-ceiling • Magnet: 12 oz. ceramic • Voice coil: 1" aluminum • Frequency response: 45-15,000 Hz • Transformer taps: 0.63, 1.25, 2.5, 5, 10W • Mounting holes: 11.25" CTC • Cutout dimensions: 8.27" • Dimensions: 12.9" OD x 2.95" D.
Tile Bridge Specifications: • Inside cutout diameter: 7.5" • 14" W x 23-3/4" L • Screw holes: 9-1/8" and 11-1/4" diameter circles.
Constant Voltage (70-Volt) Audio Systems
Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
