  • Dayton Audio DA215-8 8" Aluminum Cone Woofer

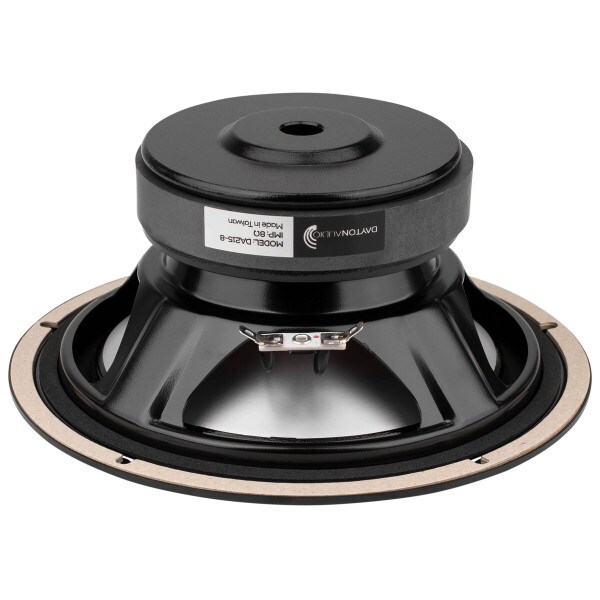

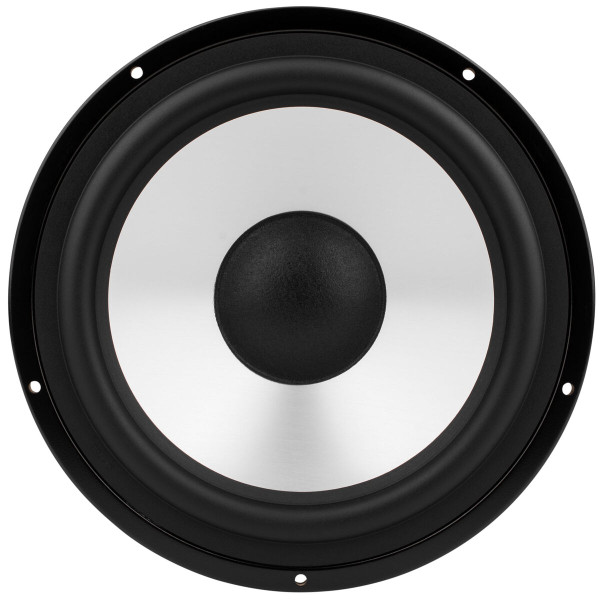

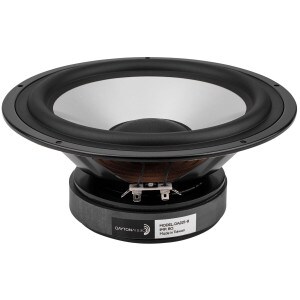

Dayton Audio DA215-8 8" Aluminum Cone Woofer

Dayton AudioPart # 295-332
Model: DA215-8
The aluminum cone on this driver is extremely rigid yet well damped, making the bass and midbass region very clean and low in distortion.

Key Features

  • Great looking and sounding woofer
  • One-piece aluminum cone
  • Cosmetic stamped steel frame
  • Flat frequency response in passband region
  • Impressive output capabilities when used in MTM designs
  • Very low distortion
Your Price: $51.98
MSRP: $66.99
Save $15.01 (22%)
Bulk Pricing
Quantity:Qty: 1-3 $51.98/ea
Quantity:Qty: 4+ $48.69/ea
In Stock
Get Notified When Available

We'll send you an email when Dayton Audio DA215-8 8" Aluminum Cone Woofer is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DA215-8 8" Aluminum Cone Woofer

The aluminum cone on this driver is extremely rigid yet well damped, making the bass and midbass region very clean and low in distortion. When used with a well-designed crossover, an extremely flat frequency response can be achieved that is clean well into the midrange region.

Product Details

BrandDayton Audio
ModelDA215-8
Part Number295-332
UPC844632087691
Unit of MeasureEach
Weight5.4

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter8.13
Power Handling (RMS)60 Watts
Power Handling (MAX)120 Watts
Impedance8Ω
Frequency Response35 to 8,000Hz
Sensitivity88.7dB 2.83V/1m
Voice Coil Diameter1.42"

Thiele-Small Parameters

Resonant Frequency (Fs)34.9Hz
DC Resistance (Re)6.8Ω
Voice Coil Inductance (Le)1.44mH
Mechanical Q (Qms)1.95
Electromagnetic Q (Qes)0.45
Total Q (Qts)0.37
Compliance Equivalent Volume (Vas)1.51ft³
Mechanical Compliance of Suspension (Cms)0.68mm/N
BL Product (BL)10T·m
Diaphragm Mass Inc. Airload (Mms)30.3g
Maximum Linear Excursion (Xmax)5.3mm
Surface Area of Cone (Sd)211.2cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.5"
Baffle Cutout Diameter7.09"
Depth3.72"
# Mounting Holes5

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.35ft³
Sealed F387Hz
Vented Volume0.97ft³
Vented F343Hz
