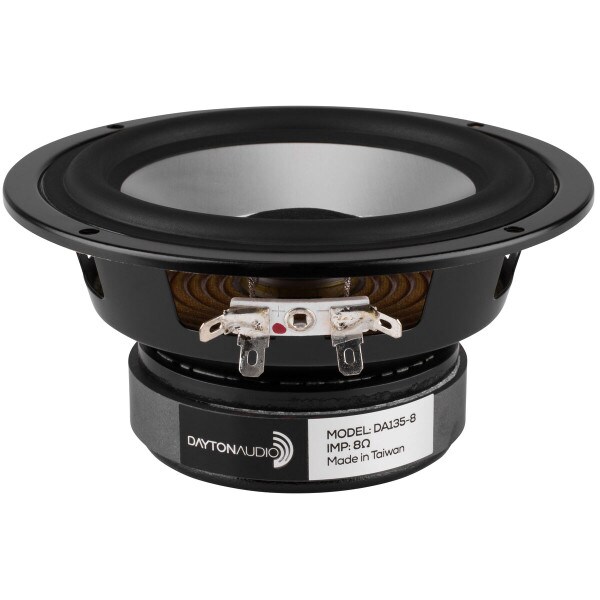

Dayton Audio DA135-8 5-1/4" Aluminum Cone Woofer

Read 27 Reviews | 19 Questions, 61 Answers or

Dayton Audio

Part #295-330

Dayton Audio DA135-8 5-1/4" Aluminum Cone Woofer

Dayton Audio

Part #295-330

Read 27 Reviews | 19 Questions, 61 Answers or

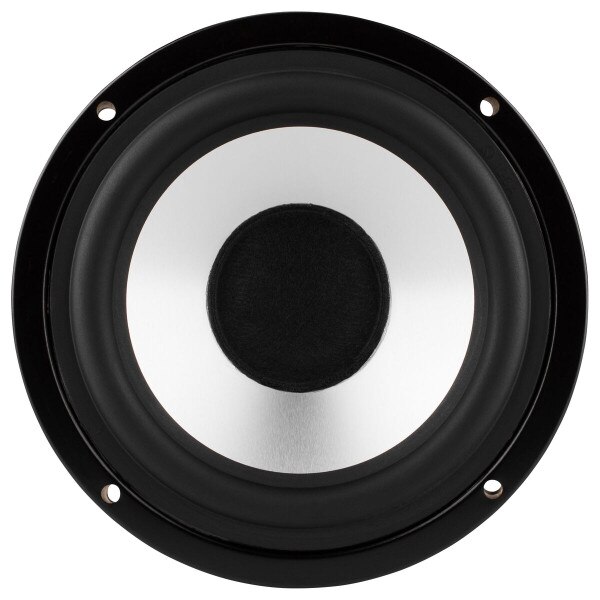

5-1/4" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap.

Key Features

Makes a great studio monitor speaker
Aluminum cone offers a flat frequency response
Cosmetically appealing integrated trim ring
Very low distortion driver

See all items in Woofers

Your Price: $24.98

MSRP: $38.99

Bulk Pricing

Quantity:Qty: 1-3	$24.98/ea
Quantity:Qty: 4+	$22.48/ea

Ships next business day. Details

In Stock

Get Notified When Available

We'll send you an email when Dayton Audio DA135-8 5-1/4" Aluminum Cone Woofer is back in stock or available for preorder.

Qty Quantity:

Free Shipping available on orders over $49.00 in the US. Details

60 Day No Hassle Return Policy

Product Details
Brand	Dayton Audio
Model	DA135-8
Part Number	295-330
UPC	844632000294
Unit of Measure	Each
Weight	1.97

Product Details

Brand

Dayton Audio

Model

DA135-8

Part Number

295-330

UPC

844632000294

Unit of Measure

Each

Weight

1.97

Product Specifications
Nominal Diameter	5-1/4"
Bolt Circle Diameter	4.96
Power Handling (RMS)	30 Watts
Power Handling (MAX)	60 Watts
Impedance	8Ω
Frequency Response	50 to 15,000Hz
Sensitivity	85dB 2.83V/1m
Voice Coil Diameter	1"

Product Specifications

Nominal Diameter

5-1/4"

Bolt Circle Diameter

4.96

Power Handling (RMS)

30 Watts

Power Handling (MAX)

60 Watts

Impedance

8Ω

Frequency Response

50 to 15,000Hz

Sensitivity

85dB 2.83V/1m

Voice Coil Diameter

Thiele-Small Parameters
Resonant Frequency (Fs)	56.5Hz
DC Resistance (Re)	6.4Ω
Voice Coil Inductance (Le)	0.97mH
Mechanical Q (Qms)	2.61
Electromagnetic Q (Qes)	0.68
Total Q (Qts)	0.54
Compliance Equivalent Volume (Vas)	0.26ft³
Mechanical Compliance of Suspension (Cms)	0.93mm/N
BL Product (BL)	5.32T·m
Diaphragm Mass Inc. Airload (Mms)	8.54g
Maximum Linear Excursion (Xmax)	3mm
Surface Area of Cone (Sd)	75.4cm²

Thiele-Small Parameters

Resonant Frequency (Fs)

56.5Hz

DC Resistance (Re)

6.4Ω

Voice Coil Inductance (Le)

0.97mH

Mechanical Q (Qms)

2.61

Electromagnetic Q (Qes)

0.68

Total Q (Qts)

0.54

Compliance Equivalent Volume (Vas)

0.26ft³

Mechanical Compliance of Suspension (Cms)

0.93mm/N

BL Product (BL)

5.32T·m

Diaphragm Mass Inc. Airload (Mms)

8.54g

Maximum Linear Excursion (Xmax)

3mm

Surface Area of Cone (Sd)

75.4cm²

Materials of Construction
Cone Material	Aluminum
Surround Material	Rubber
Voice Coil Wire Material	Copper
Voice Coil Former	Aluminum
Basket / Frame Material	Steel
Magnet Material	Ferrite

Materials of Construction

Cone Material

Aluminum

Surround Material

Rubber

Voice Coil Wire Material

Copper

Voice Coil Former

Aluminum

Basket / Frame Material

Steel

Magnet Material

Ferrite

Mounting Information
Overall Outside Diameter	5.31"
Baffle Cutout Diameter	4.39"
Depth	2.48"
# Mounting Holes	4

Mounting Information

Overall Outside Diameter

5.31"

Baffle Cutout Diameter

4.39"

Depth

2.48"

# Mounting Holes

Parts Express Staff Recommended Enclosure Volume
Sealed Volume	0.12ft³
Sealed F3	98Hz
Vented Volume	0.38ft³
Vented F3	45Hz

Parts Express Staff Recommended Enclosure Volume

Sealed Volume

0.12ft³

Sealed F3

98Hz

Vented Volume

0.38ft³

Vented F3

45Hz
