Dayton Audio CSK658 6-1/2" Plenum Speaker Kit Pair with Wire
$167.98
Ships next business day. Details
Free Shipping available on orders over in the US. Details
60 Day No Hassle Return PolicyOverview

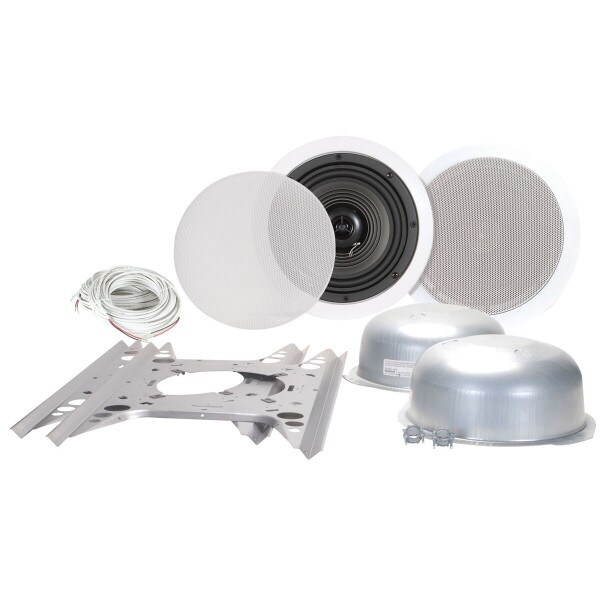

Install ceiling speakers in schools, offices and institutions in compliance with fire codes and the NEC. The key to this system is the UL listed protective metal enclosure that contains the speaker within the plenum space. The metal enclosure locks into place in the metal ceiling bridge that supports the metal enclosure from the ceiling T-bars for added installation safety. When used with the supplied plenum rated speaker cable, this system meets UL 2043 specifications. The speaker features a 6-1/2" carbon fiber cone with a butyl rubber surround, a coaxial mounted 1" mylar dome tweeter. To ease installation the speaker has removable steel mesh grills, built-in mounting brackets, hardware, and installation instructions.
Specifications: • Power handling: 30 watts RMS/45 watts max • Impedance: 8 ohms • Frequency response: 60-20,000 Hz • SPL: 89 dB 1W/1m • Dimensions: 8-1/2" dia. x 2-3/4" D • Cutout size: 7-3/8" dia. • Sold in pairs.
Constant Voltage (70-Volt) Audio Systems
Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
