  • Dayton Audio 0.56mH 16 AWG Copper Foil Inductor Crossover Coil

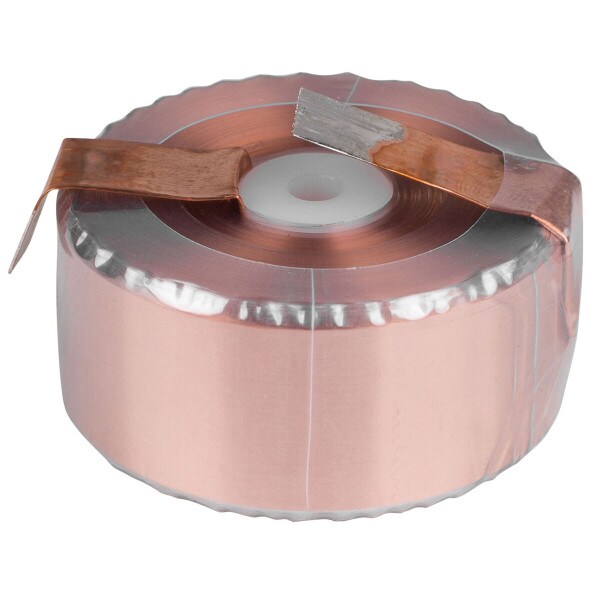

Dayton Audio 0.56mH 16 AWG Copper Foil Inductor Crossover Coil

Dayton AudioPart # 257-620
Model: CF16-56
Dayton Audio 16 gauge copper foil inductors are for those of us who demand the very best in audio components. Copper foil inductors offer better heat dissipation, reduced voltage stress, and greater mechanical strength than round-wire inductors.

Key Features

  • Refined copper foil for better heat dissipation and mechanical strength
  • Superior inductive properties versus round-wire inductors
  • Simply the ideal inductor
  • 350 watts RMS power handling
Your Price: $23.98
MSRP: $31.99
Save $8.01 (25%)
Bulk Pricing
Quantity:Qty: 1-9 $23.98/ea
Quantity:Qty: 10+ $22.37/ea
41 In Stock
Get Notified When Available

We'll send you an email when Dayton Audio 0.56mH 16 AWG Copper Foil Inductor Crossover Coil is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio 0.56mH 16 AWG Copper Foil Inductor Crossover Coil

Dayton Audio 16 gauge copper foil inductors are for those of us who demand the very best in audio components. Features highly refined copper foil precision wound with an ultra-thin insulator. Copper foil inductors are the “ideal" inductor offering superior inductive properties than round-wire inductors.

Copper foil inductors offer better heat dissipation, reduced voltage stress and greater mechanical strength than round wire inductors. Consider Dayton Audio copper foil inductors when a “no compromise" crossover is desired.

Specifications: • Inductance: 0.56 mH • DC resistance: 0.26 • Wire gauge: 16 AWG • Core type: Copper foil • Tolerance: ±3% • Power handling: 350 watts RMS • Dimensions: 1.89" Ø x 0.94" H (48 x 24 mm).

Copper quality/purity: The copper used in all Dayton Audio inductors, both wire and foil based, is a minimum of 99.9% pure, providing 100% conductivity. The oxygen component of the copper is between 0.02% and 0.04%.

Technical note: To prevent crosstalk and noise position inductors in crossovers at right angles to each other.

Product Details

BrandDayton Audio
ModelCF16-56
Part Number257-620
UPC848791003226
Unit of MeasureEach
Weight0.43

Product Specifications

DCR0.26Ω
Inductance0.56mH
Inductor TypeCopper Foil
Wire Gauge16
