Model: CE65W-8
The economical, compact CE65W-8 extended-range woofer from Dayton Audio features a woven glass-fiber cone, rubber surround, and ferrite magnet motor assembly with shielding magnet. It offers great performance in a variety of small music-oriented audio systems.
Key Features
  • Usable as a full-range driver or small woofer
  • Woven glass fiber cone for excellent sonic detail
  • Robust, compact design
  • Shielded magnet for use near sensitive electronic parts
Your Price: $8.49
MSRP: $11.99
Save $3.50 (29%)
Bulk Pricing
Quantity:Qty: 1-3 $8.49/ea
Quantity:Qty: 4+$7.64/ea
Ships next business day. Details

118In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio CE Series CE65W-8 2-1/2" Shielded Extended Range Speaker Driver 8 Ohm

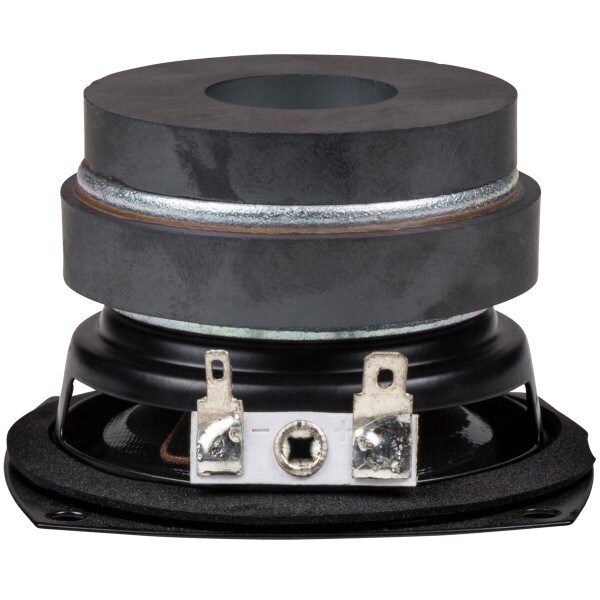

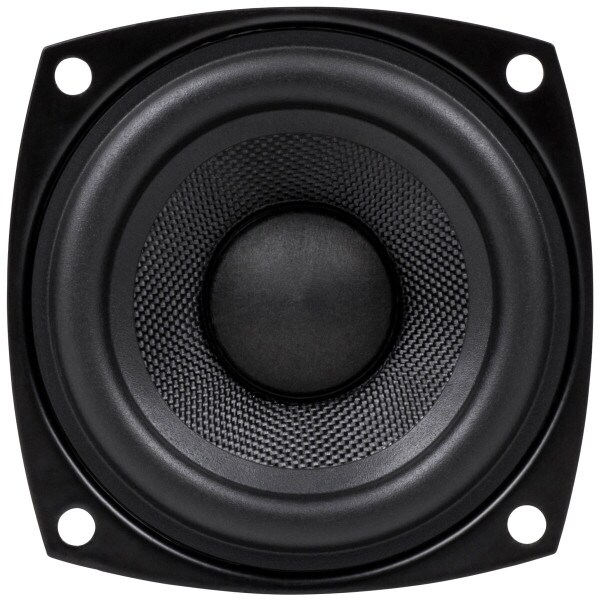

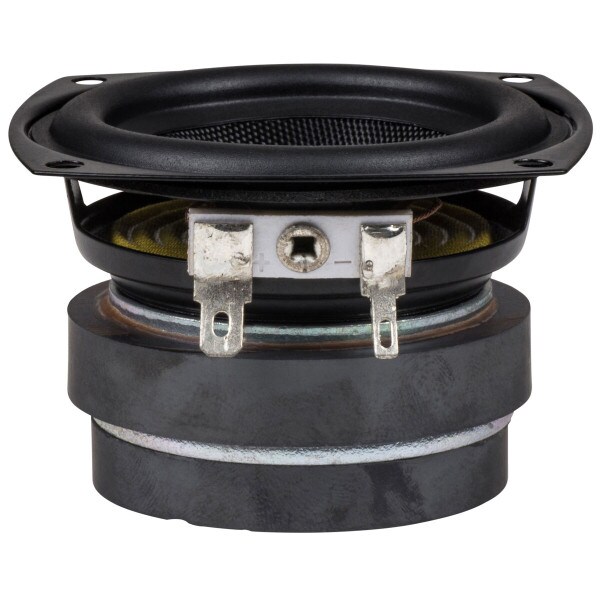

Dayton Audio's CE65W-8 2-1/2" shielded extended range driver excels in wide-range speaker or "mini-woofer" applications. The woven fiberglass cone and rubber surround provide a wide operating frequency range, enabling this driver to be used as either a woofer or full-range driver. Its bucking magnet provides video shielding for operation near legacy CRT monitors without causing magnetic interference, and the stamped frame and cotton spider ensure reliable, properly aligned operation for years. It is the perfect choice for multimedia applications, line arrays, or compact hi-fi loudspeakers.

The Commercial Engineering (CE) Series drivers from Dayton Audio provide engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects. Multiple types and styles are available within the CE Series family of drivers, to suit a wide spectrum of engineering requirements.

Product Details

BrandDayton Audio
ModelCE65W-8
Part Number285-143
UPC848791001888
Unit of MeasureEach
Weight0.6

Product Specifications

Nominal Diameter2-1/2"
Power Handling (RMS)7 Watts
Power Handling (MAX)15 Watts
Impedance8Ω
Frequency Response105 to 16,000Hz
Sensitivity83dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)105Hz
DC Resistance (Re)6.9Ω
Voice Coil Inductance (Le)0.51mH
Mechanical Q (Qms)3.85
Electromagnetic Q (Qes)1.34
Total Q (Qts)0.99
Compliance Equivalent Volume (Vas)0.02ft³
Mechanical Compliance of Suspension (Cms)0.91mm/N
BL Product (BL)2.73T·m
Diaphragm Mass Inc. Airload (Mms)1.91g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)21.24cm²

Materials of Construction

Cone MaterialFiberglass
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.28"
Baffle Cutout Diameter2.32"
Depth1.78"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.025ft³
Sealed F3109Hz
Vented Volume0.12ft³
Vented F360Hz
