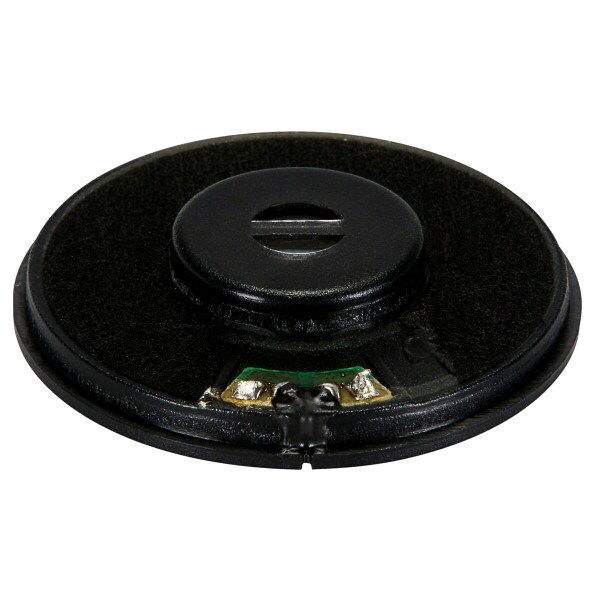

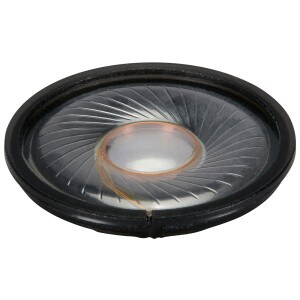

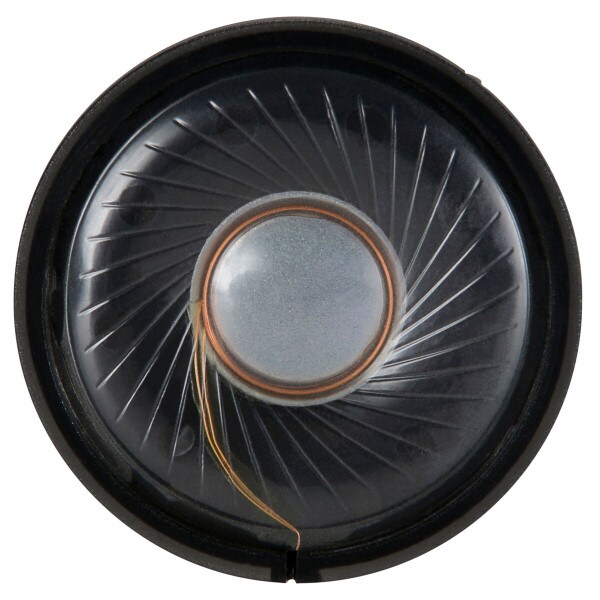

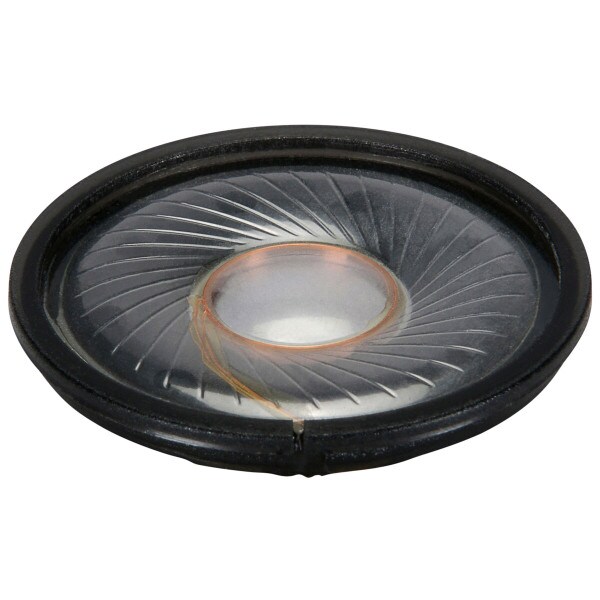

Dayton Audio CE Series CE38M-8 1-1/2" Mini Speaker Driver 8 Ohm

Dayton AudioPart # 285-129
Model: CE38M-8
Dayton Audio’s CE38M-8 is a lightweight and versatile mylar-diaphragm mini speaker with a rugged plastic frame and neodymium magnet. It’s a great choice for new design or replacement use in headphones, kiosks, electronic games, or portable electronics.

Key Features

  • Lightweight mylar diaphragm
  • Rugged molded plastic frame
  • Powerful neodymium magnet
  • Light weight, low cost
Your Price: $3.29
MSRP: $4.99
Save $1.70 (34%)
Bulk Pricing
Quantity:Qty: 1-3 $3.29/ea
Quantity:Qty: 4+ $2.96/ea
120 In Stock
Get Notified When Available

We'll send you an email when Dayton Audio CE Series CE38M-8 1-1/2" Mini Speaker Driver 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio CE Series CE38M-8 1-1/2" Mini Speaker Driver 8 Ohm

The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

The Dayton Audio CE38M-8 1-1/2” mini speaker features a feather-light and smooth-sounding Mylar diaphragm and a lightweight injection-molded plastic frame, making it great for portable electronics and headphones. The high sensitivity also enables it to be used as a speaker in kiosks, intercoms, displays, or electronic games, and the 8-ohm impedance works with most small audio amplifiers or line-level outputs. The round frame can be press-fit or glued in place.

Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

Product Details

BrandDayton Audio
ModelCE38M-8
Part Number285-129
UPC848791001093
Unit of MeasureEach
Weight0.02

Product Specifications

Nominal Diameter1-1/2"
Power Handling (RMS)0.25 Watts
Power Handling (MAX)0.5 Watts
Impedance8Ω
Frequency Response190 to 20,000Hz
Sensitivity75dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)191.8Hz
DC Resistance (Re)7.72Ω
Voice Coil Inductance (Le)0.17mH
Mechanical Q (Qms)1.59
Electromagnetic Q (Qes)4.45
Total Q (Qts)1.17
Mechanical Compliance of Suspension (Cms)9.68mm/N
BL Product (BL)0.39T·m
Maximum Linear Excursion (Xmax)0.1mm
Surface Area of Cone (Sd)4.9cm²

Materials of Construction

Cone MaterialPoly / Mylar Diaphragm
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter1.65"
Baffle Cutout Diameter1.45"
Depth0.3"
