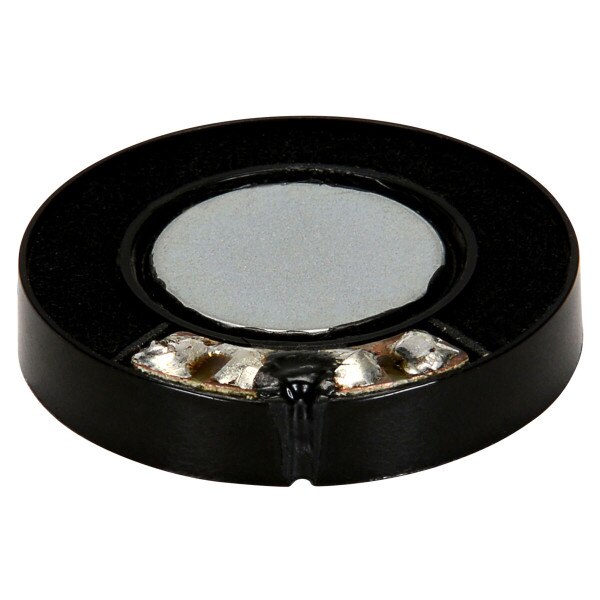

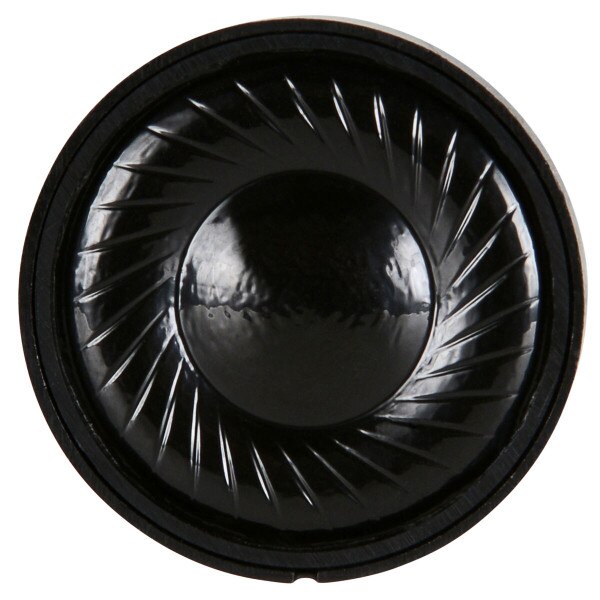

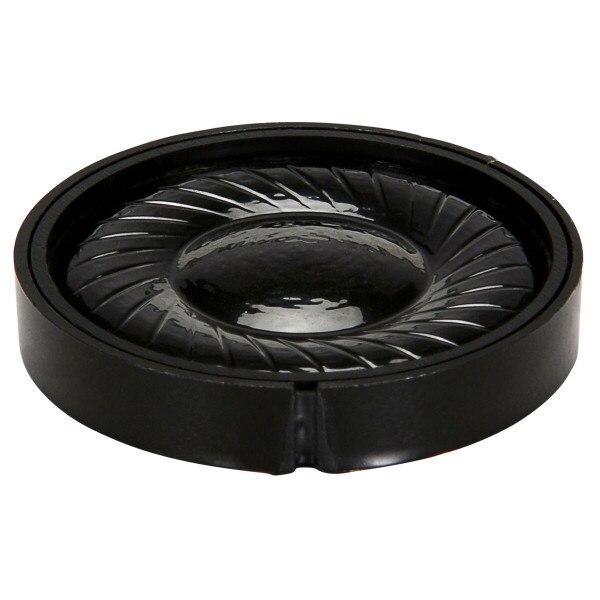

Dayton Audio CE Series CE30MB-16B 1-1/4" Mini Speaker Driver Black 16 Ohm

Dayton AudioPart # 285-135
Model: CE30MB-16B
The Dayton Audio CE30MB-16B is a compact headphone-style mini speaker with a black Mylar diaphragm and 16 ohm impedance.

Key Features

  • Lightweight headphone-style mylar diaphragm
  • Rugged plastic frame with raised edge for mounting
  • Powerful neodymium magnet
  • Suitable for headphone applications
Your Price: $2.98
MSRP: $3.99
Save $1.01 (25%)
Bulk Pricing
Quantity:Qty: 1-3 $2.98/ea
Quantity:Qty: 4+ $2.68/ea
65 In Stock
Get Notified When Available

We'll send you an email when Dayton Audio CE Series CE30MB-16B 1-1/4" Mini Speaker Driver Black 16 Ohm is back in stock or available for preorder.

Order in the next 13 hr 30 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio CE Series CE30MB-16B 1-1/4" Mini Speaker Driver Black 16 Ohm

The Commercial Engineering (CE) series of speaker drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

The Dayton Audio CE30MB-16B is a compact, high-efficiency "headphone-style" mini speaker with a lightweight Mylar diaphragm and extended frequency range. It’s a rugged choice for adding audio to inexpensive headphones, electronic toys, and portable electronics.

Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

Product Details

BrandDayton Audio
ModelCE30MB-16B
Part Number285-135
UPC848791001116
Unit of MeasureEach
Weight0.01

Product Specifications

Nominal Diameter1"
Power Handling (RMS)0.5 Watts
Power Handling (MAX)1 Watts
Impedance16Ω
Frequency Response400 to 20,000Hz
Sensitivity77dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)401Hz
DC Resistance (Re)15.7Ω
Voice Coil Inductance (Le)1.35mH
Mechanical Q (Qms)2.55
Electromagnetic Q (Qes)5.28
Total Q (Qts)1.72
Compliance Equivalent Volume (Vas)0.0014ft³
Mechanical Compliance of Suspension (Cms)3.23mm/N
BL Product (BL)0.6T·m
Maximum Linear Excursion (Xmax)0.1mm
Surface Area of Cone (Sd)3.1cm²

Materials of Construction

Cone MaterialPoly / Mylar Diaphragm
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter1.17"
Baffle Cutout Diameter1.04"
Depth0.2"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.000665ft³
Sealed F3464.5Hz
Vented Volume0.0239ft³
Vented F3261.1Hz
