Dayton Audio CE Series CE140-30S-8 1" x 5" Extended Range Speaker Driver 8 Ohm

Dayton AudioPart # 285-145
Model: CE140-30S-8

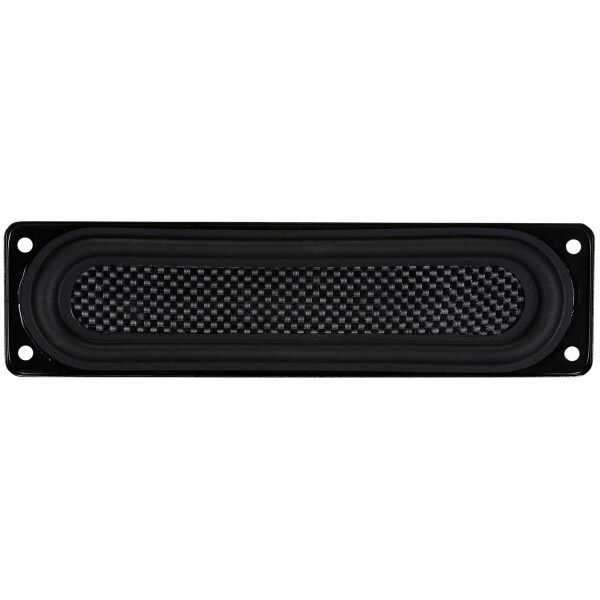

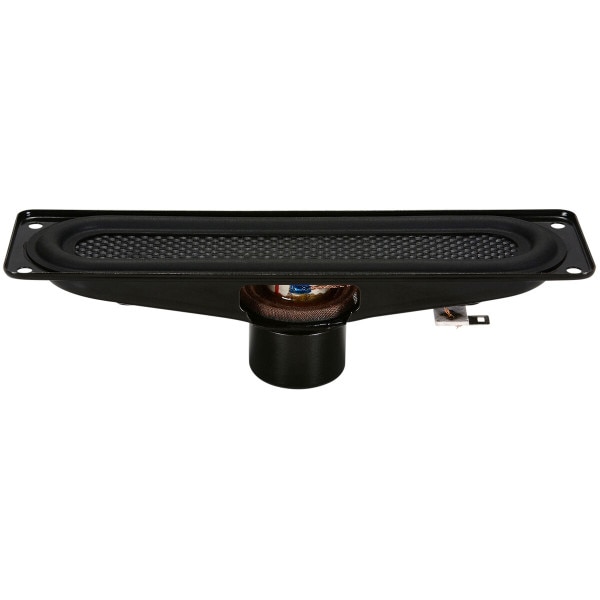

The CE140-30S-8 by Dayton Audio is a 1" x 5" tall-aspect-ratio extended range driver with a flat sandwich-construction diaphragm and a compact neodymium motor, for applications requiring a very narrow format yet wide-bandwidth driver.

Key Features

  • Tall aspect ratio flat diaphragm for wide dispersion
  • Compact neodymium magnet structure
  • Low profile stamped steel frame
  • Copper voice coil on vented Kapton former
  • Suitable as a mid-woofer or extended range driver
Your Price: $14.79
MSRP: $19.99
Save $5.20 (26%)
Bulk Pricing
Quantity:Qty: 1-3 $14.79/ea
Quantity:Qty: 4+ $13.44/ea
778 In Stock
Get Notified When Available

We'll send you an email when Dayton Audio CE Series CE140-30S-8 1" x 5" Extended Range Speaker Driver 8 Ohm is back in stock or available for preorder.

Order in the next 15 hr 31 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio CE Series CE140-30S-8 1" x 5" Extended Range Speaker Driver 8 Ohm

The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

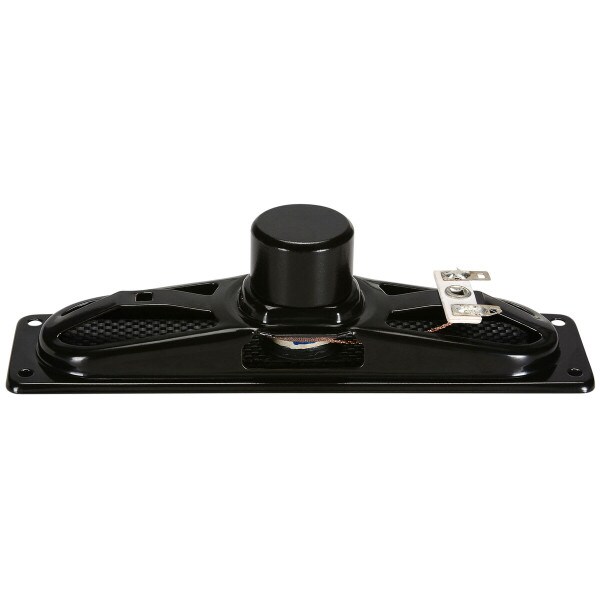

The Dayton Audio CE140-30S-8 is a 1" x 5" driver for applications requiring a narrow format, yet wide bandwidth. The flat diaphragm uses a sandwich construction composed of woven glass fiber skins over a paper honeycomb core, for an excellent combination of stiffness and damping – often difficult to achieve in a flat diaphragm. The compact neodymium motor provides long-throw performance in a small form factor, enabling the driver frame to be only 1.4" wide.

The rugged, low-profile stamped steel frame features screw mounting holes for simplified installation. Use the CE140-30S-8 as a wide-bandwidth driver, or as a narrow-format midwoofer driver for high-fidelity music.

Product Details

BrandDayton Audio
ModelCE140-30S-8
Part Number285-145
UPC848791001161
Unit of MeasureEach
Weight0.19

Product Specifications

Nominal Diameter1 x 5"
Power Handling (RMS)10 Watts
Power Handling (MAX)20 Watts
Impedance8Ω
Frequency Response100 to 8,500Hz
Sensitivity76dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)105Hz
DC Resistance (Re)7.75Ω
Voice Coil Inductance (Le)0.78mH
Mechanical Q (Qms)4.64
Electromagnetic Q (Qes)1.35
Total Q (Qts)1.04
Mechanical Compliance of Suspension (Cms)0.47mm/N
BL Product (BL)4.34T·m
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)25.1cm²

Materials of Construction

Cone MaterialFiberglass
Surround MaterialRubber
Voice Coil FormerKapton® / Polyimide
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.4" x 1.5"
Baffle Cutout Diameter4.88" x 1.19"
Depth1.4"
# Mounting Holes4
