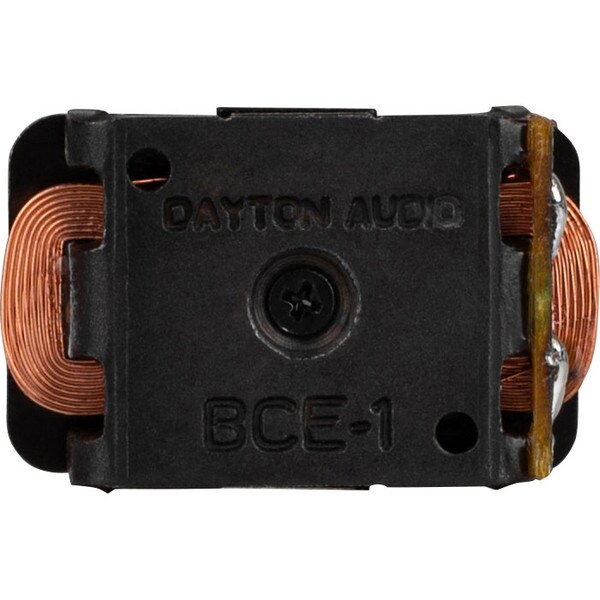

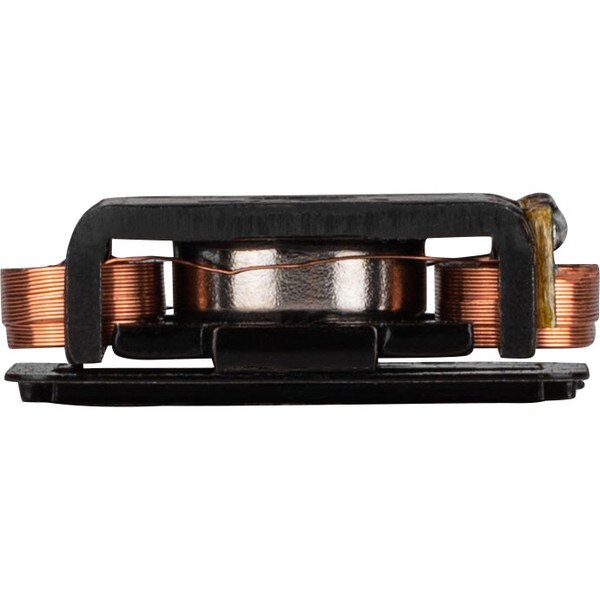

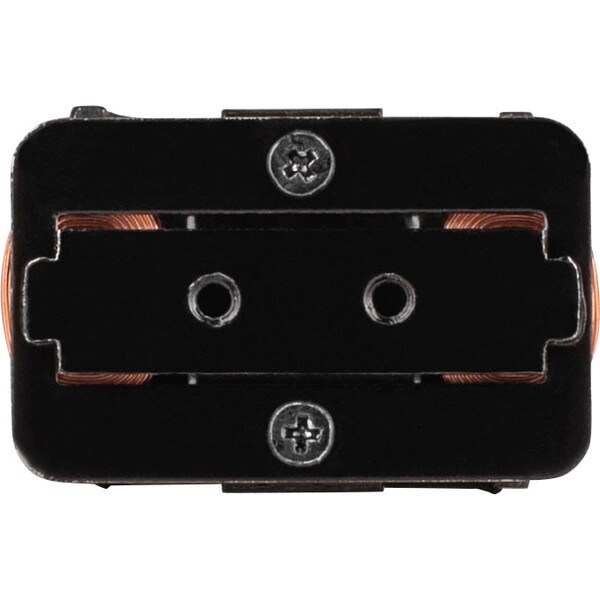

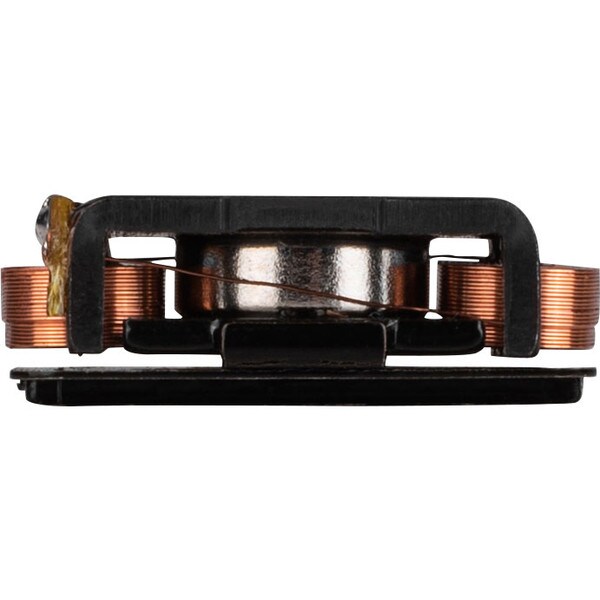

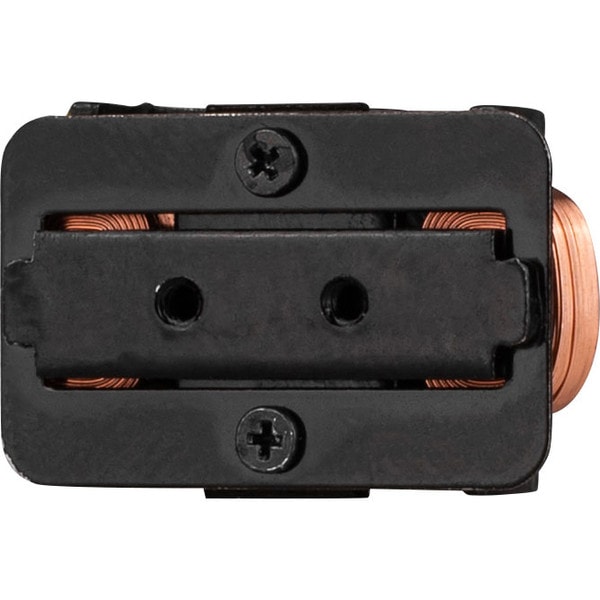

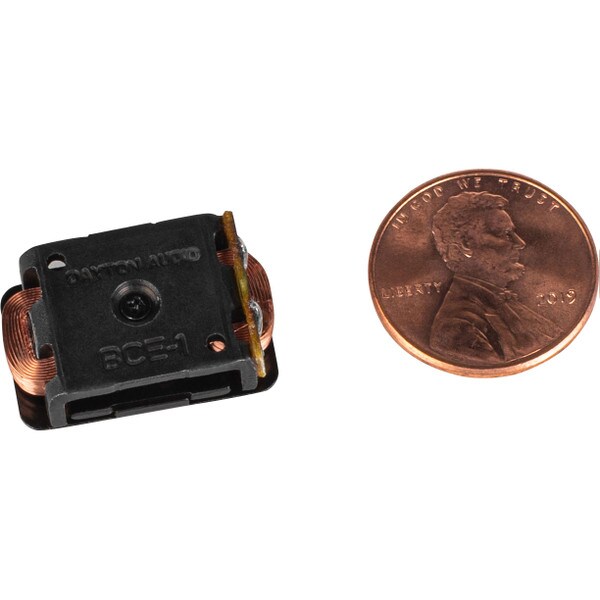

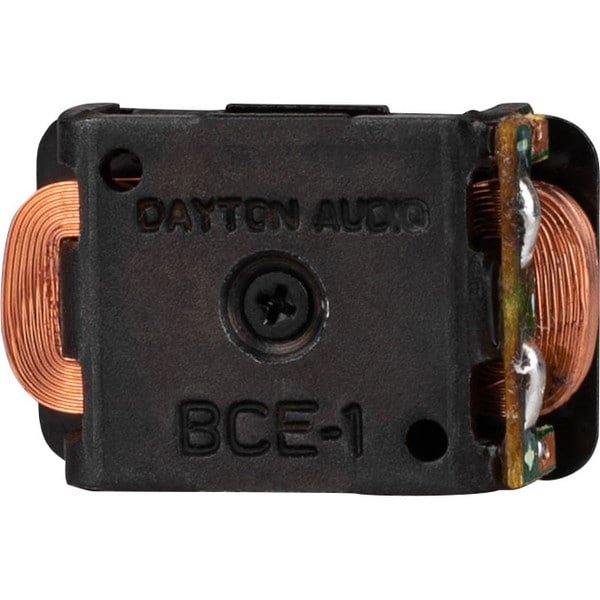

Dayton Audio Bone Conducting Audio Exciter 22 x 14mm 1W 4 Ohm BCE-1

Dayton AudioPart # 240-614
Model: BCE-1
Dayton Audio BCE exciters produce sound through direct vibration of the bones in the head or are capable of converting surfaces into speakers via vibration when placed on materials such as desks, walls, doors, and many other materials.

Key Features

  • Creates sound using bone conduction
  • Leaves ears free for increased listener safety
  • Can be used as a mini tactile transducer when attached to substrates
  • Wide 300 to 19,000 Hz frequency response
  • 4 ohm impedance with 1W power handling
Your Price: $11.19
MSRP: $14.99
Save $3.80 (25%)
Bulk Pricing
Quantity:Qty: 1-3 $11.19/ea
Quantity:Qty: 4+ $10.16/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Dayton Audio Bone Conducting Audio Exciter 22 x 14mm 1W 4 Ohm BCE-1 is back in stock or available for preorder.

Estimated back in stock 8/8/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio Bone Conducting Audio Exciter 22 x 14mm 1W 4 Ohm BCE-1

Unlike conventional transducers that use moving air to produce sound around you, Dayton Audio BCEs (bone conducting exciters) convert the electrical signal into mechanical vibrations so clean, that the brain interprets the vibrating stimulus as excellent sound. Listener's ears are left free to remain aware of their surroundings, increasing personal safety.

When used against materials such as cardboard, wood, steel, and plastics, the BCE operates much like a surface exciter, capable of moving mass to produce robust sound output; much like an invisible speaker! BCEs are excellent for unique OEM sound applications and for the experimenter, where conventional speakers and exciters cannot be used due to size constraints.

Note: The frequency response is given when used as a bone conducting transducer. This will change when attached to a substrate, and different substrate materials will have different frequency responses. Polarity is indicated by a small half-moon above the positive solder point.

Specifications: • Power handling: 1 watt RMS/2 watt max • Le: 0.56 mH • Impedance: 4 ohm • Re: 3.99 ohms • Frequency response: 300-19,000 Hz • Magnet weight: 0.49 oz. • Fs: 2,100 Hz • Dimensions (L x W x H): 0.85" x 0.57" x 0.31".

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Product Details

BrandDayton Audio
ModelBCE-1
Part Number240-614
UPC848791000508
Unit of MeasureEach
Weight0.02

Product Specifications

ApplicationFull-Range Exciter
Power Handling (RMS)1 Watts
Impedance4Ω
