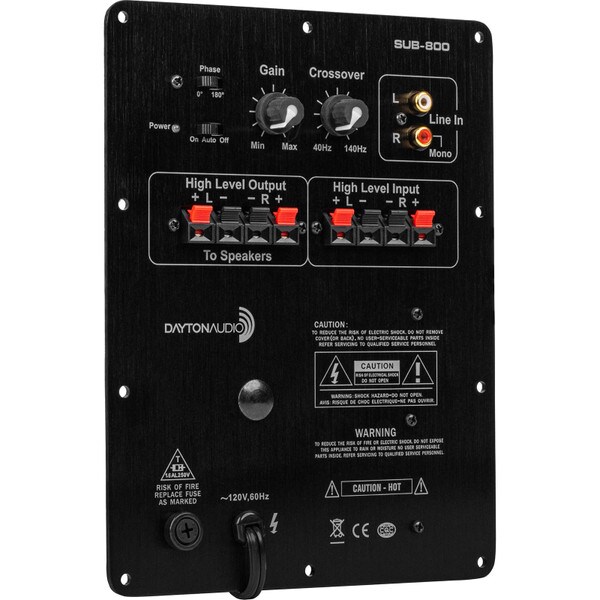

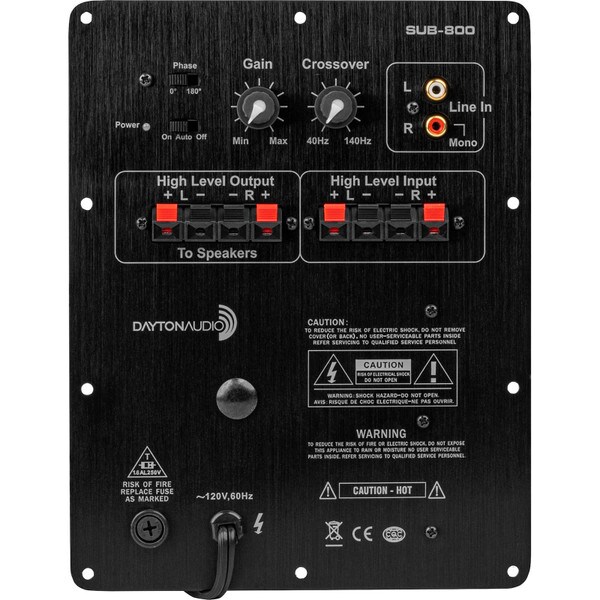

CLEARANCE 80 Watt Subwoofer Plate Amplifier with 3 dB Bass Boost at 45 Hz

Factory BuyoutsPart # 309-627
Build a budget subwoofer and rock the house with this 80 Watt subwoofer plate amplifier. Utilizing a 3 dB bass boost centered at 45 Hz, this amplifier is an ideal candidate for small sealed subwoofers.

Key Features

  • 3 dB Bass Boost @ 45 Hz
  • Mono Class AB output stage for solid, well defined output
  • Low-level and high-level inputs connect to any system
  • Manual and Auto on/off modes for compatibility with any automated system
  • Variable gain, crossover point and switchable phase controls optimize room integration
Similar items that may interest you:
Dayton Audio SPA100-D 100 Watt Class-D Subwoofer Plate Amplifier
Price: $107.98Part # 300-805
See all items in Subwoofer Plate Amplifiers
Get Notified When Available

We'll send you an email when 80 Watt Subwoofer Plate Amplifier with 3 dB Bass Boost at 45 Hz is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

80 Watt Subwoofer Plate Amplifier with 3 dB Bass Boost at 45 Hz

If you are in need of a budget subwoofer amplifier, look no further. Boasting 80 watts of output into 4 ohms with 3 dB of bass boost at 45 Hz, this amplifier its the perfect candidate for DIY subwoofer or as a replacement or upgrade amplifier to an existing subwoofer.

This amplifier includes several features not always found in this price range. These include speaker level and line level inputs, gain, crossover adjustment from 40-140 Hz, a selectable 0-180º phase switch and switchable auto-on power input.

Specifications: • Measured power output: 50 watts RMS into 8 ohms @ 0.1% THD, 80 watts RMS into 4 ohms @ < 1.0% THD • Signal to noise ratio: 96 dB A-weighted • Input impedance: 10.4K ohms • Bass boost: 3 dB @ 45 Hz • Low pass adjustment: 40 Hz to 140 Hz • Phase adjustment: 0º (normal) 180º (reverse) • Power requirements: 120VAC, 60 Hz • Dimensions: 7.125" W x 9" H x 2.5" D • Cutout dimensions: 5.75" W x 8" H.

Product Details

BrandFactory Buyouts
Part Number309-627
UPC848791008146
Unit of MeasureEach
Weight4.5
