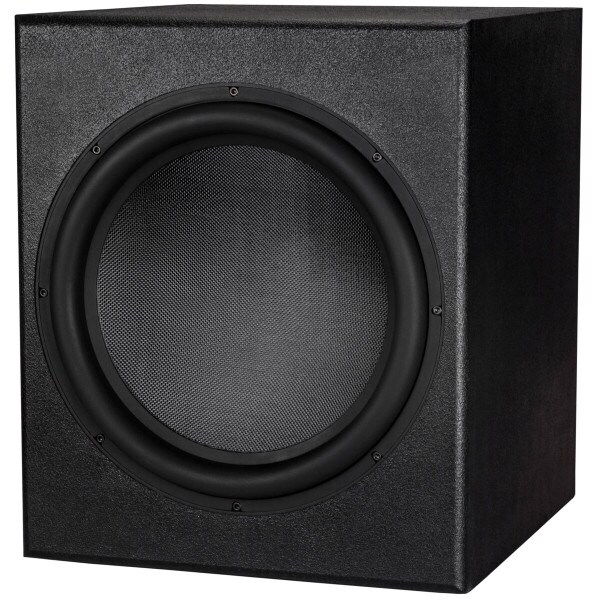

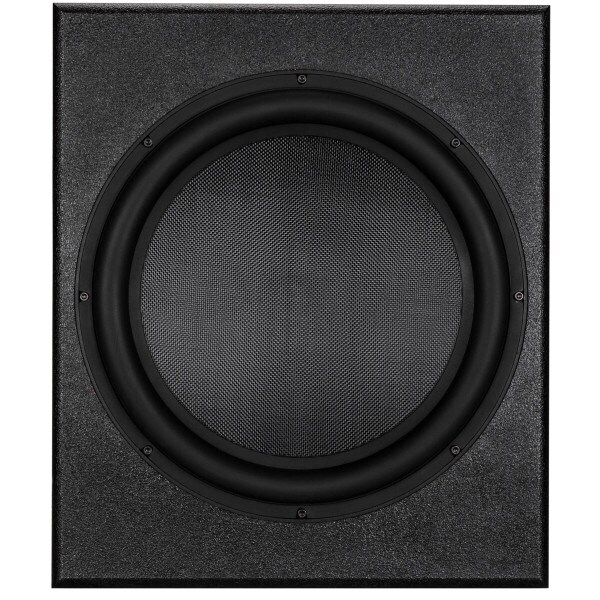

Dayton Audio 18" Ultimax Subwoofer and Cabinet Bundle 1,000 Watts
Build the ultimate subwoofer capable of moving over six liters of air with each stroke! Truly not for the faint of heart! CNC-machined subwoofer cabinet and the Dayton Audio UM18-22 18" subwoofer. The UM18-22 plays clean, low, fast, and LOUD. Designed to excel in either sealed or vented enclosures, it features an ultra-powerful triple stack of high-grade ferrite ceramic magnets for ultra-high force and exceptional control, plus dual aluminum shorting rings above and below the magnetic gap for minimized inductance, "faster"-sounding bass response, and perfect magnetic symmetry.
Features:
- 4.0 cubic foot CNC-cut cabinet made of 3/4" MDF panels with a 1-1/2" thick front baffle
- 18" driver with over 2" of total cone travel to move up to 6 liters of air
- Internal Bracing helps minimize panel resonance
- Internal dado joints for easy assembly
Customer Comments:
"Slams the lows, but still detailed and clean with the mid and high bass. Box is easy to assemble and cut accurately. Very pleased with the results. Especially considering the money spent." Rusty B ⋆⋆⋆⋆⋆
"This subwoofer is amazing! I ordered 2 of them and they blow my old Infinity 12inch and 15inch out of the water. The Infinities were ported and these of course are sealed, but the quality and depth are far superior. I'm using a Behringer NX-6000D to power them and it doesn't break a sweat!..." Gary M ⋆⋆⋆⋆⋆
Customer Projects:

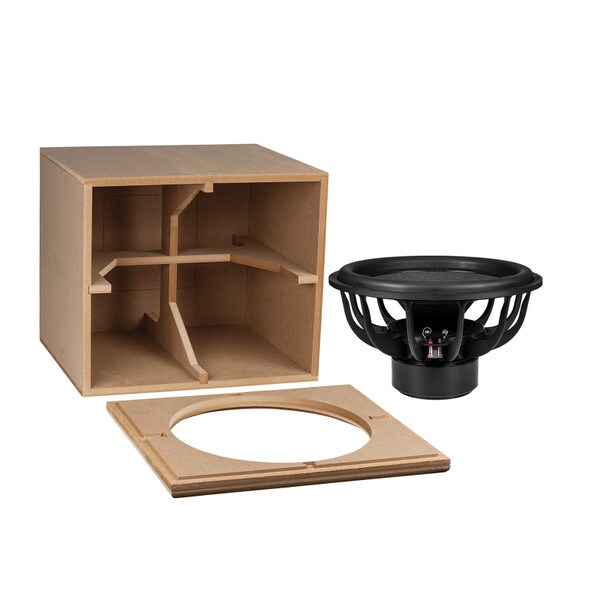

About the Cabinet
This particular cabinet is designed specifically for the Dayton Audio 18" Ultimax subwoofer, but works for any subwoofer with an overall diameter of 18-1/4" or less, and a cutout requirement of 16-3/4" or less. For optimum performance with the Ultimax 18" subwoofer, add 4lbs of Accousta-stuff polyfill for a QTC of 0.707 and an f3 of 27 htz.

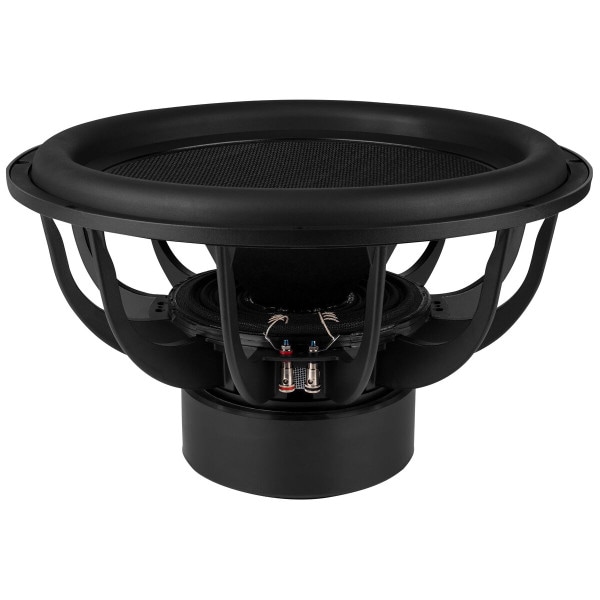

About the Driver
The UMM18-22 plays clean, low, fast, and LOUD. Designed to excel in either sealed or vented enclosures, it features an ultra-powerful triple stack of high-grade ferrite ceramic magnets for ultra-high force and exceptional control, plus dual aluminum shortening rings above and below the magnetic gap for minimized inductance, "faster" - sounding bass response, and perfect magnetic symmetry.
Kit Components:
| Part # | QTY. | Description |
| 295-518 | 1 | Dayton Audio UM18-22 18" Ultimax DVC Subwoofer 2 ohms Per Coil |
| 260-2100 | 1 | ExoHyde Pro Grade Textured Protective Speaker Cabinet Coating Quart |
| 260-115 | 1 | foamPRO 4" Textured Roller with Handle |
| 091-1245 | 1 | Dayton Audio BPA-38G HD Binding Post Pair Gold |
| 340-018 | 1 | Gorilla Wood Glue 8 oz. Bottle |
| 260-778 | 1 | Cast Frame 1/4"-20 Speaker Mounting Kit |
| 101-780 | 6ft. | Consolidated 16 AWG 2-conductor Power Speaker Wire 1 ft. (Red/Black) |
| 260-566 | 1 | Sonic Barrier Acousta-Blue Speaker Cabinet Sound Absorbing Denim 30mm x 40" x 55" (15.2 Sq. ft.) |
| - | 1 | Knock-Down MDF 4 ft³ Subwoofer Cabinet for Dayton Audio 18" Ultimax |
Specifications:
Cabinet Specifications:
- Panel Thickness: 3/4", front baffle is 1-1/2"
- Panel Material: Medium Density Fiberboard (MDF)
- Net internal cabinet volume (subtracting bracing and woofer): 3.7 ft³
- External Dimensions: 23" H x 20" W x 20.75" D
- Mounting depth (mounting baffle to brace): 11"
- Subwoofer Recess: 1/2"
- Weight: 62lbs
- Made in the USA
Woofer Specifications:
- Power Handling: 1,000 watts RMS/2,000 watts max
- Frequency response:19-500 Hz
- Impedance:4 ohms (2 ohms/coil)
- Le: 1.5 mH
- Re:4.36 ohms
- Fs:26.2 Hz
- SPL:89.5 dB 2.83V/1m
- Vas: 5.11 ft³
- Qms: 4.05
- Qes:0.85
- Qts: 0.70
- Xmas:22 mm
- Dimensions:Overall diameter: 18.24", Cutout: 16.75", Depth: 9".
Also Included with Kit
- ExoHyde Pro Grade Textured Protective Speaker Cabinet Coating Quart
- foamPRO 4" Textured Roller with Handle
- Dayton Audio Binding Post Pair
- Gorilla Wood Glue 8 oz. Bottle
- Cast Frame 1/4"-20 Speaker Mounting Kit
- Consolidated 16 AWG 2-conductor Speaker Wire 6 ft.
- Sonic Barrier Acousta-Blue Speaker Cabinet Sound Absorbing Denim 30mm x 40" x 55" (15.2 Sq. ft.)
